NcEvent Class Reference

Creation and investigation of an NCFS generic event structure. More...

#include "NcEvent.h"

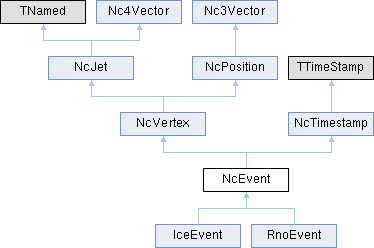

Inheritance diagram for NcEvent:

Detailed Description

Creation and investigation of an NCFS generic event structure.

---

Copyright(c) 2001 NCFS/IIHE, All Rights Reserved.                           *
                                                                            *
Authors: The Netherlands Center for Fundamental Studies (NCFS).             *
         The Inter-university Institute for High Energies (IIHE).           *
                   Website : http://www.iihe.ac.be                          *
           Contact : Nick van Eijndhoven (nickve.nl@gmail.com)              *
                                                                            *
Contributors are mentioned in the code where appropriate.                   *
                                                                            *
No part of this software may be used, copied, modified or distributed       *
by any means nor transmitted or translated into machine language for        *
commercial purposes without written permission by the IIHE representative.  *
Permission to use the software strictly for non-commercial purposes         *
is hereby granted without fee, provided that the above copyright notice     *
appears in all copies and that both the copyright notice and this           *
permission notice appear in the supporting documentation.                   *
This software is provided "as is" without express or implied warranty.      *
The authors make no claims that this software is free of error, or is       *
consistent with any particular standard of merchantability, or that it      *
will meet your requirements for any particular application, other than      *
indicated in the corresponding documentation.                               *
This software should not be relied on for solving a problem whose           *
incorrect solution could result in injury to a person or loss of property.  *
If you do use this software in such a manner, it is at your own risk.       *
The authors disclaim all liability for direct or consequential damage       *
resulting from your use of this software.                                   *

---

// Class NcEvent
// Creation and investigation of an NCFS generic event structure.
// An NcEvent can be constructed by adding NcTrack, NcVertex, NcJet
// and/or NcDevice (or derived) objects, like for instance NcCalorimeter.
//
// Addition of devices is best done via a (hierarchical) detector structure.
// Please refer to the documentation of NcDetector for further details.
//
// However, some devices intrinsically belong to the event instead of the detector
// to reflect e.g. reconstruction, filtering or selection results.
// For the latter see for instance the NcEventSelector processor.
// In general these devices are best added to the NcEvent structure itself.
//
// NcDevice (or derived) objects provide additional hit handling facilities.
// A "hit" is a generic name indicating an NcSignal (or derived) object.
// Note that NcEvent does NOT own hits; it only provides references to hits
// obtained from the various devices.
// This implies that hits should be owned by the devices themselves.
//
// The basic functionality of NcEvent is identical to the one of NcVertex.
// So, an NcEvent may be used as the primary vertex with some additional
// functionality compared to NcVertex.
//
// An NcEvent contains a weight and an event selection level to facilitate
// correct (statistical) treatment in the final scientific analysis.
// See the SetWeight(), GetWeight(), SetSelectLevel() and GetSelectLevel()
// memberfunctions for further details.
//
// To provide maximal flexibility to the user, the two modes of track/jet/vertex
// storage as described in NcJet and NcVertex can be used.
// In addition an identical structure is provided for the storage of devices
// which can be selected by means of the memberfunction SetDevCopy().
//
// a) SetDevCopy(0) (which is the default).
//    Only the pointers of the 'added' devices are stored.
//    This mode is typically used by making studies based on a fixed set
//    of devices which stays under user control or is kept on an external
//    file/tree.
//    In this way the NcEvent just represents a 'logical structure' for the
//    physics analysis.
//
//    Note :
//    Modifications made to the original devices also affect the device
//    objects which are stored in the NcEvent.
//
// b) SetDevCopy(1).
//    Of every 'added' device a private copy will be made of which the pointer
//    will be stored.
//    In this way the NcEvent represents an entity on its own and modifications
//    made to the original devices do not affect the NcDevice (or derived) objects
//    which are stored in the NcEvent.
//    This mode will allow 'adding' many different devices into an NcEvent by
//    creating only one device instance in the main programme and using the
//    Reset() and parameter setting memberfunctions of the object representing the device.
//
//    Note :
//    The copy is made using the Clone() memberfunction.
//    All devices (i.e. classes derived from TObject) have the default TObject::Clone()
//    memberfunction.
//    However, devices generally contain an internal (signal) data structure
//    which may include pointers to other objects. Therefore it is recommended to provide
//    for all devices a specific copy constructor and override the default Clone()
//    memberfunction using this copy constructor.
//    Examples for this may be seen from NcCalorimeter, NcSignal and NcDevice.
//
// See also the documentation provided for the memberfunction SetOwner().
//
// Coding example to make an event consisting of a primary vertex,
// 2 secondary vertices and a calorimeter.
// --------------------------------------------------------------
// vp contains the tracks 1,2,3 and 4 (primary vertex)
// v1 contains the tracks 5,6 and 7   (sec. vertex)
// v2 contains the jets 1 and 2       (sec. vertex)
//
//        NcEvent evt;
//
// Specify the event object as the repository of all objects
// for the event building and physics analysis.
//
//        evt.SetDevCopy(1);
//        evt.SetTrackCopy(1);
//
// Fill the event structure with the basic objects
//
//        NcCalorimeter emcal1;
//        NcCalorimeter emcal2;
//         ...
//         ... // code to fill the emcal1 and emcal2 calorimeter data
//         ...
//
//        evt.AddDevice(emcal1);
//        evt.AddDevice(emcal2);
//
//        // Assume NcTOF has been derived from NcDevice
//        NcTOF tof1;
//        NcTOF tof2;
//         ...
//         ... // code to fill the tof1 and tof2 data
//         ...
//
//        evt.AddDevice(tof1);
//        evt.AddDevice(tof2);
//
//        NcTrack* tx=new NcTrack();
//        for (Int_t i=0; i<10; i++)
//        {
//         ...
//         ... // code to fill the track data
//         ...
//         evt.AddTrack(tx);
//         tx->Reset();
//        }
//
//        if (tx)
//        {
//         delete tx;
//         tx=0;
//        }
//
// Order and investigate all the hits of all the TOF devices
//
//        TObjArray* hits=evt.GetHits("NcTOF");
//        TObjArray* orderedtofs=evt.SortHits(hits);
//        Int_t nhits=0;
//        if (orderedtofs) nhits=orderedtofs->GetEntries();
//        for (Int_t i=0; i<nhits; i++)
//        {
//         NcSignal* sx=(NcSignal*)orderedtofs->At(i);
//         if (sx) sx->Data();
//        }
//
// Order and investigate all the hits of all the calorimeter devices
//
//        TObjArray* hits=evt.GetHits("NcCalorimeter");
//        TObjArray* orderedcals=evt.SortHits(hits);
//        Int_t nhits=0;
//        if (orderedcals) nhits=orderedcals->GetEntries();
//        for (Int_t i=0; i<nhits; i++)
//        {
//         NcSignal* sx=(NcSignal*)orderedcals->At(i);
//         if (sx) sx->Data();
//        }
//
// Build the event structure (vertices, jets, ...) for physics analysis
// based on the basic objects from the event repository.
//
//        NcJet j1,j2;
//        for (Int_t i=0; i<evt.GetNtracks(); i++)
//        {
//         tx=evt.GetTrack(i);
//         ...
//         ... // code to fill the jet data
//         ...
//        }
//
//        NcVertex vp;
//        tx=evt.GetTrack(1);
//        vp.AddTrack(tx);
//        tx=evt.GetTrack(2);
//        vp.AddTrack(tx);
//        tx=evt.GetTrack(3);
//        vp.AddTrack(tx);
//        tx=evt.GetTrack(4);
//        vp.AddTrack(tx);
//
//        Float_t rp[3]={2.4,0.1,-8.5};
//        vp.SetPosition(rp,"car");
//
//        NcVertex v1;
//        tx=evt.GetTrack(5);
//        v1.AddTrack(tx);
//        tx=evt.GetTrack(6);
//        v1.AddTrack(tx);
//        tx=evt.GetTrack(7);
//        v1.AddTrack(tx);
//
//        Float_t r1[3]={1.6,-3.2,5.7};
//        v1.SetPosition(r1,"car");
//
//
//        NcVertex v2;
//        v2.SetJetCopy(1);
//        v2.AddJet(j1);
//        v2.AddJet(j2);
//
//        Float_t r2[3]={6.2,4.8,1.3};
//        v2.SetPosition(r2,"car");
//
// Specify the vertices v1 and v2 as secondary vertices of the primary
//
//        vp.SetVertexCopy(1);
//        vp.AddVertex(v1);
//        vp.AddVertex(v2);
//
// Enter the physics structures into the event
//        evt.SetVertexCopy(1);
//        evt.AddVertex(vp,0);
//
// The jets j1 and j2 are already available via sec. vertex v2,
// but can be made available also from the event itself if desired.
//        NcJet* jx;
//        jx=v2.GetJet(1);
//        evt.AddJet(jx,0);
//        jx=v2.GetJet(2);
//        evt.AddJet(jx,0);
//
//        evt.Data("sph");
//        v1.ListAll();
//        v2.List("cyl");
//
//        Float_t etot=evt.GetEnergy();
//        Nc3Vector ptot=evt.Get3Momentum();
//        Float_t loc[3];
//        evt.GetPosition(loc,"sph");
//        NcPosition r=v1.GetPosition();
//        r.Data();
//        Int_t nt=v2.GetNtracks();
//        NcTrack* tv=v2.GetTrack(1); // Access track number 1 of Vertex v2
//
//        evt.List();
//
//        Int_t nv=evt.GetNvtx();
//        NcVertex* vx=evt.GetVertex(1); // Access primary vertex
//        Float_t e=vx->GetEnergy();
//
//        Float_t M=evt.GetInvmass();
//
// Reconstruct the event from scratch
//
//        evt.Reset();
//        evt.SetNvmax(25); // Increase initial no. of sec. vertices
//        ...
//        ... // code to create tracks etc...
//        ...
//
// Note : By default all quantities are in meter, GeV, GeV/c or GeV/c**2
//        but the user can indicate the usage of a different scale for
//        the metric and/or energy-momentum units via the SetUnitScale()
//        and SetEscale() memberfunctions, respectively.
//        The actual metric and energy-momentum unit scales in use can be
//        obtained via the GetUnitScale() and GetEscale() memberfunctions.
//
//--- Author: Nick van Eijndhoven 27-may-2001 Utrecht University
//- Modified: Nick van Eijndhoven, IIHE-VUB, Brussel, January 6, 2022  21:18Z

Definition at line 14 of file NcEvent.h.

Public Member Functions
	NcEvent ()
	NcEvent (const NcEvent &evt)
	NcEvent (Int_t n)
virtual	~NcEvent ()
void	AddDevice (NcDevice &d)
void	AddDevice (NcDevice *d)
virtual TObject *	Clone (const char *name="") const
virtual void	Data (TString f="car", TString u="rad")
void	DisplayHits (TString classname, Int_t idx=1, Float_t scale=-1, Int_t dp=0, Int_t mode=1, Int_t mcol=4)
void	DisplayHits (TString classname, TString name, Float_t scale=-1, Int_t dp=0, Int_t mode=1, Int_t mcol=4)
NcPosition	GetCOG (TObjArray *hits, Int_t pos=0, TString slotname="none", Int_t mode=0) const
Double_t	GetCVAL (TObjArray *hits, TString obsname, TString weightname="none", Int_t mode=0, Int_t type=1) const
TTimeStamp	GetDayTime () const
NcDetector *	GetDetector () const
Int_t	GetDevCopy () const
NcDevice *	GetDevice (Int_t i) const
NcDevice *	GetDevice (TString name) const
TObjArray *	GetDevices (TString classname, TObjArray *devices=0)
Int_t	GetEventNumber () const
void	GetExtremes (TString classname, Float_t &vmin, Float_t &vmax, Int_t idx=1, Int_t mode=1, Int_t deadcheck=1)
void	GetExtremes (TString classname, Float_t &vmin, Float_t &vmax, TString name, Int_t mode=1, Int_t deadcheck=1)
Nc3Vector	GetHitPath (TObjArray *hits, Int_t pos=0) const
TObjArray *	GetHits (TString classname, TObjArray *hits=0, TString name="none", Int_t mode=0, Int_t opt=0)
NcDevice *	GetIdDevice (Int_t id, TObjArray *devs=0) const
NcDevice *	GetIdDevice (Int_t id, TString classname) const
NcSignal *	GetIdHit (Int_t id, TString classname)
Int_t	GetNdevices () const
Int_t	GetNdevices (TString classname, TObjArray *hits=0) const
Int_t	GetNhits (TString classname)
Int_t	GetProjectileA () const
Int_t	GetProjectileId () const
Double_t	GetProjectilePnuc () const
Int_t	GetProjectileZ () const
Int_t	GetRunNumber () const
Int_t	GetSelectLevel () const
Int_t	GetTargetA () const
Int_t	GetTargetId () const
Double_t	GetTargetPnuc () const
Int_t	GetTargetZ () const
Double_t	GetWeight () const
virtual void	HeaderData ()
void	RemoveDevice (NcDevice *d)
virtual void	Reset ()
void	SetDayTime (TDatime &stamp)
void	SetDayTime (TTimeStamp &stamp)
void	SetDetector (NcDetector *d)
void	SetDetector (NcDetector d)
void	SetDevCopy (Int_t j)
void	SetEventNumber (Int_t evt)
virtual void	SetOwner (Bool_t own=kTRUE)
void	SetProjectile (Int_t a, Int_t z, Double_t pnuc, Int_t id=0)
void	SetProjectile (Int_t a, Int_t z, Nc3Vector &p, Int_t id=0)
void	SetRunNumber (Int_t run)
void	SetSelectLevel (Int_t level)
void	SetTarget (Int_t a, Int_t z, Double_t pnuc, Int_t id=0)
void	SetTarget (Int_t a, Int_t z, Nc3Vector &p, Int_t id=0)
void	SetWeight (Double_t weight)
void	ShowDevices (Int_t mode=1, Bool_t header=kTRUE) const
void	ShowDevices (TString classname, Int_t mode=1, Bool_t header=kTRUE) const
void	ShowHits (TString classname, Int_t mode=1, TString f="car", TString u="rad")
TObjArray *	SortDevices (TObjArray *hits, Int_t idx=1, Int_t mode=-1, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
TObjArray *	SortDevices (TObjArray *hits, TString name, Int_t mode=-1, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
TObjArray *	SortDevices (TString classname, Int_t idx=1, Int_t mode=-1, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
TObjArray *	SortDevices (TString classname, TString name, Int_t mode=-1, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
TObjArray *	SortHits (TString classname, Int_t idx=1, Int_t mode=-1, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
TObjArray *	SortHits (TString classname, TString name, Int_t mode=-1, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
Public Member Functions inherited from NcVertex
	NcVertex ()
	NcVertex (const NcVertex &v)
	NcVertex (Int_t n)
virtual	~NcVertex ()
void	AddJet (NcJet &j, Int_t tracks=1)
void	AddJet (NcJet *j, Int_t tracks=1)
void	AddVertex (NcVertex &v, Int_t connect=1)
void	AddVertex (NcVertex *v, Int_t connect=1)
virtual void	Data (TString f="car", TString u="rad") const
virtual void	Draw (Int_t secs, Int_t cons=1, Int_t jets=0)
virtual void	Draw (Option_t *)
NcJet *	GetIdJet (Int_t id) const
NcVertex *	GetIdVertex (Int_t id) const
NcJet *	GetJet (Int_t i) const
Int_t	GetJetCopy () const
Int_t	GetNjets () const
Int_t	GetNvertices () const
NcVertex *	GetVertex (Int_t i) const
Int_t	GetVertexCopy () const
Int_t	IsConnectTrack (NcTrack *t) const
Int_t	IsJetTrack (NcTrack *t) const
virtual void	List (TString f="car", TString u="rad", TObjArray *tracks=0)
virtual void	ListAll (TString f="car", TString u="rad", TObjArray *tracks=0)
void	ResetVertices ()
void	SetJetCopy (Int_t j)
void	SetNjmax (Int_t n=2)
void	SetNvmax (Int_t n=2)
void	SetVertexCopy (Int_t j)
TObjArray *	SortJets (Int_t mode=-1, TObjArray *jets=0, TObjArray *ordered=0)
Public Member Functions inherited from NcJet
	NcJet ()
	NcJet (const NcJet &j)
	NcJet (Int_t n)
virtual	~NcJet ()
void	AddTrack (NcTrack &t)
void	AddTrack (NcTrack *t)
Nc3Vector	Get3Momentum (Float_t scale=-1) const
Float_t	GetCharge () const
Double_t	GetDistance (NcJet &j, Float_t scale=-1)
Double_t	GetDistance (NcJet *j, Float_t scale=-1)
Double_t	GetDistance (NcPosition &p, Float_t scale=-1)
Double_t	GetDistance (NcPosition *p, Float_t scale=-1)
Double_t	GetDistance (NcTrack &t, Float_t scale=-1)
Double_t	GetDistance (NcTrack *t, Float_t scale=-1)
Double_t	GetEl (Float_t scale=-1)
Double_t	GetEnergy (Float_t scale=-1)
Float_t	GetEscale () const
Double_t	GetEt (Float_t scale=-1)
Int_t	GetId () const
NcTrack *	GetIdTrack (Int_t id) const
Double_t	GetInvmass (Float_t scale=-1)
Double_t	GetMomentum (Float_t scale=-1)
Double_t	GetMt (Float_t scale=-1)
Int_t	GetNsignals (TString classname="TObject", Int_t par=0) const
Int_t	GetNtracks (Int_t idmode=0, Int_t chmode=2, Int_t pcode=0)
Int_t	GetNtracks (TString name, Int_t mode=0)
Double_t	GetPl (Float_t scale=-1)
Double_t	GetPt (Float_t scale=-1)
Double_t	GetRapidity ()
NcPosition *	GetReferencePoint ()
TObjArray *	GetSignals (TString classname, Int_t par=0, TObjArray *signals=0)
Double_t	GetSignalValue (TString classname, TString varname, Int_t mode=0, Int_t par=2)
NcTrack *	GetTrack (Int_t i) const
Int_t	GetTrackCopy () const
TObjArray *	GetTracks (Int_t idmode=0, Int_t chmode=2, Int_t pcode=0, TObjArray *tracks=0)
TObjArray *	GetTracks (TString name, Int_t mode=0, TObjArray *tracks=0)
void	RemoveTrack (NcTrack *t)
void	RemoveTracks (Int_t idmode=0, Int_t chmode=2, Int_t pcode=0)
void	RemoveTracks (TString name, Int_t mode=0)
void	ReplaceTrack (NcTrack *told, NcTrack *tnew)
void	SetEscale (Float_t scale)
void	SetId (Int_t id)
void	SetReferencePoint (NcPosition &p)
void	SetTrackCopy (Int_t j)
void	ShowSignals (TString classname, Int_t par=0, Int_t mode=1, TString f="car", TString u="rad")
void	ShowTracks (Int_t mode=1, TString f="car", TString u="rad", TObjArray *tracks=0)
TObjArray *	SortTracks (Int_t mode=-1, TObjArray *tracks=0, TObjArray *ordered=0)
Public Member Functions inherited from Nc4Vector
	Nc4Vector ()
	Nc4Vector (const Nc4Vector &v)
virtual	~Nc4Vector ()
Double_t	Dot (Nc4Vector &q)
Nc3Vector	Get3Vector () const
Double_t	GetBeta ()
Nc3Vector	GetBetaVector () const
void	GetErrors (Double_t *v, TString f, TString u="rad")
void	GetErrors (Float_t *v, TString f, TString u="rad")
Double_t	GetGamma ()
Double_t	GetInvariant ()
virtual Double_t	GetOpeningAngle (Nc3Vector &q, TString u="rad")
virtual Double_t	GetOpeningAngle (Nc4Vector &q, TString u="rad")
Double_t	GetPseudoRapidity ()
Double_t	GetResultError () const
Double_t	GetScalar ()
Int_t	GetScalarFlag () const
NcSignal *	GetUserData () const
Nc3Vector	GetVecLong () const
void	GetVector (Double_t *v, TString f, TString u="rad")
void	GetVector (Float_t *v, TString f, TString u="rad")
Nc3Vector	GetVecTrans () const
Double_t	GetX (Int_t i, TString f, TString u="rad")
Int_t	HasErrors () const
Int_t	HasVector () const
virtual void	Load (Nc4Vector &q)
Nc4Vector	operator* (Double_t s)
Nc4Vector &	operator*= (Double_t s)
Nc4Vector	operator+ (Nc4Vector &q)
Nc4Vector &	operator+= (Nc4Vector &q)
Nc4Vector	operator- (Nc4Vector &q)
Nc4Vector &	operator-= (Nc4Vector &q)
Nc4Vector	operator/ (Double_t s)
Nc4Vector &	operator/= (Double_t s)
Nc4Vector &	operator= (const Nc4Vector &q)
void	Set3Vector (Double_t *v, TString f, TString u="rad")
void	Set3Vector (Double_t v1, Double_t v2, Double_t v3, TString f, TString u="rad")
void	Set3Vector (Float_t *v, TString f, TString u="rad")
void	Set3Vector (Nc3Vector &v)
void	SetErrors (Double_t *v, TString f, TString u="rad")
void	SetErrors (Double_t e0, Double_t e1, Double_t e2, Double_t e3, TString f, TString u="rad")
void	SetErrors (Float_t *v, TString f, TString u="rad")
void	SetInvariant (Double_t v2, Double_t dv2=0)
void	SetInvariantError (Double_t dv2)
void	SetScalar (Double_t v0, Double_t dv0=0)
void	SetScalarError (Double_t dv0)
void	SetUserData (NcSignal &s)
void	SetUserData (NcSignal *s)
void	SetVector (Double_t *v, TString f, TString u="rad")
void	SetVector (Double_t v0, Double_t v1, Double_t v2, Double_t v3, TString f, TString u="rad")
void	SetVector (Double_t v0, Nc3Vector &v)
void	SetVector (Float_t *v, TString f, TString u="rad")
virtual void	SetZero ()
Public Member Functions inherited from NcPosition
	NcPosition ()
	NcPosition (const NcPosition &p)
virtual	~NcPosition ()
Double_t	GetDistance (NcPosition &p, Float_t scale=-1)
Double_t	GetDistance (NcPosition *p, Float_t scale=-1)
NcPosition &	GetPosition ()
void	GetPosition (Double_t *r, TString f, TString u="rad", Float_t s=-1) const
void	GetPosition (Float_t *r, TString f, TString u="rad", Float_t s=-1) const
void	GetPositionErrors (Double_t *e, TString f, TString u="rad", Float_t s=-1) const
void	GetPositionErrors (Float_t *e, TString f, TString u="rad", Float_t s=-1) const
NcTimestamp *	GetTimestamp ()
Float_t	GetUnitScale () const
void	RemoveTimestamp ()
void	ResetPosition ()
void	SetPosition (Double_t *r, TString f, TString u="rad")
void	SetPosition (Double_t r1, Double_t r2, Double_t r3, TString f, TString u="rad")
void	SetPosition (Float_t *r, TString f, TString u="rad")
void	SetPosition (Nc3Vector &r)
void	SetPositionErrors (Double_t *e, TString f, TString u="rad")
void	SetPositionErrors (Double_t e1, Double_t e2, Double_t e3, TString f, TString u="rad")
void	SetPositionErrors (Float_t *e, TString f, TString u="rad")
void	SetTimestamp (NcTimestamp &t)
void	SetUnitScale (Float_t s)
Public Member Functions inherited from Nc3Vector
	Nc3Vector ()
	Nc3Vector (const Nc3Vector &v)
virtual	~Nc3Vector ()
Double_t	ConvertAngle (Double_t a, TString in, TString out) const
Nc3Vector	Cross (Nc3Vector &q) const
Double_t	Dot (Nc3Vector &q)
void	GetErrors (Double_t *e, TString f, TString u="rad") const
void	GetErrors (Float_t *e, TString f, TString u="rad") const
Double_t	GetNorm ()
virtual Double_t	GetOpeningAngle (Nc3Vector &q, TString u="rad")
Nc3Vector	GetPrimed (TRotMatrix *m) const
Double_t	GetPseudoRapidity ()
Double_t	GetResultError () const
Nc3Vector	GetUnprimed (TRotMatrix *m) const
Nc3Vector	GetVecLong () const
void	GetVector (Double_t *v, TString f, TString u="rad") const
void	GetVector (Float_t *v, TString f, TString u="rad") const
Nc3Vector	GetVecTrans () const
Double_t	GetX (Int_t i, TString f, TString u="rad")
Int_t	HasErrors () const
Int_t	HasVector () const
virtual void	Load (Nc3Vector &q)
Nc3Vector	operator* (Double_t s) const
Nc3Vector &	operator*= (Double_t s)
Nc3Vector	operator+ (Nc3Vector &q) const
Nc3Vector &	operator+= (Nc3Vector &q)
Nc3Vector	operator- (Nc3Vector &q) const
Nc3Vector &	operator-= (Nc3Vector &q)
Nc3Vector	operator/ (Double_t s) const
Nc3Vector &	operator/= (Double_t s)
Nc3Vector &	operator= (const Nc3Vector &q)
void	PrintAngle (Double_t a, TString in, TString out, Int_t ndig=1, Bool_t align=kFALSE) const
void	SetErrors (Double_t *e, TString f, TString u="rad")
void	SetErrors (Double_t e1, Double_t e2, Double_t e3, TString f, TString u="rad")
void	SetErrors (Float_t *e, TString f, TString u="rad")
void	SetVector (Double_t *v, TString f, TString u="rad")
void	SetVector (Double_t v1, Double_t v2, Double_t v3, TString f, TString u="rad")
void	SetVector (Float_t *v, TString f, TString u="rad")
virtual void	SetZero ()
Public Member Functions inherited from NcTimestamp
	NcTimestamp ()
	NcTimestamp (const NcTimestamp &t)
	NcTimestamp (TTimeStamp &t)
virtual	~NcTimestamp ()
void	Add (Double_t hours)
void	Add (Int_t d, Int_t s, Int_t ns, Int_t ps=0)
void	AddSec (Double_t seconds)
Double_t	Almanac (Double_t *dpsi=0, Double_t *deps=0, Double_t *eps=0, Double_t *dl=0, TString name="", Double_t *el=0, Double_t *eb=0, Double_t *dr=0, Double_t *value=0, Int_t j=0)
void	Convert (Double_t date, Int_t &days, Int_t &secs, Int_t &ns) const
void	Convert (Double_t h, Int_t &hh, Int_t &mm, Double_t &ss) const
void	Convert (Double_t h, Int_t &hh, Int_t &mm, Int_t &ss, Int_t &ns, Int_t &ps) const
Double_t	Convert (Int_t days, Int_t secs, Int_t ns) const
Double_t	Convert (Int_t hh, Int_t mm, Double_t ss) const
Double_t	Convert (Int_t hh, Int_t mm, Int_t ss, Int_t ns, Int_t ps) const
void	Date (Int_t mode=3, Double_t offset=0)
Double_t	GetBE ()
Double_t	GetBE (Double_t date, TString mode="jd") const
TString	GetDayTimeString (TString mode, Int_t ndig=0, Double_t offset=0, TString *date=0, TString *time=0, Bool_t full=kTRUE)
Int_t	GetDifference (NcTimestamp &t, Int_t &days, Int_t &sec, Int_t &ns, Int_t &ps, TString type="UT")
Double_t	GetDifference (NcTimestamp &t, TString u, Int_t mode=1, TString type="UT")
Int_t	GetDifference (NcTimestamp *t, Int_t &days, Int_t &sec, Int_t &ns, Int_t &ps, TString type="UT")
Double_t	GetDifference (NcTimestamp *t, TString u, Int_t mode=1, TString type="UT")
Double_t	GetEpoch (TString mode)
Double_t	GetGAST ()
Double_t	GetGMST ()
void	GetGMST (Int_t &hh, Int_t &mm, Int_t &ss, Int_t &ns, Int_t &ps)
TTree *	GetIERSdatabase () const
Double_t	GetJD ()
Double_t	GetJD (Double_t e, TString mode="J") const
void	GetJD (Int_t &jd, Int_t &sec, Int_t &ns)
Double_t	GetJD (Int_t y, Int_t m, Int_t d, Int_t hh, Int_t mm, Int_t ss, Int_t ns) const
Double_t	GetJE ()
Double_t	GetJE (Double_t date, TString mode="jd") const
Double_t	GetLAST (Double_t offset)
Double_t	GetLAT (Double_t offset)
Double_t	GetLMST (Double_t offset)
Double_t	GetLT (Double_t offset)
Double_t	GetMJD ()
Double_t	GetMJD (Double_t e, TString mode="J") const
void	GetMJD (Int_t &mjd, Int_t &sec, Int_t &ns)
Double_t	GetMJD (Int_t y, Int_t m, Int_t d, Int_t hh, Int_t mm, Int_t ss, Int_t ns) const
Int_t	GetNs () const
Int_t	GetPs () const
Double_t	GetTAI (Bool_t tmjd=kTRUE)
Int_t	GetTAI (Int_t &d, Int_t &sec, Int_t &ns, Int_t &ps, Bool_t tmjd=kTRUE)
Int_t	GetTAI (Int_t &hh, Int_t &mm, Int_t &ss, Int_t &ns, Int_t &ps, TString type="TAI")
Double_t	GetTJD ()
Double_t	GetTJD (Double_t e, TString mode="J") const
void	GetTJD (Int_t &tjd, Int_t &sec, Int_t &ns)
Double_t	GetTJD (Int_t y, Int_t m, Int_t d, Int_t hh, Int_t mm, Int_t ss, Int_t ns) const
Double_t	GetUnixTime ()
Double_t	GetUT ()
void	GetUT (Int_t &hh, Int_t &mm, Int_t &ss, Int_t &ns, Int_t &ps)
Int_t	GetUTCparameters (Int_t &leap, Double_t &dut) const
Int_t	GetUTCparameters (Int_t mjd, Int_t &leap, Double_t &dut) const
Bool_t	IsUT1 () const
TTree *	LoadUTCparameterFiles (TString leapfile="$(NCFS)/IERS/leap.txt", TString dutfile="$(NCFS)/IERS/dut.txt")
void	PrintTime (Double_t h, Int_t ndig=1) const
void	SetEpoch (Double_t e, TString mode, TString utc="U", Int_t leap=0, Double_t dut=0)
Int_t	SetGPS (Int_t w, Int_t dow, Int_t sod, Int_t ns, Int_t ps, TString utc, Int_t leap, Double_t dut=0, Int_t icycle=0)
Int_t	SetGPS (Int_t w, Int_t sow, Int_t ns, Int_t ps, TString utc, Int_t leap, Double_t dut=0, Int_t icycle=0)
void	SetJD (Double_t jd, TString utc="U", Int_t leap=0, Double_t dut=0)
void	SetJD (Int_t jd, Int_t sec, Int_t ns, Int_t ps=0, TString utc="U", Int_t leap=0, Double_t dut=0)
void	SetLT (Double_t dt, Int_t y, Int_t d, Int_t s, Int_t ns=0, Int_t ps=0, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetLT (Double_t dt, Int_t y, Int_t m, Int_t d, Int_t hh, Int_t mm, Double_t s, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetLT (Double_t dt, Int_t y, Int_t m, Int_t d, Int_t hh, Int_t mm, Int_t ss, Int_t ns=0, Int_t ps=0, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetLT (Double_t dt, Int_t y, Int_t m, Int_t d, TString time, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetLT (Double_t dt, TString date, TString time, Int_t mode, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetMJD (Double_t mjd, TString utc="U", Int_t leap=0, Double_t dut=0)
void	SetMJD (Int_t mjd, Int_t sec, Int_t ns, Int_t ps=0, TString utc="U", Int_t leap=0, Double_t dut=0)
void	SetNs (Int_t ns)
void	SetPs (Int_t ps)
void	SetSystemTime ()
Int_t	SetTAI (Double_t tai, TString utc, Int_t leap, Double_t dut=0, Bool_t tmjd=kFALSE)
Int_t	SetTAI (Int_t d, Int_t sec, Int_t ns, Int_t ps, TString utc, Int_t leap, Double_t dut=0, Bool_t tmjd=kFALSE)
Int_t	SetTAI (TString type, TString date, TString time, Int_t mode, TString utc, Int_t leap, Double_t dut=0)
void	SetTJD (Double_t tjd, TString utc="U", Int_t leap=0, Double_t dut=0)
void	SetTJD (Int_t tjd, Int_t sec, Int_t ns, Int_t ps=0, TString utc="U", Int_t leap=0, Double_t dut=0)
Int_t	SetUnixTime (Double_t sec, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetUT (Int_t y, Int_t d, Int_t s, Int_t ns=0, Int_t ps=0, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetUT (Int_t y, Int_t m, Int_t d, Int_t hh, Int_t mm, Double_t s, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetUT (Int_t y, Int_t m, Int_t d, Int_t hh, Int_t mm, Int_t ss, Int_t ns=0, Int_t ps=0, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetUT (Int_t y, Int_t m, Int_t d, TString time, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetUT (TString date, TString time, Int_t mode, TString utc="A", Int_t leap=0, Double_t dut=0)

Protected Member Functions
void	CreateDetector ()
void	LoadHits (TString classname, TObjArray *hits=0)
Protected Member Functions inherited from NcVertex
void	Init ()
Protected Member Functions inherited from NcJet
void	AddTrack (NcTrack &t, Int_t copy)
void	AddTrack (NcTrack *t, Int_t copy)
void	Init ()
void	RemoveTrack (NcTrack *t, Int_t compress)
void	SetNtinit (Int_t n=2)
Protected Member Functions inherited from Nc4Vector
Double_t	GetScaLong ()
Double_t	GetScaTrans ()
Protected Member Functions inherited from NcTimestamp
Int_t	SetUTCparameters (TString utc, Int_t leap, Double_t dut)

Protected Attributes
NcDetector *	fDetector
Int_t	fDevCopy
TObjArray *	fDevices
TObjArray *	fDevs
	! Temp. array to hold references to user selected devices
TObject *	fDisplay
	! Temp. pointer to hold objects which serve event displays
Int_t	fEvent
TObjArray *	fHits
	! Temp. array to hold references to the registered NcDevice hits
TObjArray *	fOrdered
	! Temp. array to hold references to various ordered objects
Int_t	fRun
Int_t	fSelectLevel
Double_t	fWeight
Protected Attributes inherited from NcVertex
TObjArray *	fConnects
Int_t	fJetCopy
TObjArray *	fJets
TObjArray *	fJetTracks
TObjArray *	fLines
	! Array to (temporarily) store the 3D lines for the event display
Int_t	fNjets
Int_t	fNjmax
Int_t	fNvmax
Int_t	fNvtx
Int_t	fVertexCopy
TObjArray *	fVertices
Protected Attributes inherited from NcJet
Float_t	fEscale
Int_t	fNtinit
Int_t	fNtmax
Int_t	fNtrk
Float_t	fQ
NcPositionObj *	fRef
TObjArray *	fSelected
	! Temp. array to hold user selected or ordered objects
Int_t	fTrackCopy
TObjArray *	fTracks
Int_t	fUserId
Protected Attributes inherited from Nc4Vector
Double32_t	fDresult
	! The error on the scalar result of an operation (e.g. dotproduct)
Double32_t	fDv0
Double32_t	fDv2
Int_t	fScalar
NcSignal *	fUser
Nc3Vector	fV
Double32_t	fV0
Double32_t	fV2
Protected Attributes inherited from NcPosition
Float_t	fScale
NcTimestamp *	fTstamp
Protected Attributes inherited from Nc3Vector
Double32_t	fDresult
	! Error on scalar result (e.g. norm or dotproduct)
Int_t	fNv
Double32_t *	fV
Protected Attributes inherited from NcTimestamp
Double_t	fDut
Int_t	fJns
Int_t	fJps
Int_t	fJsec
Int_t	fLeap
Int_t	fMJD
Int_t	fTmjd
Int_t	fTns
Int_t	fTps
Int_t	fTsec
Int_t	fUtc
TTree *	fUTCdata

Constructor & Destructor Documentation

NcEvent() [1/3]

NcEvent::NcEvent

(

)

// Default constructor.
// All variables initialised to default values.

Definition at line 289 of file NcEvent.cxx.

NcEvent() [2/3]

NcEvent::NcEvent

(

Int_t

n

)

// Create an event to hold initially a maximum of n tracks.
// All variables initialised to default values

Definition at line 311 of file NcEvent.cxx.

~NcEvent()

NcEvent::~NcEvent ( )

virtual

// Default destructor.

Definition at line 337 of file NcEvent.cxx.

NcEvent() [3/3]

NcEvent::NcEvent

(

const NcEvent &

evt

)

// Copy constructor.

Definition at line 378 of file NcEvent.cxx.

Member Function Documentation

AddDevice() [1/2]

void NcEvent::AddDevice

(

NcDevice &

d

)

// Add a device to the event.
//
// Devices will in principle be stored in the detector structure (see SetDetector),
// and when no detector structure is yet available, a default one will be created.
// However, in case there are already devices stored in the internal storage area,
// the use of the internal storage area will be continued instead, in order to provide
// backward compatibility with old data files.
// When the internal storage area is used, NcDetector or NcDetectorUnit (or derived) objects
// can not be stored in view of backward compatibility.
//
// Note :
//-------
// In case a private copy is made, this is performed via the Clone() memberfunction.
// All devices (i.e. classes derived from TObject) have the default TObject::Clone()
// memberfunction.
// However, devices generally contain an internal (signal) data structure
// which may include pointers to other objects. Therefore it is recommended to provide
// for all devices a specific copy constructor and override the default Clone()
// memberfunction using this copy constructor.
// An example for this may be seen from NcCalorimeter.

Definition at line 1210 of file NcEvent.cxx.

AddDevice() [2/2]

void NcEvent::AddDevice ( NcDevice * d )

inline

Definition at line 49 of file NcEvent.h.

Clone()

TObject * NcEvent::Clone ( const char * name = "" ) const

virtual

// Make a deep copy of the current object and provide the pointer to the copy.
// This memberfunction enables automatic creation of new objects of the
// correct type depending on the object type, a feature which may be very useful
// for containers when adding objects in case the container owns the objects.
// This feature allows to store either NcEvent objects or objects derived from
// NcEvent via some generic AddEvent memberfunction, provided these derived
// classes also have a proper Clone memberfunction.

Reimplemented from NcVertex.

Reimplemented in IceEvent, and RnoEvent.

Definition at line 2737 of file NcEvent.cxx.

CreateDetector()

void NcEvent::CreateDetector ( )

protected

// Internal memberfunction to create a default detector structure.
//
// The detector structure replaces the old internal storage array,
// which is still kept for backward compatibility with (very) old data files.

Definition at line 1086 of file NcEvent.cxx.

Data()

void NcEvent::Data ( TString f = "car", TString u = "rad" )

virtual

// Provide event information within the coordinate frame f.
//
// The string argument "u" allows to choose between different angular units
// in case e.g. a spherical frame is selected.
// u = "rad" : angles provided in radians
//     "deg" : angles provided in degrees
//
// The defaults are f="car" and u="rad".

Reimplemented from NcVertex.

Definition at line 1017 of file NcEvent.cxx.

DisplayHits() [1/2]

void NcEvent::DisplayHits	(	TString	classname,
		Int_t	idx = 1,
		Float_t	scale = -1,
		Int_t	dp = 0,
		Int_t	mode = 1,
		Int_t	mcol = 4 )

// 3D color display of the various hits registered to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// The user can specify the index (default=1) of the signal slot to perform the display for.
// The marker size will indicate the absolute value of the signal (specified by the slotindex)
// as a percentage of the input argument "scale".
// In case scale<0 the maximum absolute signal value encountered in the hit array will be used
// to define the 100% scale. The default is scale=-1.
// In case dp=1 the owning device position will be used, otherwise the hit position will
// be used in the display. The default is dp=0.
// Via the "mcol" argument the user can specify the marker color (see TAttMarker).
// The default is mcol=4 (blue).
// Signals which were declared as "Dead" will not be displayed.
// The gain etc... corrected signals will be used to determine the marker size.
// The gain correction is performed according to "mode" argument. The definition of this
// "mode" parameter corresponds to the description provided in the GetSignal
// memberfunction of class NcSignal.
// The default is mode=1 (for backward compatibility reasons).
//
// For more extended functionality see class NcDevice.
//
// Note :
// ------
// Before any display activity, a TCanvas and a TView have to be initiated
// first by the user like for instance
//
// TCanvas* c1=new TCanvas("c1","c1");
// TView* view=new TView(1);
// view->SetRange(-1000,-1000,-1000,1000,1000,1000);
// view->ShowAxis();

Definition at line 2236 of file NcEvent.cxx.

DisplayHits() [2/2]

void NcEvent::DisplayHits	(	TString	classname,
		TString	name,
		Float_t	scale = -1,
		Int_t	dp = 0,
		Int_t	mode = 1,
		Int_t	mcol = 4 )

// 3D color display of the various hits registered to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// The user can specify the name of the signal slot to perform the display for.
// The marker size will indicate the absolute value of the signal (specified by the slotname)
// as a percentage of the input argument "scale".
// In case scale<0 the maximum absolute signal value encountered in the hit array will be used
// to define the 100% scale. The default is scale=-1.
// In case dp=1 the owning device position will be used, otherwise the hit position will
// be used in the display. The default is dp=0.
// The marker size will indicate the percentage of the maximum encountered value
// of the absolute value of the name-specified input signal slots.
// Via the "mcol" argument the user can specify the marker color (see TAttMarker).
// The default is mcol=4 (blue).
// Signals which were declared as "Dead" will not be displayed.
// The gain etc... corrected signals will be used to determine the marker size.
// The gain correction is performed according to "mode" argument. The definition of this
// "mode" parameter corresponds to the description provided in the GetSignal
// memberfunction of class NcSignal.
// The default is mode=1 (for backward compatibility reasons).
//
// For more extended functionality see class NcDevice.
//
// Note :
// ------
// Before any display activity, a TCanvas and a TView have to be initiated
// first by the user like for instance
//
// TCanvas* c1=new TCanvas("c1","c1");
// TView* view=new TView(1);
// view->SetRange(-1000,-1000,-1000,1000,1000,1000);
// view->ShowAxis();

Definition at line 2291 of file NcEvent.cxx.

GetCOG()

NcPosition NcEvent::GetCOG	(	TObjArray *	hits,
		Int_t	pos = 0,
		TString	slotname = "none",
		Int_t	mode = 0 ) const

// Provide the Center Of Gravity of the hits contained in the array "hits".
// Each hit can be given a weight according to the absolute value of the signal
// contained in the slot with the name "slotname".
// In case slotname="none" each hit will obtain a weight equal to 1.
// The input argument "mode" has the same meaning as in the GetSignal() member function
// of the class NcSignal.
//
// pos = 0 ==> The position of the hit signal itself is used.
//       1 ==> The position of the parent device of the hit signal is used.
//
// The defaults are pos=0, slotname="none" and mode=0.
//
// Note : In case of inconsistent input a "zero vector" will be returned.

Definition at line 2116 of file NcEvent.cxx.

GetCVAL()

Double_t NcEvent::GetCVAL	(	TObjArray *	hits,
		TString	obsname,
		TString	weightname = "none",
		Int_t	mode = 0,
		Int_t	type = 1 ) const

// Provide the Central Value of the observed signals contained in the slot with name "obsname"
// in the array "hits". Depending on the input argument "type" the central value represents
// either the median (type=1) or the mean (type=2).
// Each hit can be given a weight according to the absolute value of the signal
// contained in the slot with the name "weightname".
// In case weightname="none" each hit will obtain a weight equal to 1.
// The input argument "mode" has the same meaning as in the GetSignal() member function
// of the class NcSignal.
//
// The defaults are weightname="none", mode=0 and type=1.
//
// Note : In case of inconsistent input 0 will be returned.

Definition at line 2142 of file NcEvent.cxx.

GetDayTime()

TTimeStamp NcEvent::GetDayTime

(

)

const

// Provide the date and time stamp for this event.
//
// Note : Since the introduction of the more versatile class NcTimestamp
//        and the fact that NcEvent has now been derived from it,
//        this memberfunction has become obsolete.
//        It is recommended to use the corresponding NcTimestamp
//        functionality directly for NcEvent instances.
//        This memberfunction is only kept for backward compatibility.

Definition at line 608 of file NcEvent.cxx.

GetDetector()

NcDetector * NcEvent::GetDetector

(

)

const

// Provide the pointer to the (top level) detector structure.

Definition at line 1075 of file NcEvent.cxx.

GetDevCopy()

Int_t NcEvent::GetDevCopy

(

)

const

// Provide value of the DevCopy mode.
// 0 ==> No private copies are made; pointers of original devices are stored.
// 1 ==> Private copies of the devices are made and these pointers are stored.
//
// Note :
// In case a private copy is made, this is performed via the Clone() memberfunction.
// All devices (i.e. classes derived from TObject) have the default TObject::Clone()
// memberfunction.
// However, devices generally contain an internal (signal) data structure
// which may include pointers to other objects. Therefore it is recommended to provide
// for all devices a specific copy constructor and override the default Clone()
// memberfunction using this copy constructor.
// An example for this may be seen from NcCalorimeter.

Definition at line 1357 of file NcEvent.cxx.

GetDevice() [1/2]

NcDevice * NcEvent::GetDevice

(

Int_t

i

)

const

// Return the i-th device of this event.
// The first device corresponds to i=1.

Definition at line 1380 of file NcEvent.cxx.

GetDevice() [2/2]

NcDevice * NcEvent::GetDevice

(

TString

name

)

const

// Return the device with name tag "name".

Definition at line 1414 of file NcEvent.cxx.

GetDevices()

TObjArray * NcEvent::GetDevices	(	TString	classname,
		TObjArray *	devices = 0 )

// Provide the references to the various devices derived from the specified class.
// For classname="*", no selection on the device class will be performed.
//
// Note :
// ------
// In case devices=0 the selected device pointers are returned via a multi-purpose array,
// which will be overwritten by subsequent selections.
// It is recommended to provide a user defined array via the argument "devices"
// to omit the danger of overwriting the selection and to allow to use the selected device list
// amongst other selections.
// In case a user defined array "devices" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is devices=0.

Definition at line 1656 of file NcEvent.cxx.

GetEventNumber()

Int_t NcEvent::GetEventNumber

(

)

const

// Provide the event number for this event.

Definition at line 637 of file NcEvent.cxx.

GetExtremes() [1/2]

void NcEvent::GetExtremes	(	TString	classname,
		Float_t &	vmin,
		Float_t &	vmax,
		Int_t	idx = 1,
		Int_t	mode = 1,
		Int_t	deadcheck = 1 )

// Provide the min. and max. signal values of the various hits registered
// to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// The input argument "idx" denotes the index of the signal slots to be investigated.
// The default is idx=1;
// The gain etc... corrected signals will be used in the process as specified
// by the  "mode" argument. The definition of this "mode" parameter corresponds to
// the description provided in the GetSignal memberfunction of class NcSignal.
// The default is mode=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mode=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// For more extended functionality see class NcDevice.

Definition at line 2169 of file NcEvent.cxx.

GetExtremes() [2/2]

void NcEvent::GetExtremes	(	TString	classname,
		Float_t &	vmin,
		Float_t &	vmax,
		TString	name,
		Int_t	mode = 1,
		Int_t	deadcheck = 1 )

// Provide the min. and max. signal values of the various hits registered
// to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// The input argument "name" denotes the name of the signal slots to be investigated.
// The gain etc... corrected signals will be used in the process as specified
// by the  "mode" argument. The definition of this "mode" parameter corresponds to
// the description provided in the GetSignal memberfunction of class NcSignal.
// The default is mode=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mode=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// For more extended functionality see class NcDevice.

Definition at line 2204 of file NcEvent.cxx.

GetHitPath()

Nc3Vector NcEvent::GetHitPath	(	TObjArray *	hits,
		Int_t	pos = 0 ) const

// Provide the average direction of the hit pattern contained in the array "hits".
// The direction is obtained by starting at the first hit in the array
// and then a summation of all the relative hit locations while jumping
// from one hit location to the other.
// Since the obtained direction is obviously depending on the order in which the
// hits appear, the user should take care of providing a correctly ordered hit array.
//
// pos = 0 ==> The position of the hit signal itself is used.
//       1 ==> The position of the parent device of the hit signal is used.
//
// The default is pos=0.
//
// Note : In case of inconsistent input a "zero vector" will be returned.

Definition at line 2090 of file NcEvent.cxx.

GetHits()

TObjArray * NcEvent::GetHits	(	TString	classname,
		TObjArray *	hits = 0,
		TString	name = "none",
		Int_t	mode = 0,
		Int_t	opt = 0 )

// Provide the references to all the hits registered to device (or derived) class as specified
// by the input argument "classname".
// The specified device class has to be derived from NcDevice.
// For classname="*", no selection on the device class will be performed.
//
// It is possible to indicate with the argument "classname" a specific
// device instead of a whole class of devices. However, in such a case
// it is more efficient to use the GetDevice() memberfunction directly.
//
// The argument "hits" may be used to retreive the required hit pointers.
// In case hits=0 the selected hit pointers are returned via a multi-purpose array,
// which will be overwritten by subsequent selections.
// It is recommended to provide a user defined array via the argument "hits"
// to omit the danger of overwriting the selection and to allow to use the selected hit list
// amongst other selections.
//
// The input arguments "name", "mode" and "opt" allow for further selection criteria
// as indicated below.
//
// name : The user provided hit or signal slot name to be used for the hit selection.
//        If name="none", no selections will be made on the name matching.
//
// mode = 0 --> Hits with a matching hit name will be selected
//        1 --> Hits with a matching signal slot name will be selected
//        2 --> Hits matching in either hit name or signal slot name will be selected
//       -1 --> Hits with NO matching hit name will be selected
//       -2 --> Hits with NO matching signal slot name will be selected
//       -3 --> Hits with NO matching hit name nor signal slot name will be selected
//
// opt = 0 --> The specified name has to match exactly the hit or slotname
//       1 --> The specified name string has to be contained in the hit or slotname
//
// The defaults are : hits=0, name="none", mode=0 and opt=0.

Definition at line 1763 of file NcEvent.cxx.

GetIdDevice() [1/2]

NcDevice * NcEvent::GetIdDevice	(	Int_t	id,
		TObjArray *	devs = 0 ) const

// Return the NcDevice with identifier "id" from the specified array "devs".
// In case devs=0 (which is the default) all devices stored in the event
// structure will be evaluated.
// Note : In case of multiple occurrences of identifier "id", the first
//        encountered matching device will be returned.

Definition at line 1451 of file NcEvent.cxx.

GetIdDevice() [2/2]

NcDevice * NcEvent::GetIdDevice	(	Int_t	id,
		TString	classname ) const

// Return the device with identifier "id" of the specified class.
// For classname="*", no selection on the device class will be performed.
//
// Note : In case of multiple occurrences of identifier "id", the first
//        encountered matching device will be returned.

Definition at line 1490 of file NcEvent.cxx.

GetIdHit()

NcSignal * NcEvent::GetIdHit	(	Int_t	id,
		TString	classname )

// Return the hit with unique identifier "id" for the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.

Definition at line 1837 of file NcEvent.cxx.

GetNdevices() [1/2]

Int_t NcEvent::GetNdevices

(

)

const

// Provide the number of stored devices.

Definition at line 1103 of file NcEvent.cxx.

GetNdevices() [2/2]

Int_t NcEvent::GetNdevices	(	TString	classname,
		TObjArray *	hits = 0 ) const

// Provide the number of devices of the specified class.
// In case an array "hits" is provided, the contents of the provided
// hit array are used to determine the number of different devices of the
// specified class to which the hits belong.
// Note that identification of the different hit parent devices only works
// for devices that have been given a unique identifier.
// In case no hit array is provided, just the number of stored devices of the
// specified class is returned.
//
// By default hits=0.

Definition at line 1126 of file NcEvent.cxx.

GetNhits()

Int_t NcEvent::GetNhits

(

TString

classname

)

// Provide the number of hits registered to the specified device (or derived) class.
// The specified device class has to be derived from NcDevice.
// For classname="*", no selection on the device class will be performed.
//
// It is possible to indicate with the argument "classname" a specific
// device instead of a whole class of devices. However, in such a case
// it is more efficient to use the GetDevice() memberfunction directly.

Definition at line 1731 of file NcEvent.cxx.

GetProjectileA()

Int_t NcEvent::GetProjectileA

(

)

const

// Provide the projectile A value.

Definition at line 777 of file NcEvent.cxx.

GetProjectileId()

Int_t NcEvent::GetProjectileId

(

)

const

// Provide the user defined particle ID of the projectile.

Definition at line 819 of file NcEvent.cxx.

GetProjectilePnuc()

Double_t NcEvent::GetProjectilePnuc

(

)

const

// Provide the projectile momentum value per nucleon.

Definition at line 805 of file NcEvent.cxx.

GetProjectileZ()

Int_t NcEvent::GetProjectileZ

(

)

const

// Provide the projectile Z value.

Definition at line 791 of file NcEvent.cxx.

GetRunNumber()

Int_t NcEvent::GetRunNumber

(

)

const

// Provide the run number for this event.

Definition at line 626 of file NcEvent.cxx.

GetSelectLevel()

Int_t NcEvent::GetSelectLevel

(

)

const

// Provide the selection level (<0:reject 0:undecided >0:accept) for this event.

Definition at line 659 of file NcEvent.cxx.

GetTargetA()

Int_t NcEvent::GetTargetA

(

)

const

// Provide the target A value.

Definition at line 940 of file NcEvent.cxx.

GetTargetId()

Int_t NcEvent::GetTargetId

(

)

const

// Provide the user defined particle ID of the target.

Definition at line 982 of file NcEvent.cxx.

GetTargetPnuc()

Double_t NcEvent::GetTargetPnuc

(

)

const

// Provide the target momentum value per nucleon.

Definition at line 968 of file NcEvent.cxx.

GetTargetZ()

Int_t NcEvent::GetTargetZ

(

)

const

// Provide the target Z value.

Definition at line 954 of file NcEvent.cxx.

GetWeight()

Double_t NcEvent::GetWeight

(

)

const

// Provide the weight for this event.

Definition at line 648 of file NcEvent.cxx.

HeaderData()

void NcEvent::HeaderData ( )

virtual

// Provide event header information.

Definition at line 996 of file NcEvent.cxx.

LoadHits()

void NcEvent::LoadHits ( TString classname, TObjArray * hits = 0 )

protected

// Load the references to the various hits registered to the specified device (or derived) class.
// The specified device class has to be derived from NcDevice.
// For classname="*", no selection on the device class will be performed.
//
// Note :
// ------
// In case hits=0 the selected hit pointers are returned via a multi-purpose array,
// which will be overwritten by subsequent selections.
// It is recommended to provide a user defined array via the argument "hits"
// to omit the danger of overwriting the selection and to allow to use the selected hit list
// amongst other selections.
//
// The default is hits=0.

Definition at line 1881 of file NcEvent.cxx.

RemoveDevice()

void NcEvent::RemoveDevice

(

NcDevice *

d

)

// Remove the specified device from the event.

Definition at line 1286 of file NcEvent.cxx.

Reset()

void NcEvent::Reset ( )

virtual

// Reset all variables to default values.
// The max. number of tracks is set to the initial value again.
// The max. number of vertices is set to the default value again.
// The event weight is set to 1 and the event select level is set to 0 again.
// The timestamp is set to the current time of the system clock.
// Note : The DevCopy mode is maintained as it was set by the user before.

Reimplemented from NcVertex.

Reimplemented in IceEvent, and RnoEvent.

Definition at line 436 of file NcEvent.cxx.

SetDayTime() [1/2]

void NcEvent::SetDayTime

(

TDatime &

stamp

)

// Set the date and time stamp for this event.
// The entered date/time will be interpreted as being the local date/time
// and the accuracy is 1 second.
//
// This function with the TDatime argument is mainly kept for backward
// compatibility reasons.
// It is recommended to use the corresponding NcTimestamp functionality
// directly for NcEvent instances.

Definition at line 544 of file NcEvent.cxx.

SetDayTime() [2/2]

void NcEvent::SetDayTime

(

TTimeStamp &

stamp

)

// Set the date and time stamp for this event.
// An exact copy of the entered date/time stamp will be saved with an
// accuracy of 1 nanosecond.
//
// Note : Since the introduction of the more versatile class NcTimestamp
//        and the fact that NcEvent has now been derived from it,
//        this memberfunction has become obsolete.
//        It is recommended to use the corresponding NcTimestamp
//        functionality directly for NcEvent instances.
//        This memberfunction is only kept for backward compatibility.

Definition at line 524 of file NcEvent.cxx.

SetDetector() [1/2]

void NcEvent::SetDetector ( NcDetector * d )

inline

Definition at line 52 of file NcEvent.h.

SetDetector() [2/2]

void NcEvent::SetDetector

(

NcDetector

d

)

// Store a detector structure.
//
// The detector structure replaces the old internal storage array,
// which is still kept for backward compatibility with (very) old data files.
// In case there are already devices stored in the internal storage array,
// the detector structure will not be put in place and the internal storage array
// will be used instead for backward compatibility.
//
// Note : Once a detector structure is in place, no new one can be set anymore.

Definition at line 1036 of file NcEvent.cxx.

SetDevCopy()

void NcEvent::SetDevCopy

(

Int_t

j

)

// (De)activate the creation of private copies of the added devices.
// j=0 ==> No private copies are made; pointers of original devices are stored.
// j=1 ==> Private copies of the devices are made and these pointers are stored.
//
//
// Notes :
//  In case a private copy is made, this is performed via the Clone() memberfunction.
//  All devices (i.e. classes derived from TObject) have the default TObject::Clone()
//  memberfunction.
//  However, devices generally contain an internal (signal) data structure
//  which may include pointers to other objects. Therefore it is recommended to provide
//  for all devices a specific copy constructor and override the default Clone()
//  memberfunction using this copy constructor.
//  An example for this may be seen from NcCalorimeter.
//
//  Once the storage contains pointer(s) to device(s) one cannot
//  change the DevCopy mode anymore.
//  To change the DevCopy mode for an existing NcEvent containing
//  devices one first has to invoke Reset().

Definition at line 1313 of file NcEvent.cxx.

SetEventNumber()

void NcEvent::SetEventNumber

(

Int_t

evt

)

// Set the event number for this event.

Definition at line 573 of file NcEvent.cxx.

SetOwner()

void NcEvent::SetOwner ( Bool_t own = kTRUE )

virtual

// Set ownership of all added objects.
// The default parameter is own=kTRUE.
//
// Invokation of this memberfunction also sets all the copy modes
// (e.g. TrackCopy & co.) according to the value of own.
//
// This function (with own=kTRUE) is particularly useful when reading data
// from a tree/file, since Reset() will then actually remove all the
// added objects from memory irrespective of the copy mode settings
// during the tree/file creation process. In this way it provides a nice way
// of preventing possible memory leaks in the reading/analysis process.
//
// In addition this memberfunction can also be used as a shortcut to set all
// copy modes in one go during a tree/file creation process.
// However, in this case the user has to take care to only set/change the
// ownership (and copy mode) for empty objects (e.g. newly created objects
// or after invokation of the Reset() memberfunction) otherwise it will
// very likely result in inconsistent destructor behaviour.

Reimplemented from NcVertex.

Definition at line 490 of file NcEvent.cxx.

SetProjectile() [1/2]

void NcEvent::SetProjectile	(	Int_t	a,
		Int_t	z,
		Double_t	pnuc,
		Int_t	id = 0 )

// Set the projectile A, Z, momentum per nucleon and user defined particle ID.
// If not explicitly specified by the user, the projectile particle ID is set
// to zero by default and will not be stored in the event structure.
// The projectile specifications will be stored in a device named "Beam"
// which is an instance of NcSignal.
// As such these data are easily retrievable from the event structure.
// However, for backward compatibility reasons the beam data can also be
// retrieved via memberfunctions like GetProjectileA() etc...

Definition at line 670 of file NcEvent.cxx.

SetProjectile() [2/2]

void NcEvent::SetProjectile	(	Int_t	a,
		Int_t	z,
		Nc3Vector &	p,
		Int_t	id = 0 )

// Set the projectile A, Z, 3-momentum per nucleon and user defined particle ID.
// If not explicitly specified by the user, the projectile particle ID is set
// to zero by default and will not be stored in the event structure.
// The projectile specifications will be stored in a device named "Beam"
// which is an instance of NcSignal.
// As such these data are easily retrievable from the event structure.
// However, for backward compatibility reasons beam data can also be
// retrieved via memberfunctions like GetProjectileA() etc...

Definition at line 718 of file NcEvent.cxx.

SetRunNumber()

void NcEvent::SetRunNumber

(

Int_t

run

)

// Set the run number for this event.

Definition at line 562 of file NcEvent.cxx.

SetSelectLevel()

void NcEvent::SetSelectLevel

(

Int_t

level

)

// Set the selection level (<0:reject 0:undecided >0:accept) for this event.
// By default the selection level is set to 0 in the constructor.

Definition at line 596 of file NcEvent.cxx.

SetTarget() [1/2]

void NcEvent::SetTarget	(	Int_t	a,
		Int_t	z,
		Double_t	pnuc,
		Int_t	id = 0 )

// Set the target A, Z, momentum per nucleon and user defined particle ID.
// If not explicitly specified by the user, the target particle ID is set
// to zero by default and will not be stored in the event structure.
// The target specifications will be stored in a device named "Beam"
// which is an instance of NcSignal.
// As such these data are easily retrievable from the event structure.
// However, for backward compatibility reasons the beam data can also be
// retrieved via memberfunctions like GetTargetA() etc...

Definition at line 833 of file NcEvent.cxx.

SetTarget() [2/2]

void NcEvent::SetTarget	(	Int_t	a,
		Int_t	z,
		Nc3Vector &	p,
		Int_t	id = 0 )

// Set the target A, Z, 3-momentum per nucleon and user defined particle ID.
// If not explicitly specified by the user, the target particle ID is set
// to zero by default and will not be stored in the event structure.
// The target specifications will be stored in a device named "Beam"
// which is an instance of NcSignal.
// As such these data are easily retrievable from the event structure.
// However, for backward compatibility reasons beam data can also be
// retrieved via memberfunctions like GetTargetA() etc...

Definition at line 881 of file NcEvent.cxx.

SetWeight()

void NcEvent::SetWeight

(

Double_t

weight

)

// Set the weight for this event.
// By default the weight is set to 1 in the constructor.

Definition at line 584 of file NcEvent.cxx.

ShowDevices() [1/2]

void NcEvent::ShowDevices	(	Int_t	mode = 1,
		Bool_t	header = kTRUE ) const

// Provide an overview of the available devices from the detector structure.
// The input argument "header" determines whether header info is printed (kTRUE) or not (kFALSE).
//
// The argument mode determines the amount of information as follows :
// mode = 0 ==> Only printout of the number of directly linked devices
//        1 ==> Provide a listing with 1 line of info for each directly linked device
//        2 ==> Provide a listing with 1 line of info for each linked device at any level
//
// The default values are mode=1 and header=kTRUE.

Definition at line 1526 of file NcEvent.cxx.

ShowDevices() [2/2]

void NcEvent::ShowDevices	(	TString	classname,
		Int_t	mode = 1,
		Bool_t	header = kTRUE ) const

// Provide an overview of the available devices of the specified (or derived) class.
// For classname="*", no selection on the device class will be performed.
// The input argument "header" determines whether header info is printed (kTRUE) or not (kFALSE).
//
// The argument mode determines the amount of information as follows :
// mode = 0 ==> Only printout of the number of directly linked devices
//        1 ==> Provide a listing with 1 line of info for each directly linked device
//        2 ==> Provide a listing with 1 line of info for each linked device at any level
//
// The default values are mode=1 and header=kTRUE.

Definition at line 1590 of file NcEvent.cxx.

ShowHits()

void NcEvent::ShowHits	(	TString	classname,
		Int_t	mode = 1,
		TString	f = "car",
		TString	u = "rad" )

// Show all the hits registered to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// mode = 0 ==> Only the number of hits will be provided.
//        1 ==> Full listing of all the hits will be provided.
//        2 ==> Same as mode=1 but with additional location info of the owning device.
//
// Default value is mode=1.
//
// The arguments "f" and "u" have the same meaning as in the memberfunction Data().
//
// Note : This memberfunction will show hits in printable format.
//        To obtain a graphic hit display please refer to DisplayHits().

Definition at line 2346 of file NcEvent.cxx.

SortDevices() [1/4]

TObjArray * NcEvent::SortDevices	(	TObjArray *	hits,
		Int_t	idx = 1,
		Int_t	mode = -1,
		Int_t	mcal = 1,
		Int_t	deadcheck = 1,
		TObjArray *	ordered = 0 )

// Order the references to the various devices based on hit signals contained
// in the input array.
// The ordered array is returned as a TObjArray either via a user provided array "ordered"
// or as a returned pointer.
// A "hit" represents an abstract object which is derived from NcSignal.
// The user can specify the index of the signal slot to perform the sorting on.
// By default the slotindex will be 1.
// Via the "mode" argument the user can specify ordering in decreasing
// order (mode=-1), ordering in increasing order (mode=1) or no ordering (mode=0).
// The latter option provides a means to quickly obtain an ordered devices list
// when the hits in the array were already ordered by the user. In this case
// the input argument "idx" is irrelevant.
// The default is mode=-1.
// The gain etc... corrected signals will be used in the ordering process as
// specified by the "mcal" argument. The definition of this "mcal" parameter
// corresponds to the signal correction mode described in the GetSignal
// memberfunction of class NcSignal.
// The default is mcal=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mcal=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// Note :
// ------
// In case ordered=0 the ordered device pointers are returned via a multi-purpose array,
// which may be overwritten by other memberfunctions (not restricted to device ordering).
// It is recommended to provide a user defined array via the argument "ordered" to omit
// the danger of overwriting (or being overwritten by) other selections and to allow to use
// the ordered device list amongst other selections.
// In case a user defined array "ordered" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is ordered=0.

Definition at line 2630 of file NcEvent.cxx.

SortDevices() [2/4]

TObjArray * NcEvent::SortDevices	(	TObjArray *	hits,
		TString	name,
		Int_t	mode = -1,
		Int_t	mcal = 1,
		Int_t	deadcheck = 1,
		TObjArray *	ordered = 0 )

// Order the references to the various devices based on hit signals contained
// in the input array.
// The ordered array is returned as a TObjArray either via a user provided array "ordered"
// or as a returned pointer.
// A "hit" represents an abstract object which is derived from NcSignal.
// The user can specify the name of the signal slot to perform the sorting on.
// In case no matching slotname is found, the signal will be skipped.
// Via the "mode" argument the user can specify ordering in decreasing
// order (mode=-1), ordering in increasing order (mode=1) or no ordering (mode=0).
// The latter option provides a means to quickly obtain an ordered devices list
// when the hits in the array were already ordered by the user. In this case
// the input argument "name" is irrelevant.
// The default is mode=-1.
// The gain etc... corrected signals will be used in the ordering process as
// specified by the "mcal" argument. The definition of this "mcal" parameter
// corresponds to the signal correction mode described in the GetSignal
// memberfunction of class NcSignal.
// The default is mcal=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mcal=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// Note :
// ------
// In case ordered=0 the ordered device pointers are returned via a multi-purpose array,
// which may be overwritten by other memberfunctions (not restricted to device ordering).
// It is recommended to provide a user defined array via the argument "ordered" to omit
// the danger of overwriting (or being overwritten by) other selections and to allow to use
// the ordered device list amongst other selections.
// In case a user defined array "ordered" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is ordered=0.

Definition at line 2523 of file NcEvent.cxx.

SortDevices() [3/4]

TObjArray * NcEvent::SortDevices	(	TString	classname,
		Int_t	idx = 1,
		Int_t	mode = -1,
		Int_t	mcal = 1,
		Int_t	deadcheck = 1,
		TObjArray *	ordered = 0 )

// Order the references to the various devices based on hit signals registered
// to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// The ordered array is returned as a TObjArray either via a user provided array "ordered"
// or as a returned pointer.
// A "hit" represents an abstract object which is derived from NcSignal.
// The user can specify the index of the signal slot to perform the sorting on.
// By default the slotindex will be 1.
// Via the "mode" argument the user can specify ordering in decreasing
// order (mode=-1) or ordering in increasing order (mode=1).
// The default is mode=-1.
// The gain etc... corrected signals will be used in the ordering process as
// specified by the "mcal" argument. The definition of this "mcal" parameter
// corresponds to the signal correction mode described in the GetSignal
// memberfunction of class NcSignal.
// The default is mcal=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mcal=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// Note :
// ------
// In case ordered=0 the ordered device pointers are returned via a multi-purpose array,
// which may be overwritten by other memberfunctions (not restricted to device ordering).
// It is recommended to provide a user defined array via the argument "ordered" to omit
// the danger of overwriting (or being overwritten by) other selections and to allow to use
// the ordered device list amongst other selections.
// In case a user defined array "ordered" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is ordered=0.

Definition at line 2463 of file NcEvent.cxx.

SortDevices() [4/4]

TObjArray * NcEvent::SortDevices	(	TString	classname,
		TString	name,
		Int_t	mode = -1,
		Int_t	mcal = 1,
		Int_t	deadcheck = 1,
		TObjArray *	ordered = 0 )

// Order the references to the various devices based on hit signals registered
// to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// The ordered array is returned as a TObjArray either via a user provided array "ordered"
// or as a returned pointer.
// A "hit" represents an abstract object which is derived from NcSignal.
// The user can specify the name of the signal slot to perform the sorting on.
// In case no matching slotname is found, the signal will be skipped.
// Via the "mode" argument the user can specify ordering in decreasing
// order (mode=-1) or ordering in increasing order (mode=1).
// The default is mode=-1.
// The gain etc... corrected signals will be used in the ordering process as
// specified by the "mcal" argument. The definition of this "mcal" parameter
// corresponds to the signal correction mode described in the GetSignal
// memberfunction of class NcSignal.
// The default is mcal=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mcal=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// Note :
// ------
// In case ordered=0 the ordered device pointers are returned via a multi-purpose array,
// which may be overwritten by other memberfunctions (not restricted to device ordering).
// It is recommended to provide a user defined array via the argument "ordered" to omit
// the danger of overwriting (or being overwritten by) other selections and to allow to use
// the ordered device list amongst other selections.
// In case a user defined array "ordered" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is ordered=0.

Definition at line 2403 of file NcEvent.cxx.

SortHits() [1/2]

TObjArray * NcEvent::SortHits	(	TString	classname,
		Int_t	idx = 1,
		Int_t	mode = -1,
		Int_t	mcal = 1,
		Int_t	deadcheck = 1,
		TObjArray *	ordered = 0 )

// Order the references to the various hits registered to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// The ordered array is returned as a TObjArray either via a user provided array "ordered"
// or as a returned pointer.
// A "hit" represents an abstract object which is derived from NcSignal.
// The user can specify the index of the signal slot to perform the sorting on.
// By default the slotindex will be 1.
// Via the "mode" argument the user can specify ordering in decreasing
// order (mode=-1) or ordering in increasing order (mode=1).
// The default is mode=-1.
// The gain etc... corrected signals will be used in the ordering process as
// specified by the "mcal" argument. The definition of this "mcal" parameter
// corresponds to the signal correction mode described in the GetSignal
// memberfunction of class NcSignal.
// The default is mcal=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mcal=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// Note :
// ------
// In case ordered=0 the ordered hit pointers are returned via a multi-purpose array,
// which may be overwritten by other memberfunctions (not restricted to hit ordering).
// It is recommended to provide a user defined array via the argument "ordered" to omit
// the danger of overwriting (or being overwritten by) other selections and to allow to use
// the ordered hit list amongst other selections.
// In case a user defined array "ordered" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is ordered=0.
//
// For more extended functionality see class NcDevice.

Definition at line 1942 of file NcEvent.cxx.

SortHits() [2/2]

TObjArray * NcEvent::SortHits	(	TString	classname,
		TString	name,
		Int_t	mode = -1,
		Int_t	mcal = 1,
		Int_t	deadcheck = 1,
		TObjArray *	ordered = 0 )

// Order the references to the various hits registered to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// The ordered array is returned as a TObjArray either via a user provided array "ordered"
// or as a returned pointer.
// A "hit" represents an abstract object which is derived from NcSignal.
// The user can specify the name of the signal slot to perform the sorting on.
// In case no matching slotname is found, the signal will be skipped.
// Via the "mode" argument the user can specify ordering in decreasing
// order (mode=-1) or ordering in increasing order (mode=1).
// The default is mode=-1.
// The gain etc... corrected signals will be used in the ordering process as
// specified by the "mcal" argument. The definition of this "mcal" parameter
// corresponds to the signal correction mode described in the GetSignal
// memberfunction of class NcSignal.
// The default is mcal=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mcal=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// Note :
// ------
// In case ordered=0 the ordered hit pointers are returned via a multi-purpose array,
// which may be overwritten by other memberfunctions (not restricted to hit ordering).
// It is recommended to provide a user defined array via the argument "ordered" to omit
// the danger of overwriting (or being overwritten by) other selections and to allow to use
// the ordered hit list amongst other selections.
// In case a user defined array "ordered" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is ordered=0.
//
// For more extended functionality see class NcDevice.

Definition at line 2016 of file NcEvent.cxx.

Member Data Documentation

fDetector

NcDetector* NcEvent::fDetector

protected

Definition at line 90 of file NcEvent.h.

fDevCopy

Int_t NcEvent::fDevCopy

protected

Definition at line 92 of file NcEvent.h.

fDevices

TObjArray* NcEvent::fDevices

protected

Definition at line 91 of file NcEvent.h.

fDevs

TObjArray* NcEvent::fDevs

protected

! Temp. array to hold references to user selected devices

Definition at line 96 of file NcEvent.h.

fDisplay

TObject* NcEvent::fDisplay

protected

! Temp. pointer to hold objects which serve event displays

Definition at line 95 of file NcEvent.h.

fEvent

Int_t NcEvent::fEvent

protected

Definition at line 87 of file NcEvent.h.

fHits

TObjArray* NcEvent::fHits

protected

! Temp. array to hold references to the registered NcDevice hits

Definition at line 93 of file NcEvent.h.

fOrdered

TObjArray* NcEvent::fOrdered

protected

! Temp. array to hold references to various ordered objects

Definition at line 94 of file NcEvent.h.

fRun

Int_t NcEvent::fRun

protected

Definition at line 86 of file NcEvent.h.

fSelectLevel

Int_t NcEvent::fSelectLevel

protected

Definition at line 89 of file NcEvent.h.

fWeight

Double_t NcEvent::fWeight

protected

Definition at line 88 of file NcEvent.h.

---

The documentation for this class was generated from the following files:

• ncfspack/source/NcEvent.h
• ncfspack/source/NcEvent.cxx
