NcTimestamp Class Reference

Handling of timestamps for (astro)particle physics research. More...

#include "NcTimestamp.h"

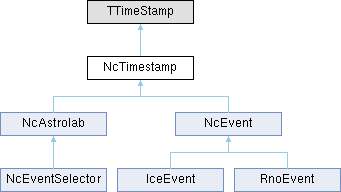

Inheritance diagram for NcTimestamp:

Detailed Description

Handling of timestamps for (astro)particle physics research.

---

Copyright(c) 2005 NCFS/IIHE, All Rights Reserved.                           *
                                                                            *
Authors: The Netherlands Center for Fundamental Studies (NCFS).             *
         The Inter-university Institute for High Energies (IIHE).           *
                   Website : http://www.iihe.ac.be                          *
           Contact : Nick van Eijndhoven (nickve.nl@gmail.com)              *
                                                                            *
Contributors are mentioned in the code where appropriate.                   *
                                                                            *
No part of this software may be used, copied, modified or distributed       *
by any means nor transmitted or translated into machine language for        *
commercial purposes without written permission by the IIHE representative.  *
Permission to use the software strictly for non-commercial purposes         *
is hereby granted without fee, provided that the above copyright notice     *
appears in all copies and that both the copyright notice and this           *
permission notice appear in the supporting documentation.                   *
This software is provided "as is" without express or implied warranty.      *
The authors make no claims that this software is free of error, or is       *
consistent with any particular standard of merchantability, or that it      *
will meet your requirements for any particular application, other than      *
indicated in the corresponding documentation.                               *
This software should not be relied on for solving a problem whose           *
incorrect solution could result in injury to a person or loss of property.  *
If you do use this software in such a manner, it is at your own risk.       *
The authors disclaim all liability for direct or consequential damage       *
resulting from your use of this software.                                   *

---

// Class NcTimestamp
// Handling of timestamps for (astro)particle physics reserach.
// This facility supports picosecond timing precision.
//
// This class is derived from TTimeStamp and provides additional
// facilities (e.g. Julian date) which are commonly used in the
// field of (astro)particle physics.
//
// The basis of the used timing is the "day".
//
// 1 day=24 hours  1 hour=60 minutes  1 minute=60 seconds.
//
// So, 1 day consists of 86400 seconds.
//
// The absolute duration of a day is defined by the time scale that is used.
// The two main time scales for time recording are Universal Time (UT)
// and International Atomic Time (TAI), as outlined below.
// Here it should be noted that UT may represent Coordinated Universal Time (UTC)
// as well as UT1, which is a more exact time keeping for astronomical observations.
// The UT1 timing is obtained by daily observations of the slight variations in the
// meridian transitions of (extra galactic) cosmic objects, due to irregularities
// in the Earth rotation. This results in daily updates w.r.t. UTC expressed as dUT=UT1-UTC.
// In case the value of dUT=UT1-UTC is known (see below), the timing of UT1 will be used
// as the main reference time instead of UTC, in order to provide the best accuracy
// for linking observations with astrophysical phenomena.
// The UT time scale is always provided and the TAI (and its derived) time scale(s)
// may be activated by the various Set() functions, as outlined in the corresponding docs.
// For precise time keeping it is important to work within 1 single time scale and indicate
// which time scale is being used.
// Time information for the various time scales may be obtained via the Date() and the
// various Get() memberfunctions.
//
// Notes :
// -------
// 1) Both the UT and TAI based time scales provide picosecond precision, so from that
//    respect there is no preference for one or the other.
//    However, when timing is received from an external clock (e.g. GPS), it might be
//    convenient to choose a specific time scale when setting dates and times depending
//    on the format in which the clock information is broadcast.
// 2) As explained below, the UT and TAI clocks do not "tick" at the same pace.
//    This implies that when two timestamps are compared (e.g. via the GetDifference()
//    member function) both timestamps should be using the same time scale.
// 3) For most of the time broadcasting the Coordinated Universal Time (UTC) is used.
//    This UTC time runs at the pace of TAI, but is kept close (within 0.9 sec) to UT1
//    by the introduction of Leap Seconds when abs(UT1-UTC) exceeds 0.9 sec.
//    This time synchronisation is coordinated by the International Earth Rotation and
//    Reference Systems Service (IERS) via a daily monitoring of the Earth Orientation
//    Parameters (EOP).
//    Depending on dUT=UT1-UTC, these Leap Seconds can be positive or negative.
//    The introduction of Leap Seconds into UTC started at 01-jan-1972 00:00:00 UT.
//
//    An overview of the history of introduced Leap seconds (TAI-UTC) is online available at :
//                 https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
//    The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
//    The accuracy of dUT=UT1-UTC is about 10 microseconds, so in case of accurate astronomical
//    timing the user is advised to specify dUT in the various Set() facilities or use SetUT().
//    An automatic setting of dUT is provided based on the IERS data files.
//    Please refer to the member function LoadUTCparameterFiles() for further details.
//
// 4) In some cases Unix Time (also called POSIX Time or UNIX Epoch Time) is used.
//    Unix Time is closely releated to UTC and represents the (fractional) elapsed second count
//    since the start of the Unix Epoch, in which every Unix Time day contains exactly 86400 seconds.
//    This implies that for Unix Time the UTC leap seconds should be ignored, as explained below.
//    The UNIX Time EPOCH starts at 01-jan-1970 00:00:00 UTC which corresponds to JD=2440587.5
//    (i.e. the start of MJD=40587, as explained in the discussion on Julian Date below).
//    Synchronization with UTC is obtained by continuing the second count when a UTC leap second
//    occurs and then the Unix Time count jumps up or down 1 second at the beginning of the new
//    day after the UTC leap second has expired.
//    In case of a negative UTC leap second (which has not occurred so far) this would result
//    in a jump forward of 1 second in Unix Time, introducing a "gap" of 1 second in the timing
//    at the start of the new day.
//    In case of a positive UTC leap second this results in a jump back of 1 second in Unix Time
//    at the start of a new day.
//    In this case there exist 2 ambiguous Unix Times over a 1 second time interval,
//    namely at the beginning of the introduction of the UTC leap second and at the moment that
//    the UTC leap second expires, i.e. the start of the new day.
//    This NcTimestamp facility provides setting and retrieval of Unix Time, but for accurate
//    timing the user is advised to use one of the time scales mentioned below.
//
// Supported time scales :
// ----------------------
// UT  : Universal Time.
//       1 day is the time span between two successive solar meridian transitions.
//       This implies that UT is based on the actual rotation of the Earth and as such suited
//       for (synchronization of) astronomical observations at various locations on Earth.
//       The reference time is defined by transitions over the meridian at Greenwich.
// ST  : Siderial Time (see also the details below).
//       1 day is the time span between two successive stellar meridian transitions.
//       This implies that ST is based on the actual rotation of the Earth and its rotation
//       around the Sun. Siderial Time is very well suited for astronomical observations.
//       The reference time is defined by transitions over the meridian at Greenwich.
//       Because of the stability of the rotation of the Earth around the Sun, the Siderial Time
//       is derived from the Universal Time and as such not treated as a separate time scale.
// TAI : International Atomic Time (Temps Atomique International).
//       1 day is the time span of 86400 standard atomic (SI) seconds at average sea level.
//       The standard atomic (SI) second is derived from a set of Cs atomic clocks.
//       This implies that TAI is not related to the actual rotation of the Earth and as such
//       will not run at the same pace as UT.
//       The start epoch of TAI is 01-jan-1958 00:00:00 UT, at which time UT1-UTC was about 0.
// GPS : Global Positioning System time.
//       This satellite based timing system is based on TAI and broadcast via a satellite network.
//       The start epoch of GPS is 06-jan-1980 00:00:00 UTC, at which the number of Leap Seconds was 19.
//       This implies that at that time TAI=UTC+19 sec. and consequently we always have TAI=GPS+19 sec.
//       GPS is broadcast in two formats : (w,sow) and (w,dow,sod) with
//       w   = week number after the start epoch.   1 week=7 days or 1 week=604800 seconds.
//       sow = (fractional) second count in the current week
//       dow = day number in the current week (sunday=0, monday=1 etc.)
//       sod = (fractional) second count in the current day
//       Early implementations used to reset the week count after a cycle of 1024 weeks and
//       provided the corresponding cycle count. Please refer to the SetGPS() memberfunctions
//       for further details.
// TT  : Terrestrial Time.
//       This timing system is based on TAI and provides the date/time at average sea level.
//       It has been introduced for observations from the surface of the Earth, to be consistent
//       with General Relativity. Since planetary orbits are very stable in time and not related
//       to the rotation of the Earth, TT is mainly used for observations of the Solar system.
//       TT was synchronized with TAI at 01-jan-1977 00:00:00 TAI, to indicate 00:00:32.184 in
//       order to provide a continuation of its (now obsolete) predecessor Ephemeris Time (ET).
//       This implies that always TT=TAI+32.184 sec.
//
// All Gregorian dates/times (e.g. 12-aug-1982 13:20:12) are treated on basis of
// the time scales mentioned above. So, there is no need for leap second treatment
// like this is the case for Coordinated Universal Time (UTC).
//
// In order to enable a precise measurement of elapsed time over (very) long periods,
// a continuous day counting system has been introduced, called the Julian Date.
// The Julian Date (JD) indicates the number of days since noon (12:00:00) on
// 01 jan -4712 (i.e. noon 01 jan 4713 BC), being day 0 of the Julian calendar.
// It is custom to couple the Julian Date to UT so that it serves astronomical observations.
// However, this NcTimestamp facility allows to use a continuous day counting system
// with all the supported time scales mentioned above.
//
// The Modified Julian Date (MJD) indicates the number of days since midnight (00:00:00)
// on 17-nov-1858, which corresponds to 2400000.5 days after day 0 of the
// Julian calendar.
//
// The Truncated Julian Date (TJD) corresponds to 2440000.5 days after day 0
// of the Julian calendar and consequently TJD=MJD-40000.
// This TJD date indication was used by the Vela and CGRO satellite missions in
// view of Gamma Ray Burst investigations.
//
// The Julian Epoch (JE) indicates the fractional elapsed Julian year count
// since the start of the Gregorian year count.
// A Julian year is defined to be 365.25 days and starts at 01-jan 12:00:00.
// As such, the integer part of JE corresponds to the usual Gregorian year count,
// apart from 01-jan before 12:00:00.
// So, 01-jan-1965 12:00:00 UT corresponds to JE=1965.0
//
// The Besselian Epoch (BE) indicates the fractional elapsed Besselian year count
// since the start of the Gregorian year count.
// A Besselian (or tropical) year is defined to be 365.242198781 days.
// The date 31-dec-1949 22:09:46.862 UT corresponds to BE=1950.0
//
// The Besselian and Julian epochs are used in astronomical catalogs
// to denote values of time varying observables like e.g. right ascension.
//
// Because of the fact that the Julian date indicators are all w.r.t. UT or TAI derived
// time scales, they provide an absolute time scale irrespective of timezone or daylight
// saving time (DST).
//
// In view of astronomical observations and positioning it is convenient
// to have also a UT equivalent related to stellar meridian transitions.
// This is achieved by the Greenwich Sidereal Time (GST).
// The GST is defined as the right ascension of the objects passing
// the meridian over Greenwich.
// Due to the rotation of the Earth around the Sun, a sidereal day
// lasts 86164.09 seconds (23h 56m 04.09s) compared to the mean solar
// day of 86400 seconds (24h).
// Furthermore, precession of the earth's spin axis results in the fact
// that the zero point of right ascension (vernal equinox) gradually
// moves along the celestial equator.
// In addition, tidal friction and ocean and atmospheric effects will
// induce seasonal variations in the earth's spin rate and polar motion
// of the earth's spin axis.
// Taking the above effects into account leads to what is called
// the Greenwich Mean Sidereal Time (GMST).
// In case also the nutation of the earth's spin axis is taken into
// account we speak of the Greenwich Apparent Sidereal Time (GAST).
//
// This NcTimestamp facility allows for picosecond precision, in view
// of time of flight analyses for particle physics experiments.
// For normal date/time indication the standard nanosecond precision
// will in general be sufficient.
// Picosecond precision can be obtained by invokation of GetPs() or GetDifference().
// Note that when the fractional JD, MJD and TJD counts are used instead
// of the integer (days,sec,ns) specification, the nanosecond precision
// may be lost due to computer accuracy w.r.t. floating point operations.
//
// The TTimeStamp EPOCH starts at 01-jan-1970 00:00:00
// which corresponds to JD=2440587.5 or the start of MJD=40587 or TJD=587.
// Using the corresponding MJD of this EPOCH allows construction of
// the yy-mm-dd hh:mm:ss:ns TTimeStamp from a given input (M/T)JD and time.
// Obviously this TTimeStamp implementation would prevent usage of values
// smaller than JD=2440587.5 or MJD=40587 or TJD=587.
// Furthermore, due to a limitation on the "seconds since the EPOCH start" count
// in TTimeStamp, the latest accessible date/time is until 19-jan-2038 02:14:07.
// However, this NcTimestamp facility provides support for the full range
// of (M/T)JD values, but the setting of the corresponding TTimeStamp parameters
// is restricted to the values allowed by the TTimeStamp implementation.
// For these earlier/later (M/T)JD values, the standard TTimeStamp parameters will
// be set corresponding to the start of the TTimeStamp EPOCH.
// This implies that for these earlier/later (M/T)JD values the TTimeStamp parameters
// do not match the Julian parameters of NcTimestamp.
// As such the standard TTimeStamp parameters do not appear on the print output
// when invoking the Date() memberfunction for these earlier/later (M/T)JD values.
//
// Examples :
// ==========
//
// Note : All TTimeStamp functionality is available as well.
//
// NcTimestamp t;
//
// t.Date();
//
// // Set a specific Date/Time in Universal Time (UT1)
// // without recording UTC nor the corresponding International Atomic Time (TAI)
// t.SetUT("22-08-2016","14:03:29.7358",0,"U");
//
// // Set a specific Date/Time in Universal Time (UTC)
// // without recording UT1 nor the corresponding International Atomic Time (TAI)
// t.SetUT("22-08-2016","14:03:29.7358",0,"N");
//
// // Set a specific Date/Time in Universal Time (UTC)
// // and also record UT1 and the corresponding International Atomic Time (TAI)
// // using manual "leap" and "dut" settings
// Int_t leap=34;
// Double_t dut=-0.14;
// t.SetUT("17-05-2011","05:43:18.31468",0,"M",leap,dut);
//
// // Set a specific Date/Time in Universal Time (UTC)
// // and also record UT1 and the corresponding International Atomic Time (TAI)
// // using automatic "leap" and "dut" settings from the IERS data files
// t.LoadUTCparameterFiles("leap.txt","dut.txt");
// t.SetUT("17-05-2011","05:43:18.31468",0,"A");
//
// // Set a specific Date/Time in Global Positioning System time (GPS)
// // and also record the corresponding Universal Times (UTC and UT1) and TAI
// // using automatic "leap" and "dut" settings from the IERS data files
// t.LoadUTCparameterFiles("leap.txt","dut.txt");
// t.SetTAI("GPS","17-05-2011","05:43:18.31468",0,"A",0,0);
//
// // Retrieve Julian Date to ns precision
// Int_t jd,jsec,jns;
// t.GetJD(jd,jsec,jns);
// // Get the remaining ps precision
// Int_t ps=GetPs();
//
// // Retrieve fractional Truncated Julian Date
// Double_t tjd=t.GetTJD();
//
// // Retrieve fractional Julian Epoch
// Double_t je=t.GetJE();
//
// // Set to a specific Modified Julian Date representing UTC
// // without recording the corresponding International Atomic Time (TAI)
// Int_t mjd=50537;
// Int_t mjsec=1528;
// Int_t mjns=185643;
// Int_t mjps=35;
// t.SetMJD(mjd,mjsec,mjns,mjps,"N");
//
// t.Date();
//
// // Set to a specific Modified Julian Date representing UTC
// // and also record the corresponding International Atomic Time (TAI)
// // using automatic "leap" and "dut" settings from the IERS data files
// Int_t mjd=58457;
// Int_t mjsec=1528;
// Int_t mjns=185643;
// Int_t mjps=35;
// t.LoadUTCparameterFiles("leap.txt","dut.txt");
// t.SetMJD(mjd,mjsec,mjns,mjps,"A");
//
// t.Date();
//
// // Set to a specific Modified Julian Date representing UT1
// // and also record the corresponding International Atomic Time (TAI)
// // using automatic "leap" and "dut" settings from the IERS data files
// Int_t mjd=58457;
// Int_t mjsec=1528;
// Int_t mjns=185643;
// Int_t mjps=35;
// t.LoadUTCparameterFiles("leap.txt","dut.txt");
// t.SetMJD(mjd,mjsec,mjns,mjps,"U");
//
// t.Date();
//
// // Time intervals for e.g. Trigger or Time Of Flight analysis
// NcEvent evt;
// NcTrack* tx=evt.GetTrack(5);
// NcTimestamp* timex=tx->GetTimestamp();
// Double_t dt=evt.GetDifference(timex,"ps");
// NcTimestamp trig((NcTimestamp)evt);
// trig.Add(0,0,2,173);
// NcSignal* sx=evt.GetHit(23);
// NcTimestamp* timex=sx->GetTimestamp();
// Double_t dt=trig.GetDifference(timex,"ps");
// Int_t d,s,ns,ps;
// trig.GetDifference(timex,d,s,ns,ps);
//
// // Some practical conversion facilities
// // Note : They don't influence the actual date/time settings
// //        and as such can also be invoked as NcTimestamp::Convert(...) etc...
// Int_t y=1921;
// Int_t m=7;
// Int_t d=21;
// Int_t hh=15;
// Int_t mm=23;
// Int_t ss=47;
// Int_t ns=811743;
// Double_t jdate=t.GetJD(y,m,d,hh,mm,ss,ns);
//
// Int_t days,secs,nsecs;
// Double_t date=421.1949327;
// t.Convert(date,days,secs,nsecs);
//
// days=875;
// secs=23;
// nsecs=9118483;
// date=t.Convert(days,secs,nsecs);
//
// Double_t mjdate=40563.823744;
// Double_t epoch=t.GetJE(mjdate,"mjd");
//
//--- Author: Nick van Eijndhoven 28-jan-2005 Utrecht University
//- Modified: Nick van Eijndhoven, IIHE-VUB Brussel, UTC June 28, 2026  11:10

Definition at line 19 of file NcTimestamp.h.

Public Member Functions
	NcTimestamp ()
	NcTimestamp (const NcTimestamp &t)
	NcTimestamp (TTimeStamp &t)
virtual	~NcTimestamp ()
void	Add (Double_t hours)
void	Add (Int_t d, Int_t s, Int_t ns, Int_t ps=0)
void	AddSec (Double_t seconds)
Double_t	Almanac (Double_t *dpsi=0, Double_t *deps=0, Double_t *eps=0, Double_t *dl=0, TString name="", Double_t *el=0, Double_t *eb=0, Double_t *dr=0, Double_t *value=0, Int_t j=0)
void	Convert (Double_t date, Int_t &days, Int_t &secs, Int_t &ns) const
void	Convert (Double_t h, Int_t &hh, Int_t &mm, Double_t &ss) const
void	Convert (Double_t h, Int_t &hh, Int_t &mm, Int_t &ss, Int_t &ns, Int_t &ps) const
Double_t	Convert (Int_t days, Int_t secs, Int_t ns) const
Double_t	Convert (Int_t hh, Int_t mm, Double_t ss) const
Double_t	Convert (Int_t hh, Int_t mm, Int_t ss, Int_t ns, Int_t ps) const
void	Date (Int_t mode=3, Double_t offset=0)
Double_t	GetBE ()
Double_t	GetBE (Double_t date, TString mode="jd") const
TString	GetDayTimeString (TString mode, Int_t ndig=0, Double_t offset=0, TString *date=0, TString *time=0, Bool_t full=kTRUE)
Int_t	GetDifference (NcTimestamp &t, Int_t &days, Int_t &sec, Int_t &ns, Int_t &ps, TString type="UT")
Double_t	GetDifference (NcTimestamp &t, TString u, Int_t mode=1, TString type="UT")
Int_t	GetDifference (NcTimestamp *t, Int_t &days, Int_t &sec, Int_t &ns, Int_t &ps, TString type="UT")
Double_t	GetDifference (NcTimestamp *t, TString u, Int_t mode=1, TString type="UT")
Double_t	GetEpoch (TString mode)
Double_t	GetGAST ()
Double_t	GetGMST ()
void	GetGMST (Int_t &hh, Int_t &mm, Int_t &ss, Int_t &ns, Int_t &ps)
TTree *	GetIERSdatabase () const
Double_t	GetJD ()
Double_t	GetJD (Double_t e, TString mode="J") const
void	GetJD (Int_t &jd, Int_t &sec, Int_t &ns)
Double_t	GetJD (Int_t y, Int_t m, Int_t d, Int_t hh, Int_t mm, Int_t ss, Int_t ns) const
Double_t	GetJE ()
Double_t	GetJE (Double_t date, TString mode="jd") const
Double_t	GetLAST (Double_t offset)
Double_t	GetLAT (Double_t offset)
Double_t	GetLMST (Double_t offset)
Double_t	GetLT (Double_t offset)
Double_t	GetMJD ()
Double_t	GetMJD (Double_t e, TString mode="J") const
void	GetMJD (Int_t &mjd, Int_t &sec, Int_t &ns)
Double_t	GetMJD (Int_t y, Int_t m, Int_t d, Int_t hh, Int_t mm, Int_t ss, Int_t ns) const
Int_t	GetNs () const
Int_t	GetPs () const
Double_t	GetTAI (Bool_t tmjd=kTRUE)
Int_t	GetTAI (Int_t &d, Int_t &sec, Int_t &ns, Int_t &ps, Bool_t tmjd=kTRUE)
Int_t	GetTAI (Int_t &hh, Int_t &mm, Int_t &ss, Int_t &ns, Int_t &ps, TString type="TAI")
Double_t	GetTJD ()
Double_t	GetTJD (Double_t e, TString mode="J") const
void	GetTJD (Int_t &tjd, Int_t &sec, Int_t &ns)
Double_t	GetTJD (Int_t y, Int_t m, Int_t d, Int_t hh, Int_t mm, Int_t ss, Int_t ns) const
Double_t	GetUnixTime ()
Double_t	GetUT ()
void	GetUT (Int_t &hh, Int_t &mm, Int_t &ss, Int_t &ns, Int_t &ps)
Int_t	GetUTCparameters (Int_t &leap, Double_t &dut) const
Int_t	GetUTCparameters (Int_t mjd, Int_t &leap, Double_t &dut) const
Bool_t	IsUT1 () const
TTree *	LoadUTCparameterFiles (TString leapfile="$(NCFS)/IERS/leap.txt", TString dutfile="$(NCFS)/IERS/dut.txt")
NcTimestamp &	operator= (const NcTimestamp &t)
void	PrintTime (Double_t h, Int_t ndig=1) const
void	SetEpoch (Double_t e, TString mode, TString utc="U", Int_t leap=0, Double_t dut=0)
Int_t	SetGPS (Int_t w, Int_t dow, Int_t sod, Int_t ns, Int_t ps, TString utc, Int_t leap, Double_t dut=0, Int_t icycle=0)
Int_t	SetGPS (Int_t w, Int_t sow, Int_t ns, Int_t ps, TString utc, Int_t leap, Double_t dut=0, Int_t icycle=0)
void	SetJD (Double_t jd, TString utc="U", Int_t leap=0, Double_t dut=0)
void	SetJD (Int_t jd, Int_t sec, Int_t ns, Int_t ps=0, TString utc="U", Int_t leap=0, Double_t dut=0)
void	SetLT (Double_t dt, Int_t y, Int_t d, Int_t s, Int_t ns=0, Int_t ps=0, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetLT (Double_t dt, Int_t y, Int_t m, Int_t d, Int_t hh, Int_t mm, Double_t s, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetLT (Double_t dt, Int_t y, Int_t m, Int_t d, Int_t hh, Int_t mm, Int_t ss, Int_t ns=0, Int_t ps=0, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetLT (Double_t dt, Int_t y, Int_t m, Int_t d, TString time, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetLT (Double_t dt, TString date, TString time, Int_t mode, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetMJD (Double_t mjd, TString utc="U", Int_t leap=0, Double_t dut=0)
void	SetMJD (Int_t mjd, Int_t sec, Int_t ns, Int_t ps=0, TString utc="U", Int_t leap=0, Double_t dut=0)
void	SetNs (Int_t ns)
void	SetPs (Int_t ps)
void	SetSystemTime ()
Int_t	SetTAI (Double_t tai, TString utc, Int_t leap, Double_t dut=0, Bool_t tmjd=kFALSE)
Int_t	SetTAI (Int_t d, Int_t sec, Int_t ns, Int_t ps, TString utc, Int_t leap, Double_t dut=0, Bool_t tmjd=kFALSE)
Int_t	SetTAI (TString type, TString date, TString time, Int_t mode, TString utc, Int_t leap, Double_t dut=0)
void	SetTJD (Double_t tjd, TString utc="U", Int_t leap=0, Double_t dut=0)
void	SetTJD (Int_t tjd, Int_t sec, Int_t ns, Int_t ps=0, TString utc="U", Int_t leap=0, Double_t dut=0)
Int_t	SetUnixTime (Double_t sec, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetUT (Int_t y, Int_t d, Int_t s, Int_t ns=0, Int_t ps=0, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetUT (Int_t y, Int_t m, Int_t d, Int_t hh, Int_t mm, Double_t s, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetUT (Int_t y, Int_t m, Int_t d, Int_t hh, Int_t mm, Int_t ss, Int_t ns=0, Int_t ps=0, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetUT (Int_t y, Int_t m, Int_t d, TString time, TString utc="A", Int_t leap=0, Double_t dut=0)
void	SetUT (TString date, TString time, Int_t mode, TString utc="A", Int_t leap=0, Double_t dut=0)

Protected Member Functions
Int_t	SetUTCparameters (TString utc, Int_t leap, Double_t dut)

Protected Attributes
Double_t	fDut
Int_t	fJns
Int_t	fJps
Int_t	fJsec
Int_t	fLeap
Int_t	fMJD
Int_t	fTmjd
Int_t	fTns
Int_t	fTps
Int_t	fTsec
Int_t	fUtc
TTree *	fUTCdata

Private Member Functions
void	AddCalc (Double_t hours, Bool_t utcpar=kTRUE)
void	AddCalc (Int_t d, Int_t s, Int_t ns, Int_t ps=0, Bool_t utcpar=kTRUE)
void	AddSecCalc (Double_t seconds, Bool_t utcpar=kTRUE)
void	FillJulian ()
void	FillTAI ()

Private Attributes
Int_t	fCalcns
Int_t	fCalcs

Constructor & Destructor Documentation

NcTimestamp() [1/3]

NcTimestamp::NcTimestamp

(

)

// Default constructor.
// Creation of an NcTimestamp object and initialisation of parameters.
// All attributes are initialised to the current UTC date/time as specified
// in the docs of TTimeStamp.

Definition at line 377 of file NcTimestamp.cxx.

NcTimestamp() [2/3]

NcTimestamp::NcTimestamp

(

TTimeStamp &

t

)

// Creation of an NcTimestamp object and initialisation of parameters.
// All attributes are initialised to the values of the input TTimeStamp.

Definition at line 400 of file NcTimestamp.cxx.

~NcTimestamp()

NcTimestamp::~NcTimestamp ( )

virtual

// Destructor to delete dynamically allocated memory.

Definition at line 421 of file NcTimestamp.cxx.

NcTimestamp() [3/3]

NcTimestamp::NcTimestamp

(

const NcTimestamp &

t

)

// Copy constructor.

Definition at line 436 of file NcTimestamp.cxx.

Member Function Documentation

Add() [1/2]

void NcTimestamp::Add

(

Double_t

hours

)

// Add (or subtract) a certain time difference to the current timestamp.
// The time difference is specified as a (fractional) number of hours.
// Subtraction can be achieved by entering a negative value as input argument.
//
// Note : For small time differences a better accuracy may be obtained by using
//        the memberfunction AddSec() or Add(d,s,ns,ps).
//
// The UTC parameters (i.e. Leap Seconds and dut=UT1-UTC) will be updated accordingly.

Definition at line 3229 of file NcTimestamp.cxx.

Add() [2/2]

void NcTimestamp::Add	(	Int_t	d,
		Int_t	s,
		Int_t	ns,
		Int_t	ps = 0 )

// Add (or subtract) a certain time difference to the current timestamp.
// Subtraction can be achieved by entering negative values as input arguments.
//
// The UTC parameters (i.e. Leap Seconds and dut=UT1-UTC) will be updated accordingly.
//
// The time difference is entered via the following input arguments :
//
// d  : elapsed number of days
// s  : (remaining) elapsed number of seconds
// ns : (remaining) elapsed number of nanoseconds
// ps : (remaining) elapsed number of picoseconds
//
// The specified d, s, ns and ps values will be used in an additive
// way to determine the time difference.
// So, specification of d=1, s=100, ns=0, ps=0 will result in the
// same time difference addition as d=0, s=24*3600+100, ns=0, ps=0.
// However, by making use of the latter the user should take care
// of possible integer overflow problems in the input arguments,
// which obviously will provide incorrect results.
//
// Note : ps=0 is the default value.

Definition at line 3198 of file NcTimestamp.cxx.

AddCalc() [1/2]

void NcTimestamp::AddCalc ( Double_t hours, Bool_t utcpar = kTRUE )

private

// Internal memberfunction to actually add (or subtract) a certain time difference
// to the current timestamp and (optionally) update also the UTC parameters.
// The time difference is specified as a (fractional) number of hours.
// Subtraction can be achieved by entering a negative value as input argument.
//
// Note : For small time differences a better accuracy may be obtained by using
//        the memberfunction AddSec() or Add(d,s,ns,ps).
//
// The argument "utcpar" controls whether the UTC parameters are updated (kTRUE) or not (kFALSE)
// via invokation of SetUTCparameters() after the addition (or subtraction) of the time difference.
// In general utcpar=kTRUE should obviously be used, but utcpar=kFALSE allows to
// add (or subtract) time differences in FillTAI() without creating an infinite loop.
//
// The default value is utcpar=kTRUE.

Definition at line 3357 of file NcTimestamp.cxx.

AddCalc() [2/2]

void NcTimestamp::AddCalc ( Int_t d, Int_t s, Int_t ns, Int_t ps = 0, Bool_t utcpar = kTRUE )

private

// Internal memberfunction to actually add (or subtract) a certain time difference
// to the current timestamp and (optionally) update also the UTC parameters.
// Subtraction can be achieved by entering negative values as input arguments.
//
// The time difference is entered via the following input arguments :
//
// d  : elapsed number of days
// s  : (remaining) elapsed number of seconds
// ns : (remaining) elapsed number of nanoseconds
// ps : (remaining) elapsed number of picoseconds
//
// The specified d, s, ns and ps values will be used in an additive
// way to determine the time difference.
// So, specification of d=1, s=100, ns=0, ps=0 will result in the
// same time difference addition as d=0, s=24*3600+100, ns=0, ps=0.
// However, by making use of the latter the user should take care
// of possible integer overflow problems in the input arguments,
// which obviously will provide incorrect results.
//
// The argument "utcpar" controls whether the UTC parameters are updated (kTRUE) or not (kFALSE)
// via invokation of SetUTCparameters() after the addition (or subtraction) of the time difference.
// In general utcpar=kTRUE should obviously be used, but utcpar=kFALSE allows to
// add (or subtract) time differences in FillTAI() without creating an infinite loop.
//
// The default values are ps=0 and utcpar=kTRUE.

Definition at line 3265 of file NcTimestamp.cxx.

AddSec()

void NcTimestamp::AddSec

(

Double_t

seconds

)

// Add (or subtract) a certain time difference to the current timestamp.
// The time difference is specified as a (fractional) number of seconds.
// Subtraction can be achieved by entering a negative value as input argument.
//
// Note : For very small time differences a better accuracy may be obtained by
//        using the memberfunction Add(d,s,ns,ps).
//
// The UTC parameters (i.e. Leap Seconds and dut=UT1-UTC) will be updated accordingly.

Definition at line 3247 of file NcTimestamp.cxx.

AddSecCalc()

void NcTimestamp::AddSecCalc ( Double_t seconds, Bool_t utcpar = kTRUE )

private

// Internal memberfunction to actually add (or subtract) a certain time difference
// to the current timestamp and (optionally) update also the UTC parameters.
// The time difference is specified as a (fractional) number of seconds.
// Subtraction can be achieved by entering a negative value as input argument.
//
// Note : For very small time differences a better accuracy may be obtained by
//        using the memberfunction Add(d,s,ns,ps).
//
// The argument "utcpar" controls whether the UTC parameters are updated (kTRUE) or not (kFALSE)
// via invokation of SetUTCparameters() after the addition (or subtraction) of the time difference.
// In general utcpar=kTRUE should obviously be used, but utcpar=kFALSE allows to
// add (or subtract) time differences in FillTAI() without creating an infinite loop.
//
// The default value is utcpar=kTRUE.

Definition at line 3393 of file NcTimestamp.cxx.

Almanac()

Double_t NcTimestamp::Almanac	(	Double_t *	dpsi = 0,
		Double_t *	deps = 0,
		Double_t *	eps = 0,
		Double_t *	dl = 0,
		TString	name = "",
		Double_t *	el = 0,
		Double_t *	eb = 0,
		Double_t *	dr = 0,
		Double_t *	value = 0,
		Int_t	j = 0 )

// Determination of various astronomical observables which may be needed
// for further calculations like e.g. precession of coordinates.
//
// The standard returned value is the "equation of the equinoxes"
// (i.e. the nutational shift of the RA of the vernal equinox) in seconds.
// The memberfunction arguments provide the possibility of retrieving
// optional returned values. The corresponding output observables are :
//
// dpsi    : Nutational shift in ecliptic longitude in arcseconds
// deps    : Nutational shift in ecliptic obliquity in arcseconds
// eps     : Mean obliquity of the ecliptic in arcseconds
// dl      : General precession in ecliptic longitude in arcseconds
// el      : Ecliptic longitude (in degrees) of the selected solar system body w.r.t. the equinox of date
// eb      : Ecliptic latitude (in degrees) of the selected solar system body w.r.t. the equinox of date
// dr      : Distance of the selected solar system body w.r.t. the selected origin
// value   : One of the additional observable values mentioned below
// j       : Index to select an observable value such that value=obs[j] as mentioned below
//
// Apart from some generic parameters, the user may select via the input argument "name"
// a specific solar system body for which various astronomical data are retrieved.
//
// Currently the following names are supported :
// ---------------------------------------------
// "Mercury", "Venus", "Earth", "Mars", "Jupiter", "Saturn", "Uranus", "Neptune", "Sun", "Moon".
//
// By specifying one of the above names, the geocentric ecliptic coordinates (el,eb,dr)
// of the specified body are provided w.r.t. the equinox of date.
// These values include the effect of precession, but not the effect due to nutation.
// In view of the accuracy of the used algorithms, the effects of light-time and aberration are
// not taken into account.
// By adding a "*" to the name, e.g. "Mars*", the corresponding heliocentric ecliptic coordinates are provided.
// In case "Moon*" is selected, the corresponding "Earth*" values are provided since the differences
// are negligible in view of the accuracy of the used algorithms.
//
// The distance "dr" is provided in Astronomical Units (AU), except for the selection "Moon" in which case
// the Earth-Moon distance is provided in kilometers.
//
// To obtain the ecliptic longitude for the J2000 equinox, the user may retrieve "dl" and subtract
// (after conversion to degrees) this value from "el".
// The user may correct the obtained ecliptic longitude for nutation by also retrieving "dpsi"
// and adding (after conversion to degrees) this value to the obtained "el".
//
// In addition to the ecliptic coordinates, also some heliocentric orbital parameters (see below)
// of the selected solar system body will be provided w.r.t. the equinox of date.
// These additional parameters are only provided for the major planets.
//
// In case a non-supported solar system body is specified, the unphysical values (720,720,-1) will be
// provided for (el,eb,dr).
// Furthermore, all heliocentric orbital angles will be set to the unphysical value of 720 degrees,
// and the Eccentricity and Semi major axis will both be set to -1.
// Note that for the retrieval of the Equation of Time (see below), the specification of the name
// of the solar system body is irrelevant, so this will always contain the correct value, if requested.
//
// Available additional observable values :
// ----------------------------------------
// obs[0]  : Semi major axis (in AU) of the orbit
// obs[1]  : Eccentricity of the orbit
// obs[2]  : Inclination (in degrees) of the orbit with the ecliptic
// obs[3]  : Mean ecliptic longitude (in degrees) of the ascending node
// obs[4]  : Mean orbital longitude (in degrees) of the perihelion
// obs[5]  : Mean orbital longitude (in degrees) of the body
// obs[6]  : Orbital argument (in degrees) of the perihelion
// obs[7]  : Mean orbital anomaly (in degrees) of the body
// obs[8]  : Equation of the center (in degrees)
// obs[9]  : True anomaly (in degrees) of the body
// obs[10] : Equation of Time (in seconds)
//
// All generic shifts are determined for the current timestamp with
// J2000.0 (i.e. 01-jan-2000 12:00:00 UT) as the reference epoch.
//
// Invokation example :
// --------------------
// NcTimestamp t;
// Double_t da,dpsi,deps,eps;
// da=t.Almanac(&dpsi,&deps,&eps);
//
// Notes :
// -------
// 1) The default values are dpsi=0, deps=0, eps=0, dl=0, name="", el=0, eb=0, dr=0, value=0 and j=0,
//    which implies that the default invokation Almanac() will only return the equation of the equinoxes in sec.
// 2) The definitions and expressions are the ones used in the book of Jean Meeus
//    "Astronomical Algorithms" (2nd edition of August 2009), esp. chapters 31-33.
//
// The nutation model used is the new one as documented in :
//   "The IAU Resolutions on Astronomical Reference Systems,
//    Time Scales and Earth Rotation Models".
// This document is freely available as Circular 179 (2005) of the
// United States Naval Observatory (USNO).
// (See : http://aa.usno.navy.mil/publications/docs).
//
// The change in ecliptic longitude (dpsi) and ecliptic obliquity (deps)
// are evaluated using the IAU 2000A nutation series expansion
// as provided in the USNO Circular 179.
// The new expression for the equation of the equinoxes is based on a series
// expansion and is the most accurate one known to date.
// The components are documented on p.17 of the USNO Circular 179.
//
// In the current implementation only the first 28 terms of the nutation series
// are used. This provides an accuracy of about 0.01 arcsec corresponding to 0.001 sec.
// In case a better accuracy is required, the series can be extended.
// The total series expansion consists of 1365 terms.
//
// Since all calculations are based on the JD, the TTimeStamp limitations
// do not apply here.

Definition at line 5037 of file NcTimestamp.cxx.

Convert() [1/6]

void NcTimestamp::Convert	(	Double_t	date,
		Int_t &	days,
		Int_t &	secs,
		Int_t &	ns ) const

// Convert date as fractional day count into integer days, secs and ns.
//
// Note : Due to computer accuracy the ns value may become inaccurate.
//
// The arguments represent the following :
// date : The input date as fractional day count
// days : Number of elapsed days
// secs : Remaining number of elapsed seconds
// ns   : Remaining fractional elapsed second in nanoseconds
//
// Note :
// ------
// This memberfunction only converts the input date into the corresponding
// integer parameters. It does NOT set the corresponding Julian parameters
// for the current NcTimestamp instance.
// As such the TTimeStamp limitations do NOT apply to this memberfunction.
// To set the Julian parameters for the current NcTimestamp instance,
// please use the corresponding SET() memberfunctions of either NcTimestamp
// or TTimeStamp.

Definition at line 921 of file NcTimestamp.cxx.

Convert() [2/6]

void NcTimestamp::Convert	(	Double_t	h,
		Int_t &	hh,
		Int_t &	mm,
		Double_t &	ss ) const

// Convert fractional hour count h into hh:mm:ss.s.
// The sign of the input value will be neglected, so h<0 will result in
// the same output values as h>0.
//
// Notes :
// -------
// 1) This memberfunction only converts the input "h" into the corresponding
//    hh:mm:ss.s values. It does NOT set the corresponding Julian parameters
//    for the current NcTimestamp instance.
//    As such the TTimeStamp limitations do NOT apply to this memberfunction.
//    To set the Julian parameters for the current NcTimestamp instance,
//    please use the corresponding SET() memberfunctions of either NcTimestamp
//    or TTimeStamp.
// 2) This facility can also be used to convert degrees in arcminutes etc...

Definition at line 1028 of file NcTimestamp.cxx.

Convert() [3/6]

void NcTimestamp::Convert	(	Double_t	h,
		Int_t &	hh,
		Int_t &	mm,
		Int_t &	ss,
		Int_t &	ns,
		Int_t &	ps ) const

// Convert fractional hour count h into hh:mm:ss:ns:ps.
// The sign of the input value will be neglected, so h<0 will result in
// the same output values as h>0.
//
// Note : Due to computer accuracy the ps value may become inaccurate.
//
// Note :
// ------
// This memberfunction only converts the input "h" into the corresponding
// integer parameters. It does NOT set the corresponding Julian parameters
// for the current NcTimestamp instance.
// As such the TTimeStamp limitations do NOT apply to this memberfunction.
// To set the Julian parameters for the current NcTimestamp instance,
// please use the corresponding SET() memberfunctions of either NcTimestamp
// or TTimeStamp.

Definition at line 988 of file NcTimestamp.cxx.

Convert() [4/6]

Double_t NcTimestamp::Convert	(	Int_t	days,
		Int_t	secs,
		Int_t	ns ) const

// Convert date in integer days, secs and ns into fractional day count.
//
// Note : Due to computer accuracy the ns precision may be lost.
//
// The input arguments represent the following :
// days : Number of elapsed days
// secs : Remaining number of elapsed seconds
// ns   : Remaining fractional elapsed second in nanoseconds
//
// Note :
// ------
// This memberfunction only converts the input integer parameters into the
// corresponding fractional day count. It does NOT set the corresponding
// Julian parameters for the current NcTimestamp instance.
// As such the TTimeStamp limitations do NOT apply to this memberfunction.
// To set the Julian parameters for the current NcTimestamp instance,
// please use the corresponding SET() memberfunctions of either NcTimestamp
// or TTimeStamp.

Definition at line 956 of file NcTimestamp.cxx.

Convert() [5/6]

Double_t NcTimestamp::Convert	(	Int_t	hh,
		Int_t	mm,
		Double_t	ss ) const

// Convert hh:mm:ss.s into fractional hour count.
// The sign of the input values will be neglected, so the output value
// will always correspond to a positive hh:mm:ss.s specification.
//
// Notes :
// -------
// 1) This memberfunction only converts the input hh:mm:ss.s data into the
//    corresponding fractional hour count. It does NOT set the corresponding
//    Julian parameters for the current NcTimestamp instance.
//    As such the TTimeStamp limitations do NOT apply to this memberfunction.
//    To set the Julian parameters for the current NcTimestamp instance,
//    please use the corresponding SET() memberfunctions of either NcTimestamp
//    or TTimeStamp.
// 2) This facility can also be used to convert ddd:mm:ss.s into fractional degrees.

Definition at line 1095 of file NcTimestamp.cxx.

Convert() [6/6]

Double_t NcTimestamp::Convert	(	Int_t	hh,
		Int_t	mm,
		Int_t	ss,
		Int_t	ns,
		Int_t	ps ) const

// Convert hh:mm:ss:ns:ps into fractional hour count.
// The sign of the input values will be neglected, so the output value
// will always correspond to a positive hh:mm:ss:ns:ps specification.
//
// Note : Due to computer accuracy the ps precision may be lost.
//
// Note :
// ------
// This memberfunction only converts the input integer parameters into the
// corresponding fractional hour count. It does NOT set the corresponding
// Julian parameters for the current NcTimestamp instance.
// As such the TTimeStamp limitations do NOT apply to this memberfunction.
// To set the Julian parameters for the current NcTimestamp instance,
// please use the corresponding SET() memberfunctions of either NcTimestamp
// or TTimeStamp.

Definition at line 1060 of file NcTimestamp.cxx.

Date()

void NcTimestamp::Date	(	Int_t	mode = 3,
		Double_t	offset = 0 )

// Print date/time info.
//
// mode = 1 ==> Only the date/time info for UT and GMST and the Equation of Time (EoT) and Equinoxes (EoX) is listed
//        2 ==> Only the Julian parameter info (incl. TAI MJD, if available) is listed
//        3 ==> Both UT, GMST, EoT, EoX and Julian parameter info (incl. TAI MJD, if available) is listed
//        4 ==> Only the UTC and TAI related date/time is listed
//       -1 ==> Only the date/time info for UT, GMST, EoT, EoX, GAT and GAST is listed
//       -3 ==> Both UT, GMST, EoT, EoX, GAT, GAST and Julian parameter info (incl. TAI MJD, if available) is listed
//
// offset : Local time offset from UT (and also GMST) in fractional hours.
//
// When an offset value is specified, the corresponding local times
// LMT and LMST (or LAT and LAST) are printed as well.
//
// The default values are mode=3 and offset=0.
//
// Note : In case the (M/T)JD falls outside the TTimeStamp range,
//        the yy-mm-dd info will be omitted.

Definition at line 502 of file NcTimestamp.cxx.

FillJulian()

void NcTimestamp::FillJulian ( )

private

// Internal memberfunction for calculation and setting of the Julian date/time parameters
// corresponding to the current TTimeStamp UTC date/time parameters.

Definition at line 1169 of file NcTimestamp.cxx.

FillTAI()

void NcTimestamp::FillTAI ( )

private

// Internal memberfunction to calculate and set the TAI day count parameters
// corresponding to the current NcTimestamp parameters.
// A separate MJD counting system is recorded for the TAI timing system.

Definition at line 2138 of file NcTimestamp.cxx.

GetBE() [1/2]

Double_t NcTimestamp::GetBE

(

)

// Provide the Besselian Epoch (BE) corresponding to the currently stored
// NcTimestamp date/time parameters.

Definition at line 1551 of file NcTimestamp.cxx.

GetBE() [2/2]

Double_t NcTimestamp::GetBE	(	Double_t	date,
		TString	mode = "jd" ) const

// Provide the Besselian Epoch (JE) corresponding to the specified date.
// The argument "mode" indicates the type of the argument "date".
//
// Available modes are :
// mode = "jd"  ==> date represents the Julian Date
//      = "mjd" ==> date represents the Modified Julian Date
//      = "tjd" ==> date represents the Truncated Julian Date
//
// The default is mode="jd".
//
// In case of invalid input, a value of -99999 is returned.
//
// Note :
// ------
// This memberfunction only provides the BE corresponding to the
// input arguments. It does NOT set the corresponding Julian parameters
// for the current NcTimestamp instance.
// As such the TTimeStamp limitations do NOT apply to this memberfunction.
// To set the Julian parameters for the current NcTimestamp instance,
// please use the corresponding SET() memberfunctions of either NcTimestamp
// or TTimeStamp.

Definition at line 882 of file NcTimestamp.cxx.

GetDayTimeString()

TString NcTimestamp::GetDayTimeString	(	TString	mode,
		Int_t	ndig = 0,
		Double_t	offset = 0,
		TString *	date = 0,
		TString *	time = 0,
		Bool_t	full = kTRUE )

// Get a string with date and time info for the date/time system specified via "mode".
// The returned string contains both the date and time info, but via the optional arguments
// "date" and "time" the user may also retrieve the date and time info separately, when a
// non-zero pointer value is provided.
//
// The following two date/time return formats are supported which can be selected via the input argument "full" :
//
// Example :
// ---------
// full=kTRUE  --> "Sun 20-Oct-2024 09:22:38.473 UTC" with date="Sun 20-Oct-2024 UTC" and time="09:22:38.473 UTC"
// full=kFALSE --> "20-10-2024 09:22:38.473" with date="20-10-2024" and time="09:22:38.473"
//
// The argument "mode" my have the values :
// "UT", "UT1", "UTC", "GAT", "GMST", "GAST", "GPS", "TAI", "TT", "LMT", "LAT", "LMST" or "LAST"
//
// Note that mode="UT" will refer to the main reference time currently in use,
// which is either "UT1" or "UTC".
// For further details see the documentation of SetUT().
//
// The argument "ndig" specifies the number of digits for the fractional
// seconds (e.g. ndig=6 corresponds to microsecond precision).
// No rounding will be performed, so a second count of 3.473 with ndig=1
// will appear as 03.4 on the output.
// Due to computer accuracy, precision on the picosecond level may get lost.
//
// offset : Local time offset from UT (and also GMST) in fractional hours.
//
// When an offset value is specified, the corresponding local times
// LMT and LMST (or LAT and LAST) are available as well.
//
// The default values are ndig=0, offset=0, day=0, time=0 and full=kTRUE.
//
// Notes :
// -------
// 1) TAI related date/time info (i.e. TAI, UTC, GPS and TT) is only available if
//    UTC parameters were provided.
//    Please refer to the memberfunctions LoadUTCparameterFiles() and GetUTCparameters() for details.
// 2) In case the MJD falls outside the TTimeStamp range, the date info will be omitted from the
//    combined date/time string and the (optional) date string will contain "---".

Definition at line 5673 of file NcTimestamp.cxx.

GetDifference() [1/4]

Int_t NcTimestamp::GetDifference	(	NcTimestamp &	t,
		Int_t &	days,
		Int_t &	sec,
		Int_t &	ns,
		Int_t &	ps,
		TString	type = "UT" )

// Provide the time difference w.r.t the NcTimestamp specified on the input.
// This memberfunction supports both very small (i.e. time of flight analysis
// for particle physics experiments) and very long (i.e. investigation of
// astrophysical phenomena) time intervals.
//
// The input argument "type" allows to specify the time recording system
// type : "UT"  ==> Time difference is provided according to the UT day counting
//        "TAI" ==> Time difference is provided according to the TAI day counting
//
// Note :
// ------
// In case type="TAI" and the TAI recording was not activated for one (or both) of the timestamps,
// the time difference will be set to 0.
// The UT recording is always available, and in case of a mix of UT1 and UTC as reference times
// for the two timestamps, the time difference will be determined on basis of UTC.
// Obviously, the time difference based on UTC will be less accurate than the time difference
// determined on basis of UT1 for both timestamps.
//
// The default value is type="UT", which is to be used for accurate astrophysical observations.
//
// Full picosecond accuracy is automatically obtained by using the same "type" as with which
// both the timestamps have been set (i.e. SetTAI() or SetGPS() and using type="TAI"
// or via the SetUT() related facilities and using type="UT").
// Otherwise, the time difference accuracy amounts to the one of dUT=UT-UTC.
// For timestamps that have the same UTC parameters (i.e. Leap Seconds and dUT=UT-UTC),
// both the "UT" and "TAI" systems provide the same time difference (within the dUT accuracy).
//
// The time difference is returned via the following output arguments :
// d  : elapsed number of days
// s  : remaining elapsed number of seconds
// ns : remaining elapsed number of nanoseconds
// ps : remaining elapsed number of picoseconds
//
// Note :
// ------
// The calculated time difference is the absolute value of the time interval.
// This implies that the values of d, s, ns and ps are always positive or zero.
//
// The integer return argument indicates whether the NcTimestamp specified
// on the input argument occurred earlier (-1), simultaneously (0) or later (1).
//
// In case of inconsistent input the time difference and the return argument will be set to 0.

Definition at line 3581 of file NcTimestamp.cxx.

GetDifference() [2/4]

Double_t NcTimestamp::GetDifference	(	NcTimestamp &	t,
		TString	u,
		Int_t	mode = 1,
		TString	type = "UT" )

// Provide the time difference w.r.t the NcTimestamp specified on the input
// in the units as specified by the TString "u" argument.
// A positive return value means that the NcTimestamp specified on the input
// argument occurred later, whereas a negative return value indicates an
// earlier occurence.
//
// The input argument "type" allows to specify the time recording system
// type : "UT"  ==> Time difference is provided according to the UT day counting
//        "TAI" ==> Time difference is provided according to the TAI day counting
//
// Note :
// ------
// In case type="TAI" and the TAI recording was not activated for one (or both) of the timestamps,
// the time difference will be set to 0.
// The UT recording is always available, and in case of a mix of UT1 and UTC as reference times
// for the two timestamps, the time difference will be determined on basis of UTC.
// Obviously, the time difference based on UTC will be less accurate than the time difference
// determined on basis of UT1 for both timestamps.
//
// The default value is type="UT", which is to be used for accurate astrophysical observations.
//
// Full picosecond accuracy is automatically obtained by using the same "type" as with which
// both the timestamps have been set (i.e. SetTAI() or SetGPS() and using type="TAI"
// or via the SetUT() related facilities and using type="UT").
// Otherwise, the time difference accuracy amounts to the one of dUT=UT-UTC.
// For timestamps that have the same UTC parameters (i.e. Leap Seconds and dUT=UT-UTC),
// both the "UT" and "TAI" systems provide the same time difference (within the dUT accuracy).
//
// The units may be specified as :
// u = "d"  ==> Time difference returned as (fractional) day count
//     "s"  ==> Time difference returned as (fractional) second count
//     "ns" ==> Time difference returned as (fractional) nanosecond count
//     "ps" ==> Time difference returned as picosecond count
//
// It may be clear that for a time difference of several days, the picosecond
// and even the nanosecond accuracy may be lost.
// To cope with this, the "mode" argument has been introduced to allow
// timestamp comparison on only the specified units.
//
// The following operation modes are supported :
// mode = 1 : Full time difference is returned in specified units
//        2 : Time difference is returned in specified units by
//            neglecting the elapsed time for the larger units than the
//            ones specified.
//        3 : Time difference is returned in specified units by only
//            comparing the timestamps on the level of the specified units.
//
// Example :
// ---------
// NcTimestamp t1; // Corresponding to days=3, secs=501, ns=31, ps=7
// NcTimestamp t2; // Corresponding to days=5, secs=535, ns=12, ps=15
//
// The statement : Double_t val=t1.GetDifference(t2,....)
// would return the following values :
// val=(2*24*3600)+34-(19*1e-9)+(8*1e-12) for u="s" and mode=1
// val=34-(19*1e-9)+(8*1e-12)             for u="s" and mode=2
// val=34                                 for u="s" and mode=3
// val=-19                                for u="ns" and mode=3
//
// The default is mode=1.
//
// In case of inconsistent input the time difference will be set to 0.

Definition at line 3799 of file NcTimestamp.cxx.

GetDifference() [3/4]

Int_t NcTimestamp::GetDifference	(	NcTimestamp *	t,
		Int_t &	days,
		Int_t &	sec,
		Int_t &	ns,
		Int_t &	ps,
		TString	type = "UT" )

// Provide the time difference w.r.t the NcTimestamp specified on the input.
// This memberfunction supports both very small (i.e. time of flight analysis
// for particle physics experiments) and very long (i.e. investigation of
// astrophysical phenomena) time intervals.
//
// The input argument "type" allows to specify the time recording system
// type : "UT"  ==> Time difference is provided according to the UT day counting
//        "TAI" ==> Time difference is provided according to the TAI day counting
//
// Note :
// ------
// In case type="TAI" and the TAI recording was not activated for one (or both) of the timestamps,
// the time difference will be set to 0.
// The UT recording is always available, and in case of a mix of UT1 and UTC as reference times
// for the two timestamps, the time difference will be determined on basis of UTC.
// Obviously, the time difference based on UTC will be less accurate than the time difference
// determined on basis of UT1 for both timestamps.
//
// The default value is type="UT", which is to be used for accurate astrophysical observations.
//
// Full picosecond accuracy is automatically obtained by using the same "type" as with which
// both the timestamps have been set (i.e. SetTAI() or SetGPS() and using type="TAI"
// or via the SetUT() related facilities and using type="UT").
// Otherwise, the time difference accuracy amounts to the one of dUT=UT-UTC.
// For timestamps that have the same UTC parameters (i.e. Leap Seconds and dUT=UT-UTC),
// both the "UT" and "TAI" systems provide the same time difference (within the dUT accuracy).
//
// The time difference is returned via the following output arguments :
// d  : elapsed number of days
// s  : remaining elapsed number of seconds
// ns : remaining elapsed number of nanoseconds
// ps : remaining elapsed number of picoseconds
//
// Note :
// ------
// The calculated time difference is the absolute value of the time interval.
// This implies that the values of d, s, ns and ps are always positive or zero.
//
// The integer return argument indicates whether the NcTimestamp specified
// on the input argument occurred earlier (-1), simultaneously (0) or later (1).
//
// In case of inconsistent input the time difference and the return argument will be set to 0.

Definition at line 3426 of file NcTimestamp.cxx.

GetDifference() [4/4]

Double_t NcTimestamp::GetDifference	(	NcTimestamp *	t,
		TString	u,
		Int_t	mode = 1,
		TString	type = "UT" )

// Provide the time difference w.r.t the NcTimestamp specified on the input
// in the units as specified by the TString "u" argument.
// A positive return value means that the NcTimestamp specified on the input
// argument occurred later, whereas a negative return value indicates an
// earlier occurence.
//
// The input argument "type" allows to specify the time recording system
// type : "UT"  ==> Time difference is provided according to the UT day counting
//        "TAI" ==> Time difference is provided according to the TAI day counting
//
// Note :
// ------
// In case type="TAI" and the TAI recording was not activated for one (or both) of the timestamps,
// the time difference will be set to 0.
// The UT recording is always available, and in case of a mix of UT1 and UTC as reference times
// for the two timestamps, the time difference will be determined on basis of UTC.
// Obviously, the time difference based on UTC will be less accurate than the time difference
// determined on basis of UT1 for both timestamps.
//
// The default value is type="UT", which is to be used for accurate astrophysical observations.
//
// Full picosecond accuracy is automatically obtained by using the same "type" as with which
// both the timestamps have been set (i.e. SetTAI() or SetGPS() and using type="TAI"
// or via the SetUT() related facilities and using type="UT").
// Otherwise, the time difference accuracy amounts to the one of dUT=UT-UTC.
// For timestamps that have the same UTC parameters (i.e. Leap Seconds and dUT=UT-UTC),
// both the "UT" and "TAI" systems provide the same time difference (within the dUT accuracy).
//
// The units may be specified as :
// u = "d"  ==> Time difference returned as (fractional) day count
//     "s"  ==> Time difference returned as (fractional) second count
//     "ns" ==> Time difference returned as (fractional) nanosecond count
//     "ps" ==> Time difference returned as picosecond count
//
// It may be clear that for a time difference of several days, the picosecond
// and even the nanosecond accuracy may be lost.
// To cope with this, the "mode" argument has been introduced to allow
// timestamp comparison on only the specified units.
//
// The following operation modes are supported :
// mode = 1 : Full time difference is returned in specified units
//        2 : Time difference is returned in specified units by
//            neglecting the elapsed time for the larger units than the
//            ones specified.
//        3 : Time difference is returned in specified units by only
//            comparing the timestamps on the level of the specified units.
//
// Example :
// ---------
// NcTimestamp t1; // Corresponding to days=3, secs=501, ns=31, ps=7
// NcTimestamp t2; // Corresponding to days=5, secs=535, ns=12, ps=15
//
// The statement : Double_t val=t1.GetDifference(t2,....)
// would return the following values :
// val=(2*24*3600)+34-(19*1e-9)+(8*1e-12) for u="s" and mode=1
// val=34-(19*1e-9)+(8*1e-12)             for u="s" and mode=2
// val=34                                 for u="s" and mode=3
// val=-19                                for u="ns" and mode=3
//
// The default is mode=1.
//
// In case of inconsistent input the time difference will be set to 0.

Definition at line 3633 of file NcTimestamp.cxx.

GetEpoch()

Double_t NcTimestamp::GetEpoch

(

TString

mode

)

// Provide the corresponding epoch value.
// Via the input argument "mode" the user can specify the type of epoch
//
// mode = "B" ==> Besselian epoch
//        "J" ==> Julian epoch

Definition at line 5655 of file NcTimestamp.cxx.

GetGAST()

Double_t NcTimestamp::GetGAST

(

)

// Provide the corrresponding Greenwich Apparent Sideral Time (GAST)
// in fractional hours.
// In case a hh:mm:ss.sss format is needed, please invoke the Convert()
// memberfunction for conversion of the provided fractional hour value.
//
// The GAST is the GMST corrected for the shift of the vernal equinox
// due to nutation. The right ascension component of the nutation correction
// of the vernal equinox is called the "equation of the equinoxes".
// So we have :
//
//      GAST = GMST + (equation of the equinoxes)
//
// The equation of the equinoxes is determined via the Almanac() memberfunction.
//
// Since GMST is based on the MJD, the TTimeStamp limitations do not apply here.

Definition at line 4462 of file NcTimestamp.cxx.

GetGMST() [1/2]

Double_t NcTimestamp::GetGMST

(

)

// Provide the corrresponding Greenwich Mean Sideral Time (GMST)
// in fractional hours.
// This facility is based on the MJD, so the TTimeStamp limitations
// do not apply here.

Definition at line 4442 of file NcTimestamp.cxx.

GetGMST() [2/2]

void NcTimestamp::GetGMST	(	Int_t &	hh,
		Int_t &	mm,
		Int_t &	ss,
		Int_t &	ns,
		Int_t &	ps )

// Provide the corrresponding Greenwich Mean Sideral Time (GMST).
// The algorithm used is the one described at p. 83 of the book
// Astronomy Methods by Hale Bradt.
// This facility is based on the MJD, so the TTimeStamp limitations
// do not apply here.

Definition at line 4390 of file NcTimestamp.cxx.

GetIERSdatabase()

TTree * NcTimestamp::GetIERSdatabase

(

)

const

// Provide the pointer to the internal IERS database TTree.
// In case no database TTree exists the pointer value 0 will be returned.
// For details please refer to the member function LoadUTCparameterFiles().

Definition at line 3185 of file NcTimestamp.cxx.

GetJD() [1/4]

Double_t NcTimestamp::GetJD

(

)

// Provide the (fractional) Julian Date (JD) corresponding to the currently
// stored NcTimestamp date/time parameters.
//
// Due to computer accuracy the ns precision may be lost.
// It is advised to use the (jd,sec,ns) getter instead.

Definition at line 1515 of file NcTimestamp.cxx.

GetJD() [2/4]

Double_t NcTimestamp::GetJD	(	Double_t	e,
		TString	mode = "J" ) const

// Provide the fractional Julian Date from epoch e.
// The sort of epoch may be specified via the "mode" parameter.
//
// mode = "J" ==> Julian epoch
//        "B" ==> Besselian epoch
//
// The default value is mode="J".

Definition at line 4976 of file NcTimestamp.cxx.

GetJD() [3/4]

void NcTimestamp::GetJD	(	Int_t &	jd,
		Int_t &	sec,
		Int_t &	ns )

// Provide the Julian Date (JD) and time corresponding to the currently
// stored NcTimestamp date/time parameters.
//
// The returned arguments represent the following :
// jd  : The Julian date.
// sec : The number of seconds elapsed within the JD.
// ns  : The remaining fractional number of seconds (in ns) elapsed within the JD.

Definition at line 1489 of file NcTimestamp.cxx.

GetJD() [4/4]

Double_t NcTimestamp::GetJD	(	Int_t	y,
		Int_t	m,
		Int_t	d,
		Int_t	hh,
		Int_t	mm,
		Int_t	ss,
		Int_t	ns ) const

// Provide the (fractional) Julian Date (JD) corresponding to the UT date
// and time in the Gregorian calendar as specified by the input arguments.
//
// The input arguments represent the following :
// y  : year in UT (e.g. 1952, 2003 etc...)
// m  : month in UT (1=jan  2=feb etc...)
// d  : day in UT (1-31)
// hh : elapsed hours in UT (0-23)
// mm : elapsed minutes in UT (0-59)
// ss : elapsed seconds in UT (0-59)
// ns : remaining fractional elapsed second of UT in nanosecond
//
// This algorithm is valid for all AD dates in the Gregorian calendar
// following the recipe of R.W. Sinnott Sky & Telescope 82, (aug. 1991) 183.
// See also http://scienceworld.wolfram.com/astronomy/JulianDate.html
//
// In case of invalid input, a value of -1 is returned.
//
// Note :
// ------
// This memberfunction only provides the JD corresponding to the
// UT input arguments. It does NOT set the corresponding Julian parameters
// for the current NcTimestamp instance.
// As such the TTimeStamp limitations do NOT apply to this memberfunction.
// To set the Julian parameters for the current NcTimestamp instance,
// please use the corresponding SET() memberfunctions of either NcTimestamp
// or TTimeStamp.

Definition at line 708 of file NcTimestamp.cxx.

GetJE() [1/2]

Double_t NcTimestamp::GetJE

(

)

// Provide the Julian Epoch (JE) corresponding to the currently stored
// NcTimestamp date/time parameters.

Definition at line 1537 of file NcTimestamp.cxx.

GetJE() [2/2]

Double_t NcTimestamp::GetJE	(	Double_t	date,
		TString	mode = "jd" ) const

// Provide the Julian Epoch (JE) corresponding to the specified date.
// The argument "mode" indicates the type of the argument "date".
//
// Available modes are :
// mode = "jd"  ==> date represents the Julian Date
//      = "mjd" ==> date represents the Modified Julian Date
//      = "tjd" ==> date represents the Truncated Julian Date
//
// The default is mode="jd".
//
// In case of invalid input, a value of -99999 is returned.
//
// Note :
// ------
// This memberfunction only provides the JE corresponding to the
// input arguments. It does NOT set the corresponding Julian parameters
// for the current NcTimestamp instance.
// As such the TTimeStamp limitations do NOT apply to this memberfunction.
// To set the Julian parameters for the current NcTimestamp instance,
// please use the corresponding SET() memberfunctions of either NcTimestamp
// or TTimeStamp.

Definition at line 843 of file NcTimestamp.cxx.

GetLAST()

Double_t NcTimestamp::GetLAST

(

Double_t

offset

)

// Provide the corresponding Local Apparent Sidereal Time (LAST) in fractional hours.
// The "offset" denotes the time difference in (fractional) hours w.r.t. GAST.
// A sidereal day corresponds to 23h 56m 04.09s (i.e. 86164.09s) mean solar time.
// The definition of GMST and GAST is such that a sidereal clock corresponds with
// 24 sidereal hours per revolution of the Earth.
// As such, local time offsets w.r.t. UT, GMST and GAST can be treated similarly.
//
// In case a hh:mm:ss.sss format is needed, please use the Convert() facility.

Definition at line 4611 of file NcTimestamp.cxx.

GetLAT()

Double_t NcTimestamp::GetLAT

(

Double_t

offset

)

// Provide the corresponding Local Apparent (solar) Time in fractional hours.
// The "offset" denotes the time difference in (fractional) hours of the
// UT based (aka mean solar) Local Time w.r.t. UT.
//
// Note : The UT based local time is often referred to as Local Mean Time (LMT).
//
// The local apparent time (LAT) is based on the actual observed location of the Sun,
// which may deviate considerably from the UT based local mean time (LMT) due to the
// movement of the Earth around the Sun and the orientation of the Earth's axis.
//
// The difference between the Local Apparent Time (LAT) and Local Mean Time (LMT)
// is called the Equation of Time (EoT), with EoT=LAT-LMT.
// See also the member function Almanac().
//
// In case a hh:mm:ss format is needed, please use the Convert() facility.

Definition at line 4535 of file NcTimestamp.cxx.

GetLMST()

Double_t NcTimestamp::GetLMST

(

Double_t

offset

)

// Provide the corresponding Local Mean Sidereal Time (LMST) in fractional hours.
// The "offset" denotes the time difference in (fractional) hours w.r.t. GMST.
// A sidereal day corresponds to 23h 56m 04.09s (i.e. 86164.09s) mean solar time.
// The definition of GMST is such that a sidereal clock corresponds with
// 24 sidereal hours per revolution of the Earth.
// As such, local time offsets w.r.t. UT and GMST can be treated similarly.
//
// In case a hh:mm:ss format is needed, please use the Convert() facility.

Definition at line 4579 of file NcTimestamp.cxx.

GetLT()

Double_t NcTimestamp::GetLT

(

Double_t

offset

)

// Provide the corresponding UT based (aka mean solar) Local Time in fractional hours.
// The "offset" denotes the time difference in (fractional) hours w.r.t. UT.
// A mean solar day lasts 24h (i.e. 86400s), so this local time is directly
// related to UT, which is obtained when offset=0.
//
// Note : This local time is often referred to as Local Mean Time (LMT).
//
// In case a hh:mm:ss format is needed, please use the Convert() facility.

Definition at line 4503 of file NcTimestamp.cxx.

GetMJD() [1/4]

Double_t NcTimestamp::GetMJD

(

)

// Provide the (fractional) Modified Julian Date (MJD) corresponding to the
// currently stored NcTimestamp date/time parameters.
//
// Due to computer accuracy the ns precision may be lost.
// It is advised to use the (mjd,sec,ns) getter instead.

Definition at line 1221 of file NcTimestamp.cxx.

GetMJD() [2/4]

Double_t NcTimestamp::GetMJD	(	Double_t	e,
		TString	mode = "J" ) const

// Provide the fractional Modified Julian Date from epoch e.
// The sort of epoch may be specified via the "mode" parameter.
//
// mode = "J" ==> Julian epoch
//        "B" ==> Besselian epoch
//
// The default value is mode="J".

Definition at line 4999 of file NcTimestamp.cxx.

GetMJD() [3/4]

void NcTimestamp::GetMJD	(	Int_t &	mjd,
		Int_t &	sec,
		Int_t &	ns )

// Provide the Modified Julian Date (MJD) and time corresponding to the
// currently stored NcTimestamp date/time parameters.
//
// The returned arguments represent the following :
// mjd : The modified Julian date.
// sec : The number of seconds elapsed within the MJD.
// ns  : The remaining fractional number of seconds (in ns) elapsed within the MJD.

Definition at line 1196 of file NcTimestamp.cxx.

GetMJD() [4/4]

Double_t NcTimestamp::GetMJD	(	Int_t	y,
		Int_t	m,
		Int_t	d,
		Int_t	hh,
		Int_t	mm,
		Int_t	ss,
		Int_t	ns ) const

// Provide the (fractional) Modified Julian Date corresponding to the UT
// date and time in the Gregorian calendar as specified by the input arguments.
//
// The input arguments represent the following :
// y  : year in UT (e.g. 1952, 2003 etc...)
// m  : month in UT (1=jan  2=feb etc...)
// d  : day in UT (1-31)
// hh : elapsed hours in UT (0-23)
// mm : elapsed minutes in UT (0-59)
// ss : elapsed seconds in UT (0-59)
// ns : remaining fractional elapsed second of UT in nanosecond
//
// This algorithm is valid for all AD dates in the Gregorian calendar
// following the recipe of R.W. Sinnott Sky & Telescope 82, (aug. 1991) 183.
// See also http://scienceworld.wolfram.com/astronomy/JulianDate.html
//
// In case of invalid input, a value of -1 is returned.
//
// Note :
// ------
// This memberfunction only provides the MJD corresponding to the
// UT input arguments. It does NOT set the corresponding Julian parameters
// for the current NcTimestamp instance.
// As such the TTimeStamp limitations do NOT apply to this memberfunction.
// To set the Julian parameters for the current NcTimestamp instance,
// please use the corresponding SET() memberfunctions of either NcTimestamp
// or TTimeStamp.

Definition at line 757 of file NcTimestamp.cxx.

GetNs()

Int_t NcTimestamp::GetNs

(

)

const

// Provide the remaining fractional number of seconds in nanosecond precision.
// This function allows trigger/timing analysis for (astro)particle physics
// experiments.
// Note : For additional accuracy see also GetPs().

Definition at line 2733 of file NcTimestamp.cxx.

GetPs()

Int_t NcTimestamp::GetPs

(

)

const

// Provide remaining fractional number of nanoseconds in picoseconds.
// This function allows time of flight analysis for particle physics
// experiments.

Definition at line 2763 of file NcTimestamp.cxx.

GetTAI() [1/3]

Double_t NcTimestamp::GetTAI

(

Bool_t

tmjd = kTRUE

)

// Provide the (fractional) number of elapsed TAI days corresponding to the
// currently stored NcTimestamp date/time parameters.
//
// Due to computer accuracy the ns precision may be lost.
// It is advised to use the (d,sec,ns,ps) getter instead.
//
// The input argument :
// tmjd : kTRUE  ==> Provide the MJD equivalent TAI day count.
//        kFALSE ==> Count the elapsed days since the TAI start epoch 01-jan-1958 00:00:00 UT (MJD=36204).
//
// The default value is tmjd=kTRUE.
//
// Notes :
// -------
// 1) In case TAI recording was not activated, the value 0 will be returned.
// 2) In case tmjd=kFALSE and the current timestamp lies before the TAI start epoch,
//    a negative value is returned.

Definition at line 1334 of file NcTimestamp.cxx.

GetTAI() [2/3]

Int_t NcTimestamp::GetTAI	(	Int_t &	d,
		Int_t &	sec,
		Int_t &	ns,
		Int_t &	ps,
		Bool_t	tmjd = kTRUE )

// Provide the TAI day count and time corresponding to the currently stored
// NcTimestamp date/time parameters.
// The return value indicates whether the TAI and UTC parameters were actually
// set manually (1), automatically (-1) or not (0).
// In the latter case only UT time recording is available.
//
// The (returned) arguments represent the following :
// d    : The number of TAI days elapsed.
// sec  : The number of seconds elapsed within the TAI day.
// ns   : The remaining fractional number of seconds (in ns) elapsed within the TAI day.
// ps   : The remaining fractional number of nanoseconds (in picoseconds) elapsed within the TAI day.
// tmjd : kTRUE  ==> Provide the MJD equivalent TAI day count.
//        kFALSE ==> Count the elapsed days since the TAI start epoch 01-jan-1958 00:00:00 UT (MJD=36204).
//
// The default value is mjd=kTRUE.
//
// Notes :
// -------
// 1) In case TAI recording was not activated, all returned values will be zero.
// 2) In case tmjd=kFALSE and the current timestamp lies before the TAI start epoch,
//    a negative day count is returned.

Definition at line 1285 of file NcTimestamp.cxx.

GetTAI() [3/3]

Int_t NcTimestamp::GetTAI	(	Int_t &	hh,
		Int_t &	mm,
		Int_t &	ss,
		Int_t &	ns,
		Int_t &	ps,
		TString	type = "TAI" )

// Provide the corrresponding TAI time as hh:mm:ss:ns:ps.
// The return value indicates whether the TAI and UTC parameters were actually
// set manually (1), automatically (-1) or not (0).
// In the latter case only UT time recording is available.
//
// The "type" input argument represents the following :
// type : TAI ==> Time provided is the International Atomic Time
//        UTC ==> Time provided is the Coordinated Universal Time
//        GPS ==> Time provided is the Global Positioning System time
//        TT  ==> Time provided is the Terrestrial Time
//
// The default value is type="TAI".
//
// Notes :
// -------
// 1) In case TAI recording was not activated or the specified "type" is unknown,
//    all returned values will be zero.
// 3) This facility is based on the TAI day count, so the TTimeStamp limitations
//    do not apply here.

Definition at line 1371 of file NcTimestamp.cxx.

GetTJD() [1/4]

Double_t NcTimestamp::GetTJD

(

)

// Provide the (fractional) Truncated Julian Date (TJD) corresponding to the
// currently stored NcTimestamp date/time parameters.
//
// Due to computer accuracy the ns precision may be lost.
// It is advised to use the (tjd,sec,ns) getter instead.

Definition at line 1263 of file NcTimestamp.cxx.

GetTJD() [2/4]

Double_t NcTimestamp::GetTJD	(	Double_t	e,
		TString	mode = "J" ) const

// Provide the fractional Truncated Julian Date from epoch e.
// The sort of epoch may be specified via the "mode" parameter.
//
// mode = "J" ==> Julian epoch
//        "B" ==> Besselian epoch
//
// The default value is mode="J".

Definition at line 5018 of file NcTimestamp.cxx.

GetTJD() [3/4]

void NcTimestamp::GetTJD	(	Int_t &	tjd,
		Int_t &	sec,
		Int_t &	ns )

// Provide the Truncated Julian Date (TJD) and time corresponding to the
// currently stored NcTimestamp date/time parameters.
//
// The returned arguments represent the following :
// tjd : The truncated Julian date.
// sec : The number of seconds elapsed within the TJD.
// ns  : The remaining fractional number of seconds (in ns) elapsed within the TJD.

Definition at line 1243 of file NcTimestamp.cxx.

GetTJD() [4/4]

Double_t NcTimestamp::GetTJD	(	Int_t	y,
		Int_t	m,
		Int_t	d,
		Int_t	hh,
		Int_t	mm,
		Int_t	ss,
		Int_t	ns ) const

// Provide the (fractional) Truncated Julian Date corresponding to the UT
// date and time in the Gregorian calendar as specified by the input arguments.
//
// The input arguments represent the following :
// y  : year in UT (e.g. 1952, 2003 etc...)
// m  : month in UT (1=jan  2=feb etc...)
// d  : day in UT (1-31)
// hh : elapsed hours in UT (0-23)
// mm : elapsed minutes in UT (0-59)
// ss : elapsed seconds in UT (0-59)
// ns : remaining fractional elapsed second of UT in nanosecond
//
// This algorithm is valid for all AD dates in the Gregorian calendar
// following the recipe of R.W. Sinnott Sky & Telescope 82, (aug. 1991) 183.
// See also http://scienceworld.wolfram.com/astronomy/JulianDate.html
//
// In case of invalid input, a value of -1 is returned.
//
// Note :
// ------
// This memberfunction only provides the TJD corresponding to the
// UT input arguments. It does NOT set the corresponding Julian parameters
// for the current NcTimestamp instance.
// As such the TTimeStamp limitations do NOT apply to this memberfunction.
// To set the Julian parameters for the current NcTimestamp instance,
// please use the corresponding SET() memberfunctions of either NcTimestamp
// or TTimeStamp.

Definition at line 800 of file NcTimestamp.cxx.

GetUnixTime()

Double_t NcTimestamp::GetUnixTime

(

)

// Provide the Unix time.
// Unix Time is also called POSIX Time or UNIX Epoch Time and represents
// the (fractional) elapsed second count since the start of the Unix Epoch.
//
// Unix Time is closely releated to UTC and represents the (fractional) elapsed second count
// since the start of the Unix Epoch, in which every Unix Time day contains exactly 86400 seconds.
// This implies that for Unix Time the UTC leap seconds should be ignored as explained below.
// The UNIX Time EPOCH starts at 01-jan-1970 00:00:00 UTC which corresponds to JD=2440587.5
// (i.e. the start of MJD=40587).
// Synchronization with UTC is obtained by continuing the second count when a UTC leap second
// occurs and then the Unix Time count jumps up or down 1 second at the beginning of the new
// day after the UTC leap second has expired.
// In case of a negative UTC leap second (which has not occurred so far) this would result
// in a jump forward of 1 second in Unix Time, introducing a "gap" of 1 second in the timing
// at the start of the new day.
// In case of a positive UTC leap second this results in a jump back of 1 second in Unix Time
// at the start of a new day.
// In this case there exist 2 ambiguous Unix Times over a 1 second time interval,
// namely at the beginning of the introduction of the UTC leap second and at the moment that
// the UTC leap second expires, i.e. the start of the new day.
//
// Due to a limitation on the "seconds since the EPOCH start" count,
// the latest accessible date/time is until 19-jan-2038 02:14:07 UT.
//
// Due to computer accuracy the ns precision may be lost.
// For better precision it is advised to use the other date/time Get() facilities instead.

Definition at line 1429 of file NcTimestamp.cxx.

GetUT() [1/2]

Double_t NcTimestamp::GetUT

(

)

// Provide the corresponding UT reference time in fractional hours.
// This facility is based on the MJD, so the TTimeStamp limitations
// do not apply here.

Definition at line 4371 of file NcTimestamp.cxx.

GetUT() [2/2]

void NcTimestamp::GetUT	(	Int_t &	hh,
		Int_t &	mm,
		Int_t &	ss,
		Int_t &	ns,
		Int_t &	ps )

// Provide the corresponding UT reference time as hh:mm:ss:ns:ps.
// This facility is based on the MJD, so the TTimeStamp limitations
// do not apply here.

Definition at line 4348 of file NcTimestamp.cxx.

GetUTCparameters() [1/2]

Int_t NcTimestamp::GetUTCparameters	(	Int_t &	leap,
		Double_t &	dut ) const

// Provide the values of the UTC parameters (i.e. Leap Seconds and dut=UT1-UTC).
//
// The return value indicates whether the UTC parameters are actually set or not,
// and has the following conventions :
//
//  1 --> The UTC parameters were set manually and used to determine UT1 from UTC.
//  0 --> No UTC parameters were provided and the stored reference time is UTC.
// -1 --> The UTC parameters were retrieved from the IERS data files and used to determine UT1 from UTC.
// -2 --> The UTC parameters were retrieved from the IERS data files and used to determine all TAI times from UT1.
// -3 --> No UTC parameters were provided and the stored reference time is UT1.
//
// Notes :
// -------
// 1) For the return values 0 and -3 only the UTC (0) or UT1 (-3) time recording is available,
//    as outlined above. This depends on the input argument "utc" that was used when the time was set.
// 2) A return value of -2 or -3 indicates that the time which was entered via SetUT()
//    or via one of the Julian Date facilities was actually UT1.

Definition at line 2776 of file NcTimestamp.cxx.

GetUTCparameters() [2/2]

Int_t NcTimestamp::GetUTCparameters	(	Int_t	mjd,
		Int_t &	leap,
		Double_t &	dut ) const

// Provide the values of the UTC parameters (i.e. Leap Seconds and dut=UT1-UTC)
// from the daily IERS data for the specified MJD.
// The return value indicates the entry (0=first) in the IERS data TTree at which
// the corresponding data was stored.
// In case the corresponding data could not be found, the return value is -1
// and "leap" and "dut" are set to 0.

Definition at line 2806 of file NcTimestamp.cxx.

IsUT1()

Bool_t NcTimestamp::IsUT1

(

)

const

// Indicate whether the reference time is UT1 (kTRUE) or UTC (kFALSE).

Definition at line 5940 of file NcTimestamp.cxx.

LoadUTCparameterFiles()

TTree * NcTimestamp::LoadUTCparameterFiles	(	TString	leapfile = "$(NCFS)/IERS/leap.txt",
		TString	dutfile = "$(NCFS)/IERS/dut.txt" )

// Load the IERS data for automatic setting of Leap Seconds and dUT=UT1-UTC.
//
// For the current timestamp the corresponding Leap seconds and dUT are set.
// If different settings are required, please invoke SetUTCparameters() after
// the invokation of this memberfunction.
//
// Input arguments :
// -----------------
// leapfile : The name of a copy of the (most recent) IERS ascii file
//            https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//            This file contains the archival list of accumulated Leap Seconds.
// dutfile  : The name of a copy of the (most recent) IERS the ascii file
//            https://hpiers.obspm.fr/iers/series/opa/eopc04
//            This file contains the archival list of the daily dUT=UT-UTC monitoring.
//
// Environment variables may be used as $(...) in the filennames for convenience.
// For example "$(HOME)/my-iers/leap.txt".
//
// The default file names are :
// ----------------------------
// leapfile="$(NCFS)/IERS/leap.txt"
// dutfile="$(NCFS)/IERS/dut.txt"
//
// which represents a central location to provide (automatically) updated data files.
// The file "iers-update.sh" in the directory "$NCFS/IERS" contains a template script
// to obtain automatic (daily) updates of these IERS data files.
//
// The corresponding daily values of the accumulated Leap Seconds and dUT=UT1-UTC
// are stored in an internal ROOT TTree.
// The return argument provides a pointer to the corresponding TTree to enable
// the user to investigate or store the corresponding data.
//
// The data stored in each TTree entry are the following :
// Int_t mjd    : The corresponding MJD of the entry.
// Int_t lsec   : The accumulated leap seconds of the corresponding mjd.
// Double_t dut : The dUT=UT1-UTC value (in seconds) of the corresponding mjd.
//
// Accurate daily monitoring dUT=UT1-UTC data, with about 10 microsecond precision,
// is available since MJD=37665 (01-jan-1962 00:00:00).
// Leap Seconds were introduced into UTC on MJD=41317 (01-jan-1972 00:00:00).
// For the period MJD=37665 until MJD=41317 the accumulated Leap Second count is set to 0.
//
// Note : In case of an error or inconsistency, no ROOT TTree will be created
//        and the returned pointer will be zero.

Definition at line 2988 of file NcTimestamp.cxx.

operator=()

NcTimestamp & NcTimestamp::operator=

(

const NcTimestamp &

t

)

// Set all attributes equal to those of NcTimestamp t

Definition at line 462 of file NcTimestamp.cxx.

PrintTime()

void NcTimestamp::PrintTime	(	Double_t	h,
		Int_t	ndig = 1 ) const

// Print a fractional hour count in hh:mm:ss.ssss format.
// The range of the printed hour value is : -24 < hh < 24.
// The argument "ndig" specifies the number of digits for the fractional
// seconds (e.g. ndig=6 corresponds to microsecond precision).
// No rounding will be performed, so a second count of 3.473 with ndig=1
// will appear as 03.4 on the output.
// Due to computer accuracy, precision on the picosecond level may get lost.
//
// The default is ndig=1.
//
// Note : The time info is printed without additional spaces or "endline".
//        This allows the print to be included in various composite output formats.

Definition at line 1127 of file NcTimestamp.cxx.

SetEpoch()

void NcTimestamp::SetEpoch	(	Double_t	e,
		TString	mode,
		TString	utc = "U",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the timestamp parameters according to the specified epoch.
//
// Optionally the user can also provide the corresponding UTC parameters
// (i.e. cumulated number of Leap Seconds and dut=UT-UTC) to enable to report next
// to UT also UTC and TAI derived time information.
// These UTC parameters will not affect the epoch setting.
//
// The input arguments represent the following :
// e    : The epoch specification
// mode : "B" ==> Besselian epoch
//        "J" ==> Julian epoch
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The resulting date/time represents UTC, and serves as the reference time.
//                Since no Leap Second info is available, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//                The resulting date/time represents UTC, and serves as the reference time.
//                The provided UTC parameters will serve to determine the TAI related time recording.
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The resulting date/time represents UTC, and serves as the reference time.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, this mode is equivalent to utc="N".
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
//        "U" ==> The resulting date/time represents UT1, and serves as the reference time.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
//                This mode is equivalent to utc="A" apart from the fact that the reference time represents UT1.
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT-UTC in seconds.
//
// The value of UT-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT-UTC will be set to zero.
// 2) In case utc="A" and no data files have been loaded, or no information is available,
//    the utc="N" mode will be invoked.
//
// The default values are utc="U", leap=0 and dut=0.

Definition at line 5593 of file NcTimestamp.cxx.

SetGPS() [1/2]

Int_t NcTimestamp::SetGPS	(	Int_t	w,
		Int_t	dow,
		Int_t	sod,
		Int_t	ns,
		Int_t	ps,
		TString	utc,
		Int_t	leap,
		Double_t	dut = 0,
		Int_t	icycle = 0 )

// Set the date and time from Global Positioning System (GPS) broadcast data.
// Based on the specified accumulated number of Leap Seconds ("leap") and the UT1-UTC value ("dut")
// also the UT will be set.
// The return value indicates whether the date/time and UTC parameters are actually
// set Manually (1), Automatically (-1) or Failed (0).
//
// The input arguments represent the following :
// ---------------------------------------------
// w      : The GPS week count since the GPS epoch start at 06-jan-1980 00:00:00 UTC which
//          corresponds to 06-jan-1980 00:00:19 TAI representing a TAI day count of 8040.
//          1 week corresponds to 7 days.
// dow    : The day count within the GPS week (Day Of Week).
// sod    : The number of seconds elapsed within the GPS day (Seconds Of Day).
// ns     : The remaining fractional number of seconds (in ns) elapsed within the GPS day.
// ps     : The remaining fractional number of nanoseconds (in ps) elapsed within the GPS day.
// utc    : Flag to denote which UTC parameter values "leap" and "dut" (see below) should be used.
//          "M" ==> Manually provided UTC parameters as specified by "leap" and "dut".
//          "A" ==> Automatically provided UTC parameters from the loaded IERS data files.
//                  In this case the specified values of "leap" and "dut" are irrelevant.
//                  For further details see the memberfunction SetUTCparameters().
// leap   : The accumulated number of Leap Seconds corresponding to this date/time.
// dut    : The monitored time difference UT-UTC in seconds.
// icycle : The GPS cycle count (to support previous GPS broadcasts).
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// In older GPS clock implementations the week count was reset after 1024 weeks,
// which was called a "cycle", and the cycle count was increased by 1.
// So, week=2030 and icycle=0 is equivalent with week=1006 and icycle=1.
//
// The default values are dut=0 and icycle=0.
// However, if <1 sec precision is required, the actual dut value should be provided.
//
// Notes :
// -------
// 1) In case of invalid input arguments the GPS (i.e. TAI) related time recording is disabled
//    and the values of the Leap Seconds and dut=UT-UTC will be set to zero.
//    Also JD=0 will be set to indicate that something went wrong.
//    The same holds in case utc="A" and no data files have been loaded, or no
//    IERS information for the provided date/time is available.
// 2) For the available IERS information please refer to the docs of LoadUTCparameterFiles().
// 3) In case a date/time setting outside the range of the IERS information is required,
//    the manual setting of "leap" and "dut" has to be invoked.

Definition at line 2530 of file NcTimestamp.cxx.

SetGPS() [2/2]

Int_t NcTimestamp::SetGPS	(	Int_t	w,
		Int_t	sow,
		Int_t	ns,
		Int_t	ps,
		TString	utc,
		Int_t	leap,
		Double_t	dut = 0,
		Int_t	icycle = 0 )

// Set the date and time from Global Positioning System (GPS) broadcast data.
// Based on the specified accumulated number of Leap Seconds ("leap") and the UT1-UTC value ("dut")
// also the UT will be set.
// The return value indicates whether the date/time and UTC parameters are actually
// set Manually (1), Automatically (-1) or Failed (0).
//
// The input arguments represent the following :
// ---------------------------------------------
// w      : The GPS week count since the GPS epoch start at 06-jan-1980 00:00:00 UTC which
//          corresponds to 06-jan-1980 00:00:19 TAI representing a TAI day count of 8040.
//          1 week corresponds to 7 days.
// sow    : The number of seconds elapsed within the GPS week (Seconds Of Week).
// ns     : The remaining fractional number of seconds (in ns) elapsed within the GPS week.
// ps     : The remaining fractional number of nanoseconds (in ps) elapsed within the GPS week.
// utc    : Flag to denote which UTC parameter values "leap" and "dut" (see below) should be used.
//          "M" ==> Manually provided UTC parameters as specified by "leap" and "dut".
//          "A" ==> Automatically provided UTC parameters from the loaded IERS data files.
//                  In this case the specified values of "leap" and "dut" are irrelevant.
//                  For further details see the memberfunction SetUTCparameters().
// leap   : The accumulated number of Leap Seconds corresponding to this date/time.
// dut    : The monitored time difference UT-UTC in seconds.
// icycle : The GPS cycle count (to support previous GPS broadcasts).
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// In older GPS clock implementations the week count was reset after 1024 weeks,
// which was called a "cycle", and the cycle count was increased by 1.
// So, week=2030 and icycle=0 is equivalent with week=1006 and icycle=1.
//
// The default values are dut=0 and icycle=0.
// However, if <1 sec precision is required, the actual dut value should be provided.
//
// Notes :
// -------
// 1) In case of invalid input arguments the GPS (i.e. TAI) related time recording is disabled
//    and the values of the Leap Seconds and dut=UT-UTC will be set to zero.
//    Also JD=0 will be set to indicate that something went wrong.
//    The same holds in case utc="A" and no data files have been loaded, or no
//    IERS information for the provided date/time is available.
// 2) For the available IERS information please refer to the docs of LoadUTCparameterFiles().
// 3) In case a date/time setting outside the range of the IERS information is required,
//    the manual setting of "leap" and "dut" has to be invoked.

Definition at line 2451 of file NcTimestamp.cxx.

SetJD() [1/2]

void NcTimestamp::SetJD	(	Double_t	jd,
		TString	utc = "U",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the Julian Date (JD) and time and update the TTimeStamp
// parameters accordingly (if possible).
// The provided UTC parameters (see below) will not affect the JD setting.
//
// Note :
// ------
// The TTimeStamp EPOCH starts at 01-jan-1970 00:00:00 UT
// which corresponds to JD=2440587.5 or the start of MJD=40587.
// Using the corresponding MJD of this EPOCH allows construction of
// the yy-mm-dd hh:mm:ss:ns TTimeStamp from a given input MJD and time.
// Obviously this TTimeStamp implementation would prevent usage of values
// smaller than JD=2440587.5.
// Furthermore, due to a limitation on the "seconds since the EPOCH start" count
// in TTimeStamp, the latest accessible date/time is until 19-jan-2038 02:14:07 UT.
// However, this NcTimestamp facility provides support for the full range
// of (M)JD values, but the setting of the corresponding TTimeStamp parameters
// is restricted to the values allowed by the TTimeStamp implementation.
// For these earlier/later JD values, the standard TTimeStamp parameters will
// be set corresponding to the start of the TTimeStamp EPOCH.
// This implies that for these earlier/later (M)JD values the TTimeStamp parameters
// do not match the Julian parameters of NcTimestamp.
//
// Due to computer accuracy the ns precision may be lost.
// It is advised to use the (jd,sec,ns,ps) setting instead.
//
// The input arguments represent the following :
// jd   : The Julian date as fractional day count.
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The date/time that was specified represents UTC, and serves as the reference time.
//                Since no Leap Second info is available, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//                The date/time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will now become the reference time.
//                The provided UTC parameters will also serve to determine the TAI related time recording.
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The date/time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will now become the reference time.
//                The provided UTC parameters will also serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, this mode is equivalent to utc="N".
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
//        "U" ==> The date/time that was specified represents UT1, and serves as the reference time.
//                The UTC parameters will be retrieved from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT1-UTC in seconds.
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
// 2) In case utc="A" or utc="U" and no data files have been loaded, or no information is available,
//    the TAI related time recording is disabled and the values of the Leap Seconds and dut=UT1-UTC
//    will be set to zero.
//
// The default values are utc="U", leap=0 and dut=0.

Definition at line 1874 of file NcTimestamp.cxx.

SetJD() [2/2]

void NcTimestamp::SetJD	(	Int_t	jd,
		Int_t	sec,
		Int_t	ns,
		Int_t	ps = 0,
		TString	utc = "U",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the Julian Date (JD) and time and update the TTimeStamp
// parameters accordingly (if possible).
// The provided UTC parameters (see below) will not affect the JD setting.
//
// Note :
// ------
// The TTimeStamp EPOCH starts at 01-jan-1970 00:00:00 UT
// which corresponds to JD=2440587.5 or the start of MJD=40587.
// Using the corresponding MJD of this EPOCH allows construction of
// the yy-mm-dd hh:mm:ss:ns TTimeStamp from a given input MJD and time.
// Obviously this TTimeStamp implementation would prevent usage of values
// smaller than JD=2440587.5.
// Furthermore, due to a limitation on the "seconds since the EPOCH start" count
// in TTimeStamp, the latest accessible date/time is until 19-jan-2038 02:14:07 UT.
// However, this NcTimestamp facility provides support for the full range
// of (M)JD values, but the setting of the corresponding TTimeStamp parameters
// is restricted to the values allowed by the TTimeStamp implementation.
// For these earlier/later JD values, the standard TTimeStamp parameters will
// be set corresponding to the start of the TTimeStamp EPOCH.
// This implies that for these earlier/later (M)JD values the TTimeStamp parameters
// do not match the Julian parameters of NcTimestamp.
//
// The input arguments represent the following :
// jd   : The Julian date.
// sec  : The number of seconds elapsed within the JD.
// ns   : The remaining fractional number of seconds (in ns) elapsed within the JD.
// ps   : The remaining fractional number of nanoseconds (in ps) elapsed within the JD.
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The date/time that was specified represents UTC, and serves as the reference time.
//                Since no Leap Second info is available, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//                The date/time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will now become the reference time.
//                The provided UTC parameters will also serve to determine the TAI related time recording.
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The date/time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will now become the reference time.
//                The provided UTC parameters will also serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, this mode is equivalent to utc="N".
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
//        "U" ==> The date/time that was specified represents UT1, and serves as the reference time.
//                The UTC parameters will be retrieved from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT1-UTC in seconds.
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
// 2) In case utc="A" or utc="U" and no data files have been loaded, or no information is available,
//    the TAI related time recording is disabled and the values of the Leap Seconds and dut=UT1-UTC
//    will be set to zero.
//
// The default values are ps=0, utc="U", leap=0 and dut=0.

Definition at line 1782 of file NcTimestamp.cxx.

SetLT() [1/5]

void NcTimestamp::SetLT	(	Double_t	dt,
		Int_t	y,
		Int_t	d,
		Int_t	s,
		Int_t	ns = 0,
		Int_t	ps = 0,
		TString	utc = "A",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the NcTimestamp parameters corresponding to the specified elapsed
// timespan since the beginning of the new LT year.
// This facility is exact upto picosecond precision and as such is
// for scientific observations preferable above the corresponding
// Set function(s) of TTimestamp.
// The latter has a random spread in the sub-second part, which
// might be of use in generating distinguishable timestamps while
// still keeping second precision.
// Optionally the user can also provide the corresponding UTC parameters
// (i.e. cumulated number of Leap Seconds and dut=UT-UTC) to enable to report next
// to UT also UTC and TAI derived time information.
// These UTC parameters will not affect the LT setting.
//
// The LT year and elapsed time span is entered via the following input arguments :
//
// dt   : the local time offset in fractional hours w.r.t. UT.
// y    : year in LT (e.g. 1952, 2003 etc...)
// d    : elapsed number of days
// s    : (remaining) elapsed number of seconds
// ns   : (remaining) elapsed number of nanoseconds
// ps   : (remaining) elapsed number of picoseconds
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                The TAI related time recording is disabled and the values of
//                the Leap Seconds and dut=UT-UTC will be set to zero.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                For further details see the memberfunction SetUTCparameters().
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT-UTC in seconds.
//
// The value of UT-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT-UTC will be set to zero.
// 2) In case utc="A" and no data files have been loaded, or no information is available,
//    the utc="N" mode will be invoked.
//
// The specified d, s, ns and ps values will be used in an additive
// way to determine the elapsed timespan.
// So, specification of d=1, s=100, ns=0, ps=0 will result in the
// same elapsed time span as d=0, s=24*3600+100, ns=0, ps=0.
// However, by making use of the latter the user should take care
// of possible integer overflow problems in the input arguments,
// which obviously will provide incorrect results.
//
// Note : ns=0, ps=0, utc="A", leap=0 and dut=0 are the default values.
//
// This facility first sets the UT as specified by the input arguments
// and then corrects the UT by subtracting the local time offset w.r.t. UT.
// As such this facility is valid for all AD dates in the Gregorian calendar.

Definition at line 4901 of file NcTimestamp.cxx.

SetLT() [2/5]

void NcTimestamp::SetLT	(	Double_t	dt,
		Int_t	y,
		Int_t	m,
		Int_t	d,
		Int_t	hh,
		Int_t	mm,
		Double_t	s,
		TString	utc = "A",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the NcTimestamp parameters corresponding to the LT date and time
// in the Gregorian calendar as specified by the input arguments.
// Due to rounding errors the highest (i.e. picosecond) accuracy might not be reached.
// For a guaranteed picosecond precision please refer to the other SetLT() memberfunctions.
// Optionally the user can also provide the corresponding UTC parameters
// (i.e. cumulated number of Leap Seconds and dut=UT-UTC) to enable to report next
// to UT also UTC and TAI derived time information.
// These UTC parameters will not affect the LT setting.
//
// The input arguments represent the following :
// dt   : the local time offset in fractional hours w.r.t. UT
// y    : year in LT (e.g. 1952, 2003 etc...)
// m    : month in LT (1=jan  2=feb etc...)
// d    : day in LT (1-31)
// hh   : elapsed hours in LT (0-23)
// mm   : elapsed minutes in LT (0-59)
// s    : elapsed (fractional) seconds in LT (0-59.999...)
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                The TAI related time recording is disabled and the values of
//                the Leap Seconds and dut=UT-UTC will be set to zero.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                For further details see the memberfunction SetUTCparameters().
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT-UTC in seconds.
//
// The value of UT-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT-UTC will be set to zero.
// 2) In case utc="A" and no data files have been loaded, or no information is available,
//    the utc="N" mode will be invoked.
//
// The default values are utc="A", leap=0 and dut=0.
//
// This facility first sets the UT as specified by the input arguments
// and then corrects the UT by subtracting the local time offset w.r.t. UT.
// As such this facility is valid for all AD dates in the Gregorian calendar.

Definition at line 4714 of file NcTimestamp.cxx.

SetLT() [3/5]

void NcTimestamp::SetLT	(	Double_t	dt,
		Int_t	y,
		Int_t	m,
		Int_t	d,
		Int_t	hh,
		Int_t	mm,
		Int_t	ss,
		Int_t	ns = 0,
		Int_t	ps = 0,
		TString	utc = "A",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the NcTimestamp parameters corresponding to the LT date and time
// in the Gregorian calendar as specified by the input arguments.
// This facility is exact upto picosecond precision and as such is
// for scientific observations preferable above the corresponding
// Set function(s) of TTimestamp.
// The latter has a random spread in the sub-second part, which
// might be of use in generating distinguishable timestamps while
// still keeping second precision.
// Optionally the user can also provide the corresponding UTC parameters
// (i.e. cumulated number of Leap Seconds and dut=UT-UTC) to enable to report next
// to UT also UTC and TAI derived time information.
// These UTC parameters will not affect the LT setting.
//
// The input arguments represent the following :
//
// dt   : the local time offset in fractional hours w.r.t. UT.
// y    : year in LT (e.g. 1952, 2003 etc...)
// m    : month in LT (1=jan  2=feb etc...)
// d    : day in LT (1-31)
// hh   : elapsed hours in LT (0-23)
// mm   : elapsed minutes in LT (0-59)
// ss   : elapsed seconds in LT (0-59)
// ns   : remaining fractional elapsed second of LT in nanosecond
// ps   : remaining fractional elapsed nanosecond of LT in picosecond
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                The TAI related time recording is disabled and the values of
//                the Leap Seconds and dut=UT-UTC will be set to zero.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                For further details see the memberfunction SetUTCparameters().
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT-UTC in seconds.
//
// The value of UT-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT-UTC will be set to zero.
// 2) In case utc="A" and no data files have been loaded, or no information is available,
//    the utc="N" mode will be invoked.
//
// The default values are ns=0, ps=0, utc="A", leap=0 and dut=0.
//
// This facility first sets the UT as specified by the input arguments
// and then corrects the UT by subtracting the local time offset w.r.t. UT.
// As such this facility is valid for all AD dates in the Gregorian
// calendar with picosecond precision.

Definition at line 4643 of file NcTimestamp.cxx.

SetLT() [4/5]

void NcTimestamp::SetLT	(	Double_t	dt,
		Int_t	y,
		Int_t	m,
		Int_t	d,
		TString	time,
		TString	utc = "A",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the NcTimestamp parameters corresponding to the LT date and time
// in the Gregorian calendar as specified by the input arguments.
// Due to rounding errors the highest (i.e. picosecond) accuracy might not be reached.
// For a guaranteed picosecond precision please refer to the other SetLT() memberfunctions.
// Optionally the user can also provide the corresponding UTC parameters
// (i.e. cumulated number of Leap Seconds and dut=UT-UTC) to enable to report next
// to UT also UTC and TAI derived time information.
// These UTC parameters will not affect the LT setting.
//
// The input arguments represent the following :
// dt   : the local time offset in fractional hours w.r.t. UT
// y    : year in LT (e.g. 1952, 2003 etc...)
// m    : month in LT (1=jan  2=feb etc...)
// d    : day in LT (1-31)
// time : The LT time in the format hh:mm:ss.sss
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                The TAI related time recording is disabled and the values of
//                the Leap Seconds and dut=UT-UTC will be set to zero.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                For further details see the memberfunction SetUTCparameters().
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT-UTC in seconds.
//
// The value of UT-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT-UTC will be set to zero.
// 2) In case utc="A" and no data files have been loaded, or no information is available,
//    the utc="N" mode will be invoked.
//
// The default values are utc="A", leap=0 and dut=0.
//
// This facility first sets the UT as specified by the input arguments
// and then corrects the UT by subtracting the local time offset w.r.t. UT.
// As such this facility is valid for all AD dates in the Gregorian calendar.

Definition at line 4777 of file NcTimestamp.cxx.

SetLT() [5/5]

void NcTimestamp::SetLT	(	Double_t	dt,
		TString	date,
		TString	time,
		Int_t	mode,
		TString	utc = "A",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the NcTimestamp parameters corresponding to the LT date and time
// in the Gregorian calendar as specified by the input arguments.
// Due to rounding errors the highest (i.e. picosecond) accuracy might not be reached.
// For a guaranteed picosecond precision please refer to the other SetLT() memberfunctions.
// Optionally the user can also provide the corresponding UTC parameters
// (i.e. cumulated number of Leap Seconds and dut=UT-UTC) to enable to report next
// to UT also UTC and TAI derived time information.
// These UTC parameters will not affect the LT setting.
//
// The input arguments represent the following :
// dt   : the local time offset in fractional hours w.r.t. UT
// date : The LT date in the format dd-mm-yyyy or dd/mm/yyyy or ddmmyyyy (mode=0)
// date : The LT date in the format yyyy-mm-dd or yyyy/mm/dd or yyyymmdd (mode=1)
// date : The LT date in the format mm-dd-yyyy or mm/dd/yyyy or mmddyyyy (mode=2)
// date : The LT date in the format yyyy-dd-mm or yyyy/dd/mm or yyyyddmm (mode=3)
// time : The LT time in the format hh:mm:ss.sss
// mode : Date format specifier (see above)
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                The TAI related time recording is disabled and the values of
//                the Leap Seconds and dut=UT-UTC will be set to zero.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                For further details see the memberfunction SetUTCparameters().
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT-UTC in seconds.
//
// The value of UT-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT-UTC will be set to zero.
// 2) In case utc="A" and no data files have been loaded, or no information is available,
//    the utc="N" mode will be invoked.
//
// The default values are utc="A", leap=0 and dut=0.
//
// This facility first sets the UT as specified by the input arguments
// and then corrects the UT by subtracting the local time offset w.r.t. UT.
// As such this facility is valid for all AD dates in the Gregorian calendar.

Definition at line 4838 of file NcTimestamp.cxx.

SetMJD() [1/2]

void NcTimestamp::SetMJD	(	Double_t	mjd,
		TString	utc = "U",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the Modified Julian Date (MJD) and time and update the TTimeStamp
// parameters accordingly (if possible).
// The provided UTC parameters (see below) will not affect the MJD setting.
//
// Note :
// ------
// The TTimeStamp EPOCH starts at 01-jan-1970 00:00:00 UT
// which corresponds to the start of MJD=40587.
// Using the corresponding MJD of this EPOCH allows construction of
// the yy-mm-dd hh:mm:ss:ns TTimeStamp from a given input MJD and time.
// Obviously this TTimeStamp implementation would prevent usage of MJD values
// smaller than 40587.
// Furthermore, due to a limitation on the "seconds since the EPOCH start" count
// in TTimeStamp, the latest accessible date/time is until 19-jan-2038 02:14:07 UT.
// However, this NcTimestamp facility provides support for the full range
// of (M)JD values, but the setting of the corresponding TTimeStamp parameters
// is restricted to the values allowed by the TTimeStamp implementation.
// For these earlier/later MJD values, the standard TTimeStamp parameters will
// be set corresponding to the start of the TTimeStamp EPOCH.
// This implies that for these earlier/later MJD values the TTimeStamp parameters
// do not match the Julian parameters of NcTimestamp.
//
// Due to computer accuracy the ns precision may be lost.
// It is advised to use the (mjd,sec,ns,ps) setting instead.
//
// The input arguments represent the following :
// mjd  : The modified Julian date as fractional day count.
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The date/time that was specified represents UTC, and serves as the reference time.
//                Since no Leap Second info is available, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//                The date/time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will now become the reference time.
//                The provided UTC parameters will also serve to determine the TAI related time recording.
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The date/time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will now become the reference time.
//                The provided UTC parameters will also serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, this mode is equivalent to utc="N".
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
//        "U" ==> The date/time that was specified represents UT1, and serves as the reference time.
//                The UTC parameters will be retrieved from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT1-UTC in seconds.
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
// 2) In case utc="A" or utc="U" and no data files have been loaded, or no information is available,
//    the TAI related time recording is disabled and the values of the Leap Seconds and dut=UT1-UTC
//    will be set to zero.
//
// The default values are utc="U", leap=0 and dut=0.

Definition at line 1694 of file NcTimestamp.cxx.

SetMJD() [2/2]

void NcTimestamp::SetMJD	(	Int_t	mjd,
		Int_t	sec,
		Int_t	ns,
		Int_t	ps = 0,
		TString	utc = "U",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the Modified Julian Date (MJD) and time and update the TTimeStamp
// parameters accordingly (if possible).
// The provided UTC parameters (see below) will not affect the MJD setting.
//
// Note :
// ------
// The TTimeStamp EPOCH starts at 01-jan-1970 00:00:00 UT
// which corresponds to the start of MJD=40587.
// Using the corresponding MJD of this EPOCH allows construction of
// the yy-mm-dd hh:mm:ss:ns TTimeStamp from a given input MJD and time.
// Obviously this TTimeStamp implementation would prevent usage of MJD values
// smaller than 40587.
// Furthermore, due to a limitation on the "seconds since the EPOCH start" count
// in TTimeStamp, the latest accessible date/time is until 19-jan-2038 02:14:07 UT.
// However, this NcTimestamp facility provides support for the full range
// of (M)JD values, but the setting of the corresponding TTimeStamp parameters
// is restricted to the values allowed by the TTimeStamp implementation.
// For these earlier/later MJD values, the standard TTimeStamp parameters will
// be set corresponding to the start of the TTimeStamp EPOCH.
// This implies that for these earlier/later MJD values the TTimeStamp parameters
// do not match the Julian parameters of NcTimestamp.
//
// The input arguments represent the following :
// mjd  : The modified Julian date.
// sec  : The number of seconds elapsed within the MJD.
// ns   : The remaining fractional number of seconds (in ns) elapsed within the MJD.
// ps   : The remaining fractional number of nanoseconds (in ps) elapsed within the MJD.
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The date/time that was specified represents UTC, and serves as the reference time.
//                Since no Leap Second info is available, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//                The date/time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will now become the reference time.
//                The provided UTC parameters will also serve to determine the TAI related time recording.
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The date/time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will now become the reference time.
//                The provided UTC parameters will also serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, this mode is equivalent to utc="N".
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
//        "U" ==> The date/time that was specified represents UT1, and serves as the reference time.
//                The UTC parameters will be retrieved from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT1-UTC in seconds.
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
// 2) In case utc="A" or utc="U" and no data files have been loaded, or no information is available,
//    the TAI related time recording is disabled and the values of the Leap Seconds and dut=UT1-UTC
//    will be set to zero.
//
// The defaults are ps=0, utc="U", leap=0 and dut=0.

Definition at line 1565 of file NcTimestamp.cxx.

SetNs()

void NcTimestamp::SetNs

(

Int_t

ns

)

// Set the remaining fractional number of seconds in nanosecond precision.
// Notes :
// -------
// 1) The allowed range for the argument "ns" is [0,999999999].
//    Outside that range no action is performed.
// 2) The ns fraction can also be entered directly via SetMJD() etc...
// 3) For additional accuracy see SetPs().

Definition at line 2716 of file NcTimestamp.cxx.

SetPs()

void NcTimestamp::SetPs

(

Int_t

ps

)

// Set the remaining fractional number of nanoseconds in picoseconds.
// Notes :
// -------
// 1) The allowed range for the argument "ps" is [0,999].
//    Outside that range no action is performed.
// 2) The ps fraction can also be entered directly via SetMJD() etc...

Definition at line 2747 of file NcTimestamp.cxx.

SetSystemTime()

void NcTimestamp::SetSystemTime

(

)

// Set UTC to the current time of the system clock.
//
// In case no database value of dUT=UT1-UTC is available,
// the system clock time is used as the main (UTC) reference.

Definition at line 5910 of file NcTimestamp.cxx.

SetTAI() [1/3]

Int_t NcTimestamp::SetTAI	(	Double_t	tai,
		TString	utc,
		Int_t	leap,
		Double_t	dut = 0,
		Bool_t	tmjd = kFALSE )

// Set the International Atomic Time (TAI) date and time and update the TTimeStamp
// parameters accordingly (if possible).
// Based on the specified accumulated number of Leap Seconds ("leap") and the UT1-UTC value ("dut")
// also the UT will be set.
// The return value indicates whether the date/time and UTC parameters are actually
// set Manually (1), Automatically (-1) or Failed (0).
//
// Due to computer accuracy the ns precision may be lost.
// It is advised to use the (d,sec,ns,ps) setting instead.
//
// The input arguments represent the following :
// tai  : The TAI fractional day count according to the specified "tmjd" parameter (see below).
// utc  : Flag to denote which UTC parameter values "leap" and "dut" (see below) should be used.
//        "M" ==> Manually provided UTC parameters as specified by "leap" and "dut".
//        "A" ==> Automatically provided UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                For further details see the memberfunction SetUTCparameters().
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT-UTC in seconds.
// tmjd : kTRUE  ==> The MJD equivalent TAI day count.
//        kFALSE ==> The TAI day count since the TAI start epoch 01-jan-1958 00:00:00 UT (MJD=36204).
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// The default values are dut=0 and tmjd=kFALSE.
// However, if <1 sec precision is required, the actual dut value should be provided.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT-UTC will be set to zero.
//    Also JD=0 will be set to indicate that something went wrong.
//    The same holds in case utc="A" and no data files have been loaded, or no
//    IERS information for the provided date/time is available.
// 2) For the available IERS information please refer to the docs of LoadUTCparameterFiles().
// 3) In case a date/time setting outside the range of the IERS information is required,
//    the manual setting of "leap" and "dut" has to be invoked.
// 4) The TTimeStamp EPOCH starts at 01-jan-1970 00:00:00 UT
//    which corresponds to JD=2440587.5 (i.e. the start of MJD=40587) or the
//    start of TAI=4383 w.r.t. the TAI start epoch 01-jan-1958 00:00:00 UT.
//    Using the corresponding TAI of this EPOCH allows construction of
//    the yy-mm-dd hh:mm:ss:ns TTimeStamp from a given input TAI day and time.
//    Obviously this TTimeStamp implementation would prevent usage of values
//    smaller than TAI=4383 for tmjd=kFALSE or TAI=40587 for tmjd=kTRUE.
//    Furthermore, due to a limitation on the "seconds since the EPOCH start" count
//    in TTimeStamp, the latest accessible date/time is until 19-jan-2038 02:14:07 UT.
//    However, this NcTimestamp facility provides support for the full range
//    of TAI values, but the setting of the corresponding TTimeStamp parameters
//    is restricted to the values allowed by the TTimeStamp implementation.
//    For these earlier/later TAI values, the standard TTimeStamp parameters will
//    be set corresponding to the start of the TTimeStamp EPOCH.
//    This implies that for these earlier/later TAI values the TTimeStamp parameters
//    do not match the TAI c.q. Julian parameters of NcTimestamp.

Definition at line 2372 of file NcTimestamp.cxx.

SetTAI() [2/3]

Int_t NcTimestamp::SetTAI	(	Int_t	d,
		Int_t	sec,
		Int_t	ns,
		Int_t	ps,
		TString	utc,
		Int_t	leap,
		Double_t	dut = 0,
		Bool_t	tmjd = kFALSE )

// Set the International Atomic Time (TAI) date and time and update the TTimeStamp
// parameters accordingly (if possible).
// Based on the specified accumulated number of Leap Seconds ("leap") and the UT1-UTC value ("dut")
// also the UT will be set.
// The return value indicates whether the date/time and UTC parameters are actually
// set Manually (1), Automatically (-1) or Failed (0).
//
// The input arguments represent the following :
// d    : The TAI day count according to the specified "tmjd" parameter (see below).
// sec  : The number of seconds elapsed within the TAI day.
// ns   : The remaining fractional number of seconds (in ns) elapsed within the TAI day.
// ps   : The remaining fractional number of nanoseconds (in ps) elapsed within the TAI day.
// utc  : Flag to denote which UTC parameter values "leap" and "dut" (see below) should be used.
//        "M" ==> Manually provided UTC parameters as specified by "leap" and "dut".
//        "A" ==> Automatically provided UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                For further details see the memberfunction SetUTCparameters().
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT1-UTC in seconds.
// tmjd : kTRUE  ==> The MJD equivalent TAI day count.
//        kFALSE ==> The TAI day count since the TAI start epoch 01-jan-1958 00:00:00 UT (MJD=36204).
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// The default values are dut=0 and tmjd=kFALSE.
// However, if <1 sec precision is required, the actual dut value should be provided.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT-UTC will be set to zero.
//    Also JD=0 will be set to indicate that something went wrong.
//    The same holds in case utc="A" and no data files have been loaded, or no
//    IERS information for the provided date/time is available.
// 2) For the available IERS information please refer to the docs of LoadUTCparameterFiles().
// 3) In case a date/time setting outside the range of the IERS information is required,
//    the manual setting of "leap" and "dut" has to be invoked.
// 4) The TTimeStamp EPOCH starts at 01-jan-1970 00:00:00 UT
//    which corresponds to JD=2440587.5 (i.e. the start of MJD=40587) or the
//    start of TAI=4383 w.r.t. the TAI start epoch 01-jan-1958 00:00:00 UT.
//    Using the corresponding TAI of this EPOCH allows construction of
//    the yy-mm-dd hh:mm:ss:ns TTimeStamp from a given input TAI day and time.
//    Obviously this TTimeStamp implementation would prevent usage of values
//    smaller than TAI=4383 for tmjd=kFALSE or TAI=40587 for tmjd=kTRUE.
//    Furthermore, due to a limitation on the "seconds since the EPOCH start" count
//    in TTimeStamp, the latest accessible date/time is until 19-jan-2038 02:14:07 UT.
//    However, this NcTimestamp facility provides support for the full range
//    of TAI values, but the setting of the corresponding TTimeStamp parameters
//    is restricted to the values allowed by the TTimeStamp implementation.
//    For these earlier/later TAI values, the standard TTimeStamp parameters will
//    be set corresponding to the start of the TTimeStamp EPOCH.
//    This implies that for these earlier/later TAI values the TTimeStamp parameters
//    do not match the TAI c.q. Julian parameters of NcTimestamp.

Definition at line 2265 of file NcTimestamp.cxx.

SetTAI() [3/3]

Int_t NcTimestamp::SetTAI	(	TString	type,
		TString	date,
		TString	time,
		Int_t	mode,
		TString	utc,
		Int_t	leap,
		Double_t	dut = 0 )

// Set the NcTimestamp parameters corresponding to the specified TAI based date and time
// in the Gregorian calendar as specified by the input arguments.
// Based on the specified accumulated number of Leap Seconds ("leap") and the UT1-UTC value ("dut")
// also the UT will be set.
// The return value indicates whether the date/time and UTC parameters are actually
// set Manually (1), Automatically (-1) or Failed (0).
// Due to rounding errors the highest (i.e. picosecond) accuracy might not be reached.
// For a guaranteed picosecond precision please refer to the other SetTAI() or SetUT() memberfunctions.
//
// The input arguments represent the following :
// type : UTC ==> Date/time provided by the Coordinated Universal Time broadcast
//        GPS ==> Date/time provided by the Global Positioning System broadcast
//        TAI ==> Date/time provided by the International Atomic Time recording
//        TT  ==> Date/time provided by the Terrestrial Time recording
// date : The date in the format dd-mm-yyyy or dd/mm/yyyy or ddmmyyyy (mode=0)
// date : The date in the format yyyy-mm-dd or yyyy/mm/dd or yyyymmdd (mode=1)
// date : The date in the format mm-dd-yyyy or mm/dd/yyyy or mmddyyyy (mode=2)
// date : The date in the format yyyy-dd-mm or yyyy/dd/mm or yyyyddmm (mode=3)
// time : The time in the format hh:mm:ss.sss
// mode : Date format specifier (see above)
// utc  : Flag to denote which UTC parameter values "leap" and "dut" (see below) should be used.
//        "M" ==> Manually provided UTC parameters as specified by "leap" and "dut".
//        "A" ==> Automatically provided UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                For further details see the memberfunction SetUTCparameters().
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT1-UTC in seconds.
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// The default value is dut=0, but if <1 sec precision is required, the actual dut value should be provided.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT-UTC will be set to zero.
//    Also JD=0 will be set to indicate that something went wrong.
//    The same holds in case utc="A" and no data files have been loaded, or no
//    IERS information for the provided date/time is available.
// 2) For the available IERS information please refer to the docs of LoadUTCparameterFiles().
// 3) In case a date/time setting outside the range of the IERS information is required,
//    the manual setting of "leap" and "dut" has to be invoked.

Definition at line 2174 of file NcTimestamp.cxx.

SetTJD() [1/2]

void NcTimestamp::SetTJD	(	Double_t	tjd,
		TString	utc = "U",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the Truncated Julian Date (TJD) and time and update the TTimeStamp
// parameters accordingly (if possible).
// The provided UTC parameters (see below) will not affect the TJD setting.
//
// Note :
// ------
// The TTimeStamp EPOCH starts at 01-jan-1970 00:00:00 UT
// which corresponds to JD=2440587.5 or the start of TJD=587.
// Using the corresponding MJD of this EPOCH allows construction of
// the yy-mm-dd hh:mm:ss:ns TTimeStamp from a given input MJD and time.
// Obviously this TTimeStamp implementation would prevent usage of values
// smaller than TJD=587.
// Furthermore, due to a limitation on the "seconds since the EPOCH start" count
// in TTimeStamp, the latest accessible date/time is until 19-jan-2038 02:14:07 UT.
// However, this NcTimestamp facility provides support for the full range
// of (T)JD values, but the setting of the corresponding TTimeStamp parameters
// is restricted to the values allowed by the TTimeStamp implementation.
// For these earlier/later JD values, the standard TTimeStamp parameters will
// be set corresponding to the start of the TTimeStamp EPOCH.
// This implies that for these earlier/later (T)JD values the TTimeStamp parameters
// do not match the Julian parameters of NcTimestamp.
//
// Due to computer accuracy the ns precision may be lost.
// It is advised to use the (tjd,sec,ns,ps) setting instead.
//
// The input arguments represent the following :
// tjd  : The Truncated Julian date as fractional day count.
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The date/time that was specified represents UTC, and serves as the reference time.
//                Since no Leap Second info is available, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//                The date/time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will now become the reference time.
//                The provided UTC parameters will also serve to determine the TAI related time recording.
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The date/time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will now become the reference time.
//                The provided UTC parameters will also serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, this mode is equivalent to utc="N".
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
//        "U" ==> The date/time that was specified represents UT1, and serves as the reference time.
//                The UTC parameters will be retrieved from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT1-UTC in seconds.
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
// 2) In case utc="A" or utc="U" and no data files have been loaded, or no information is available,
//    the TAI related time recording is disabled and the values of the Leap Seconds and dut=UT1-UTC
//    will be set to zero.
//
// The default values are utc="U", leap=0, dut=0.

Definition at line 2049 of file NcTimestamp.cxx.

SetTJD() [2/2]

void NcTimestamp::SetTJD	(	Int_t	tjd,
		Int_t	sec,
		Int_t	ns,
		Int_t	ps = 0,
		TString	utc = "U",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the Truncated Julian Date (TJD) and time and update the TTimeStamp
// parameters accordingly (if possible).
// The provided UTC parameters (see below) will not affect the TJD setting.
//
// Note :
// ------
// The TTimeStamp EPOCH starts at 01-jan-1970 00:00:00 UT
// which corresponds to JD=2440587.5 or the start of TJD=587.
// Using the corresponding MJD of this EPOCH allows construction of
// the yy-mm-dd hh:mm:ss:ns TTimeStamp from a given input MJD and time.
// Obviously this TTimeStamp implementation would prevent usage of values
// smaller than TJD=587.
// Furthermore, due to a limitation on the "seconds since the EPOCH start" count
// in TTimeStamp, the latest accessible date/time is until 19-jan-2038 02:14:07 UT.
// However, this NcTimestamp facility provides support for the full range
// of (T)JD values, but the setting of the corresponding TTimeStamp parameters
// is restricted to the values allowed by the TTimeStamp implementation.
// For these earlier/later JD values, the standard TTimeStamp parameters will
// be set corresponding to the start of the TTimeStamp EPOCH.
// This implies that for these earlier/later (T)JD values the TTimeStamp parameters
// do not match the Julian parameters of NcTimestamp.
//
// The input arguments represent the following :
// tjd  : The Truncated Julian date.
// sec  : The number of seconds elapsed within the JD.
// ns   : The remaining fractional number of seconds (in ns) elapsed within the JD.
// ps   : The remaining fractional number of nanoseconds (in ps) elapsed within the JD.
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The date/time that was specified represents UTC, and serves as the reference time.
//                Since no Leap Second info is available, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//                The date/time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will now become the reference time.
//                The provided UTC parameters will also serve to determine the TAI related time recording.
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The date/time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will now become the reference time.
//                The provided UTC parameters will also serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, this mode is equivalent to utc="N".
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
//        "U" ==> The date/time that was specified represents UT1, and serves as the reference time.
//                The UTC parameters will be retrieved from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT1-UTC in seconds.
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
// 2) In case utc="A" or utc="U" and no data files have been loaded, or no information is available,
//    the TAI related time recording is disabled and the values of the Leap Seconds and dut=UT1-UTC
//    will be set to zero.
//
// The default values are ps=0, utc="U", leap=0 and dut=0.

Definition at line 1963 of file NcTimestamp.cxx.

SetUnixTime()

Int_t NcTimestamp::SetUnixTime	(	Double_t	sec,
		TString	utc = "A",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the Unix date and time and update the TTimeStamp parameters accordingly (if possible).
// Based on the specified accumulated number of Leap Seconds ("leap") and the UT1-UTC value ("dut")
// also the UT will be set.
// Unix Time is also called POSIX Time or UNIX Epoch Time.
//
// Unix Time is closely releated to UTC and represents the (fractional) elapsed second count
// since the start of the Unix Epoch, in which every Unix Time day contains exactly 86400 seconds.
// This implies that for Unix Time the UTC leap seconds should be ignored as explained below.
// The UNIX Time EPOCH starts at 01-jan-1970 00:00:00 UTC which corresponds to JD=2440587.5
// (i.e. the start of MJD=40587).
// Synchronization with UTC is obtained by continuing the second count when a UTC leap second
// occurs and then the Unix Time count jumps up or down 1 second at the beginning of the new
// day after the UTC leap second has expired.
// In case of a negative UTC leap second (which has not occurred so far) this would result
// in a jump forward of 1 second in Unix Time, introducing a "gap" of 1 second in the timing
// at the start of the new day.
// In case of a positive UTC leap second this results in a jump back of 1 second in Unix Time
// at the start of a new day.
// In this case there exist 2 ambiguous Unix Times over a 1 second time interval,
// namely at the beginning of the introduction of the UTC leap second and at the moment that
// the UTC leap second expires, i.e. the start of the new day.
//
// For accurate timing the user is advised to use one of the other supported time scales.
//
// Due to a limitation on the "seconds since the EPOCH start" count in ROOT's TTtimeStamp,
// the latest accessible date/time indication is until 19-jan-2038 02:14:07 UT,
// corresponding to Unix time 2147480047.
// However, since this NcTimestamp facility is based on the Julian date system,
// Julian, TAI etc. time keeping beyond the boundaries of the Unix time epoch is provided,
// albeit without the date/time indication.
//
// The return value indicates whether the date/time and UTC parameters are actually
// set Manually (1), Automatically (-1) or Failed (0).
//
// Due to computer accuracy the ns precision may be lost.
// For better precision it is advised to use the other date/time Set() facilities instead.
//
// The input arguments represent the following :
// ---------------------------------------------
// sec  : The (fractional) second count elapsed since the start of the Unix Epoch.
// utc  : Flag to denote which UTC parameter values "leap" and "dut" (see below) should be used.
//        "N" ==> No UTC parameters will be stored.
//                The TAI related time recording is disabled and the values of
//                the Leap Seconds and dut=UT-UTC will be set to zero.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//        "M" ==> Manually provided UTC parameters as specified by "leap" and "dut".
//                The provided UTC parameters will be used to determine UT1,
//                which will now become the reference time.
//        "A" ==> Automatically provided UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The retrieved UTC parameters will be used to determine UT1,
//                which will now become the reference time.
//                For further details see the memberfunction SetUTCparameters().
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT-UTC in seconds.
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// The default values are utc="A", leap=0, dut=0.
// However, if <1 sec precision is required, the actual dut value should be provided.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT-UTC will be set to zero.
// 2) In case utc="A" and no data files have been loaded, or no information is available,
//    the utc="N" mode will be invoked.

Definition at line 2606 of file NcTimestamp.cxx.

SetUT() [1/5]

void NcTimestamp::SetUT	(	Int_t	y,
		Int_t	d,
		Int_t	s,
		Int_t	ns = 0,
		Int_t	ps = 0,
		TString	utc = "A",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the NcTimestamp parameters corresponding to the specified elapsed
// timespan since the beginning of the new UT year.
// Note that UT may represent either UT1 or UTC as specified by the
// arguments "utc", "leap" and "dut", as outlined below.
//
// This facility is exact upto picosecond precision and as such is
// for scientific observations preferable above the corresponding
// Set function(s) of TTimestamp.
// The latter has a random spread in the sub-second part, which
// might be of use in generating distinguishable timestamps while
// still keeping second precision.
//
// The UT year and elapsed time span is entered via the following input arguments :
//
// y    : year in UT (e.g. 1952, 2003 etc...)
// d    : elapsed number of days
// s    : (remaining) elapsed number of seconds
// ns   : (remaining) elapsed number of nanoseconds
// ps   : (remaining) elapsed number of picoseconds
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The time that was specified represents UTC, which will serve as the reference time.
//                Since no Leap Second info is available, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//                The time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will from now on be the reference time.
//                The provided UTC parameters will serve to determine the TAI related time recording.
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The time that was specified represents UTC, and the retrieved UTC parameters
//                will be used to determine UT1, which will from now on be the reference time.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, this mode is equivalent to utc="N".
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
//        "U" ==> The time that was specified represents UT1, which will become the reference time.
//                This mode is equivalent to utc="A" apart from the fact that UT1 will not be modified.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT1-UTC in seconds.
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid date and/or time arguments, JD=0 is set to indicate that something went wrong.
// 2) In case of invalid "utc" input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
// 3) In case utc="A" or utc="U" and no data files have been loaded, or no information is available,
//    the TAI related time recording is disabled and the values of the Leap Seconds and dut=UT1-UTC
//    will be set to zero.
//
// The specified d, s, ns and ps values will be used in an additive
// way to determine the elapsed timespan.
// So, specification of d=1, s=100, ns=0, ps=0 will result in the
// same elapsed time span as d=0, s=24*3600+100, ns=0, ps=0.
// However, by making use of the latter the user should take care
// of possible integer overflow problems in the input arguments,
// which obviously will provide incorrect results.
//
// Note : ns=0, ps=0, utc="A", leap=0 and dut=0  are the default values.
//
// This facility first sets the (M)JD corresponding to the start (01-jan 00:00:00)
// of the specified UT year following the recipe of R.W. Sinnott
// Sky & Telescope 82, (aug. 1991) 183.
// Subsequently the day and (sub)second parts are added to the NcTimestamp.
// As such this facility is valid for all AD dates in the Gregorian calendar.

Definition at line 4251 of file NcTimestamp.cxx.

SetUT() [2/5]

void NcTimestamp::SetUT	(	Int_t	y,
		Int_t	m,
		Int_t	d,
		Int_t	hh,
		Int_t	mm,
		Double_t	s,
		TString	utc = "A",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the NcTimestamp parameters corresponding to the UT date and time
// in the Gregorian calendar as specified by the input arguments.
// Note that UT may represent either UT1 or UTC as specified by the
// arguments "utc", "leap" and "dut", as outlined below.
//
// Due to rounding errors the highest (i.e. picosecond) accuracy might not be reached.
// For a guaranteed picosecond precision please refer to the other SetUT() memberfunctions.
//
// The input arguments represent the following :
// y    : year in UT (e.g. 1952, 2003 etc...)
// m    : month in UT (1=jan  2=feb etc...)
// d    : day in UT (1-31)
// hh   : elapsed hours in UT (0-23)
// mm   : elapsed minutes in UT (0-59)
// s    : elapsed (fractional) seconds in UT (0-59.999...)
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The time that was specified represents UTC, which will serve as the reference time.
//                Since no Leap Second info is available, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//                The time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will from now on be the reference time.
//                The provided UTC parameters will serve to determine the TAI related time recording.
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The time that was specified represents UTC, and the retrieved UTC parameters
//                will be used to determine UT1, which will from now on be the reference time.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, this mode is equivalent to utc="N".
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
//        "U" ==> The time that was specified represents UT1, which will become the reference time.
//                This mode is equivalent to utc="A" apart from the fact that UT1 will not be modified.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT1-UTC in seconds.
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid date and/or time arguments, JD=0 is set to indicate that something went wrong.
// 2) In case of invalid "utc" input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
// 3) In case utc="A" or utc="U" and no data files have been loaded, or no information is available,
//    the TAI related time recording is disabled and the values of the Leap Seconds and dut=UT1-UTC
//    will be set to zero.
//
// The default values are utc="A", leap=0 and dut=0.

Definition at line 3964 of file NcTimestamp.cxx.

SetUT() [3/5]

void NcTimestamp::SetUT	(	Int_t	y,
		Int_t	m,
		Int_t	d,
		Int_t	hh,
		Int_t	mm,
		Int_t	ss,
		Int_t	ns = 0,
		Int_t	ps = 0,
		TString	utc = "A",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the NcTimestamp parameters corresponding to the UT date and time
// in the Gregorian calendar as specified by the input arguments.
// Note that UT may represent either UT1 or UTC as specified by the
// arguments "utc", "leap" and "dut", as outlined below.
//
// This facility is exact upto picosecond precision and as such is
// for scientific observations preferable above the corresponding
// Set function(s) of TTimestamp.
// The latter has a random spread in the sub-second part, which
// might be of use in generating distinguishable timestamps while
// still keeping second precision.
//
// The input arguments represent the following :
// y    : year in UT (e.g. 1952, 2003 etc...)
// m    : month in UT (1=jan  2=feb etc...)
// d    : day in UT (1-31)
// hh   : elapsed hours in UT (0-23)
// mm   : elapsed minutes in UT (0-59)
// ss   : elapsed seconds in UT (0-59)
// ns   : remaining fractional elapsed second of UT in nanosecond
// ps   : remaining fractional elapsed nanosecond of UT in picosecond
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The time that was specified represents UTC, which will serve as the reference time.
//                Since no Leap Second info is available, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//                The time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will from now on be the reference time.
//                The provided UTC parameters will serve to determine the TAI related time recording.
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The time that was specified represents UTC, and the retrieved UTC parameters
//                will be used to determine UT1, which will from now on be the reference time.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, this mode is equivalent to utc="N".
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
//        "U" ==> The time that was specified represents UT1, which will become the reference time.
//                This mode is equivalent to utc="A" apart from the fact that UT1 will not be modified.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT1-UTC in seconds.
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid date and/or time arguments, JD=0 is set to indicate that something went wrong.
// 2) In case of invalid "utc" input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
// 3) In case utc="A" or utc="U" and no data files have been loaded, or no information is available,
//    the TAI related time recording is disabled and the values of the Leap Seconds and dut=UT1-UTC
//    will be set to zero.
//
// The default values are ns=0, ps=0, utc="A", leap=0 and dut=0.
//
// This facility first determines the elapsed days, seconds etc...
// since the beginning of the specified UT year on basis of the
// input arguments. Subsequently it invokes the SetUT memberfunction
// for the elapsed timespan.
// As such this facility is valid for all AD dates in the Gregorian
// calendar with picosecond precision.

Definition at line 3871 of file NcTimestamp.cxx.

SetUT() [4/5]

void NcTimestamp::SetUT	(	Int_t	y,
		Int_t	m,
		Int_t	d,
		TString	time,
		TString	utc = "A",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the NcTimestamp parameters corresponding to the UT date and time
// in the Gregorian calendar as specified by the input arguments.
// Note that UT may represent either UT1 or UTC as specified by the
// arguments "utc", "leap" and "dut", as outlined below.
//
// Due to rounding errors the highest (i.e. picosecond) accuracy might not be reached.
// For a guaranteed picosecond precision please refer to the other SetUT() memberfunctions.
//
// The input arguments represent the following :
// y    : year in UT (e.g. 1952, 2003 etc...)
// m    : month in UT (1=jan  2=feb etc...)
// d    : day in UT (1-31)
// time : The UT time in the format hh:mm:ss.sss
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The time that was specified represents UTC, which will serve as the reference time.
//                Since no Leap Second info is available, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//                The time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will from now on be the reference time.
//                The provided UTC parameters will serve to determine the TAI related time recording.
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The time that was specified represents UTC, and the retrieved UTC parameters
//                will be used to determine UT1, which will from now on be the reference time.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, this mode is equivalent to utc="N".
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
//        "U" ==> The time that was specified represents UT1, which will become the reference time.
//                This mode is equivalent to utc="A" apart from the fact that UT1 will not be modified.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT1-UTC in seconds.
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid date and/or time arguments, JD=0 is set to indicate that something went wrong.
// 2) In case of invalid "utc" input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
// 3) In case utc="A" or utc="U" and no data files have been loaded, or no information is available,
//    the TAI related time recording is disabled and the values of the Leap Seconds and dut=UT1-UTC
//    will be set to zero.
//
// The default values are utc="A", leap=0 and dut=0.

Definition at line 4038 of file NcTimestamp.cxx.

SetUT() [5/5]

void NcTimestamp::SetUT	(	TString	date,
		TString	time,
		Int_t	mode,
		TString	utc = "A",
		Int_t	leap = 0,
		Double_t	dut = 0 )

// Set the NcTimestamp parameters corresponding to the UT date and time
// in the Gregorian calendar as specified by the input arguments.
// Note that UT may represent either UT1 or UTC as specified by the
// arguments "utc", "leap" and "dut", as outlined below.
//
// Due to rounding errors the highest (i.e. picosecond) accuracy might not be reached.
// For a guaranteed picosecond precision please refer to the other SetUT() memberfunctions.
//
// The input arguments represent the following :
// date : The UT date in the format dd-mm-yyyy or dd/mm/yyyy or ddmmyyyy (mode=0)
// date : The UT date in the format yyyy-mm-dd or yyyy/mm/dd or yyyymmdd (mode=1)
// date : The UT date in the format mm-dd-yyyy or mm/dd/yyyy or mmddyyyy (mode=2)
// date : The UT date in the format yyyy-dd-mm or yyyy/dd/mm or yyyyddmm (mode=3)
// time : The UT time in the format hh:mm:ss.sss
// mode : Date format specifier (see above)
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The time that was specified represents UTC, which will serve as the reference time.
//                Since no Leap Second info is available, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//                The time that was specified represents UTC, and the provided UTC parameters
//                will be used to determine UT1, which will from now on be the reference time.
//                The provided UTC parameters will serve to determine the TAI related time recording.
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The time that was specified represents UTC, and the retrieved UTC parameters
//                will be used to determine UT1, which will from now on be the reference time.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, this mode is equivalent to utc="N".
//                For further details see the memberfunctions LoadUTCparameterFiles() and GetUTCparameters().
//        "U" ==> The time that was specified represents UT1, which will become the reference time.
//                This mode is equivalent to utc="A" apart from the fact that UT1 will not be modified.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT1-UTC in seconds.
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid date and/or time arguments, JD=0 is set to indicate that something went wrong.
// 2) In case of invalid "utc" input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
// 3) In case utc="A" or utc="U" and no data files have been loaded, or no information is available,
//    the TAI related time recording is disabled and the values of the Leap Seconds and dut=UT1-UTC
//    will be set to zero.
//
// The default values are utc="A", leap=0 and dut=0.
//
// Note : In case of incompatible argument(s) the current UT date/time will not be modified.

Definition at line 4128 of file NcTimestamp.cxx.

SetUTCparameters()

Int_t NcTimestamp::SetUTCparameters ( TString utc, Int_t leap, Double_t dut )

protected

// Internal memberfunction to set the UTC parameters (i.e. Leap Seconds and dut=UT1-UTC).
// The TAI time recording is updated accordingly, depending on the input argument "utc", as outlined below.
//
// The return value indicates whether the UTC parameters are actually set or not,
// and has the following conventions :
//
//  1 --> The UTC parameters were set manually and used to determine UT1 from UTC.
//  0 --> No UTC parameters were provided and the stored reference time is UTC.
// -1 --> The UTC parameters were retrieved from the IERS data files and used to determine UT1 from UTC.
// -2 --> The UTC parameters were retrieved from the IERS data files and used to determine all TAI times from UT1.
// -3 --> No UTC parameters were provided and the stored reference time is UT1.
//
// The input arguments represent the following :
// ---------------------------------------------
// utc  : Flag to denote whether the UTC parameters "leap" and "dut" (see below) are provided or not.
//        "N" ==> No UTC parameters will be stored.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The time that was specified c.q. stored represents UTC, which serves as reference time.
//                Since no Leap Second info is available, the TAI related time recording is disabled
//                and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
//        "M" ==> Manual setting of the UTC parameters as specified by "leap" and "dut".
//                The time that was specified c.q. stored represents UTC, and the provided UTC parameters
//                may be used by the calling function to determine UT1, which may then become the reference time.
//                The provided UTC parameters will serve to determine the TAI related time recording.
//        "A" ==> Automatic setting of the UTC parameters from the loaded IERS data files.
//                In this case the specified values of "leap" and "dut" are irrelevant.
//                The time that was specified c.q. stored represents UTC, and the retrieved UTC parameters
//                may be used by the calling function to determine UT1, which may then become the reference time.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
//                In case the corresponding UTC parameters are not found, this mode is equivalent to utc="N".
//                For further details see the memberfunction LoadUTCparameterFiles().
//        "U" ==> The time that was specified c.q. stored represents UT1, which will remain the reference time.
//                This mode is equivalent to utc="A" apart from the fact that UT1 will not be modified.
//                The retrieved UTC parameters will serve to determine the TAI related time recording.
// leap : The accumulated number of Leap Seconds corresponding to this date/time.
// dut  : The monitored time difference UT1-UTC in seconds.
//
// The value of UT1-UTC is kept within 0.9 sec. by the introduction of Leap Seconds into UTC.
// An overview of the accumulated leap seconds is available at :
//                https://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
//                     or  http://maia.usno.navy.mil/ser7/tai-utc.dat
//
// The time difference dUT=UT1-UTC is monitored on a daily basis and the data are available at :
//                 https://hpiers.obspm.fr/iers/series/opa/eopc04
//                     or  http://maia.usno.navy.mil/ser7/ser7.dat
//
// The accuracy of the dUT=UT1-UTC monitoring is about 10 microseconds.
//
// Notes :
// -------
// 1) In case of invalid input arguments the TAI related time recording is disabled
//    and the values of the Leap Seconds and dut=UT1-UTC will be set to zero.
// 2) For the return values 0 and -3 only the UTC (0) or UT1 (-3) time recording is available,
//    depending on the input argument "utc", as outlined above.
// 3) A return value of -2 or -3 indicates that the time which was entered via SetUT()
//    or via one of the Julian Date facilities was actually UT1.

Definition at line 2858 of file NcTimestamp.cxx.

Member Data Documentation

fCalcns

Int_t NcTimestamp::fCalcns

private

Definition at line 133 of file NcTimestamp.h.

fCalcs

Int_t NcTimestamp::fCalcs

private

Definition at line 132 of file NcTimestamp.h.

fDut

Double_t NcTimestamp::fDut

protected

Definition at line 116 of file NcTimestamp.h.

fJns

Int_t NcTimestamp::fJns

protected

Definition at line 112 of file NcTimestamp.h.

fJps

Int_t NcTimestamp::fJps

protected

Definition at line 113 of file NcTimestamp.h.

fJsec

Int_t NcTimestamp::fJsec

protected

Definition at line 111 of file NcTimestamp.h.

fLeap

Int_t NcTimestamp::fLeap

protected

Definition at line 115 of file NcTimestamp.h.

fMJD

Int_t NcTimestamp::fMJD

protected

Definition at line 110 of file NcTimestamp.h.

fTmjd

Int_t NcTimestamp::fTmjd

protected

Definition at line 117 of file NcTimestamp.h.

fTns

Int_t NcTimestamp::fTns

protected

Definition at line 119 of file NcTimestamp.h.

fTps

Int_t NcTimestamp::fTps

protected

Definition at line 120 of file NcTimestamp.h.

fTsec

Int_t NcTimestamp::fTsec

protected

Definition at line 118 of file NcTimestamp.h.

fUtc

Int_t NcTimestamp::fUtc

protected

Definition at line 114 of file NcTimestamp.h.

fUTCdata

TTree* NcTimestamp::fUTCdata

protected

Definition at line 121 of file NcTimestamp.h.

---

The documentation for this class was generated from the following files:

• ncfspack/source/NcTimestamp.h
• ncfspack/source/NcTimestamp.cxx
