RnoGANT Class Reference

Signal (Hit) handling of an RNO-G Generic Antenna (GANT). More...

#include "RnoGANT.h"

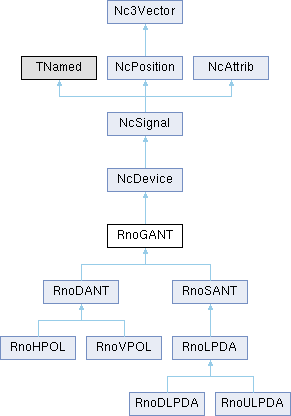

Inheritance diagram for RnoGANT:
NcDevice NcSignal NcPosition NcAttrib Nc3Vector RnoDANT RnoSANT RnoHPOL RnoVPOL RnoLPDA RnoDLPDA RnoULPDA

Detailed Description

Signal (Hit) handling of an RNO-G Generic Antenna (GANT).

Copyright(c) 2021, RNO-G Experiment at Summit Station. All rights reserved.
Author: The RNO-G NCFS-based Offline Project.
Contributors are mentioned in the code where appropriate.
Permission to use, copy, modify and distribute this software and its
documentation strictly for non-commercial purposes is hereby granted
without fee, provided that the above copyright notice appears in all
copies and that both the copyright notice and this permission notice
appear in the supporting documentation.
The authors make no claims about the suitability of this software for
any purpose. It is provided "as is" without express or implied warranty.
// Class RnoGANT
// Signal/Hit handling of an RNO-G Generic Antenna (GANT).
// Basically this class provides an RNO-G tailored user interface
// to the functionality of the class NcDevice.
// This class is meant to provide a base class for more specific antennas
// (i.e. LPDAs, HPOLs or VPOLs).
// To specifically address Surface or Deep antennas, please refer to the
// derived classes RnoSANT and RnoDANT, respectively.
//
// Example :
// =========
//
// Creation and filling of an RNO-G Generic Antenna with fictituous data
// ---------------------------------------------------------------------
//
// For further functionality please refer to NcDevice, NcSignal and NcAttrib.
//
// RnoGANT m;
// m.SetUniqueID(123);
// m.SetNameTitle("ANT123","Generic RNO-G antenna");
//
// // Indicate status (e.g. version of readout electronics)
// // via a user definable status word.
// Int_t stat=20031;
// m.SetStatus(stat);
//
// Float_t pos[3]={1,2,3};
// m.SetPosition(pos,"car");
//
// // The starting unique signal ID.
// // In this example it will be increased automatically
// // whenever a new signal is created.
// Int_t sid=10;
//
// NcSignal s;
//
// s.SetSlotName("ADC",1);
// s.SetSlotName("LE",2);
// s.SetSlotName("TOT",3);
//
// s.Reset();
// s.SetName("ANT123 Hit 1");
// s.SetUniqueID(sid++);
// s.SetSignal(100,"ADC");
// s.SetSignal(-100,"LE");
// s.SetSignal(-1000,"TOT");
// m.AddHit(s);
//
// s.Reset();
// s.SetName("ANT123 Hit 2");
// s.SetUniqueID(sid++);
// s.SetSignal(110,"ADC");
// s.SetSignal(-101,"LE");
// s.SetSignal(1001,"TOT");
// m.AddHit(s);
//
// s.Reset();
// s.SetName("ANT123 Hit 3");
// s.SetUniqueID(sid++);
// s.SetSignal(120,"ADC");
// s.SetSignal(-102,"LE");
// s.SetSignal(-1002,"TOT");
// m.AddHit(s);
//
// // Provide module data overview
// m.Data();
//
// // Accessing the 3rd stored hit
// NcSignal* sx=m.GetHit(3);
// if (sx) sx->Data();
//
// // Explicit hit selection via unique ID
// NcSignal* sx=m.GetIdHit(12);
// if (sx) sx->Data();
//
// // Obtain the minimum and maximum recorded TOT value
// Float_t vmin,vmax;
// m.GetExtremes(vmin,vmax,"TOT");
// cout << " Extreme values : vmin = " << vmin << " vmax = " << vmax << endl;
//
// // Ordered hits w.r.t. decreasing TOT
// TObjArray* ordered=m.SortHits("TOT",-1);
// Int_t nhits=0;
// if (ordered) nhits=ordered->GetEntries();
// for (Int_t i=0; i<nhits; i++)
// {
// NcSignal* sx=(NcSignal*)ordered->At(i);
// if (sx) sx->Data();
// }
//
//--- Author: Nick van Eijndhoven, IIHE-VUB, Brussel, May 3, 2021 10:52Z
//- Modified: Nick van Eijndhoven, IIHE-VUB, Brussel, July 5, 2022 10:27Z

Definition at line 11 of file RnoGANT.h.

Public Member Functions

 RnoGANT (const char *name="", const char *title="")

 RnoGANT (const RnoGANT &q)

virtual ~RnoGANT ()

virtual TObject * Clone (const char *name="") const

Int_t GetANTId (Int_t station, Int_t string, Int_t number) const

Int_t GetNumber (Int_t id=0) const

Int_t GetStation (Int_t id=0) const

Int_t GetString (Int_t id=0) const

Double_t GetTimeResidual (NcEvent *evt, NcTrack *t, Int_t j, TString name="LE", Int_t mode=7, Int_t vgroup=1) const

Double_t GetTimeResidual (NcEvent *evt, NcTrack *t, NcSignal *s, TString name="LE", Int_t mode=7, Int_t vgroup=1) const

- Public Member Functions inherited from NcDevice
 NcDevice (const char *name="", const char *title="")

 NcDevice (const NcDevice &dev)

virtual ~NcDevice ()

void AddHit (NcSignal &s)

void AddHit (NcSignal *s)

virtual void Data (TString f="car", TString u="rad") const

void DisplayHits (Int_t idx=1, Float_t scale=-1, TObjArray *hits=0, Int_t dp=0, Int_t mode=1, Int_t mcol=4)

void DisplayHits (TString name, Float_t scale=-1, TObjArray *hits=0, Int_t dp=0, Int_t mode=1, Int_t mcol=4)

NcPosition GetCOG (TObjArray *hits, Int_t pos=0, TString slotname="none", Int_t mode=0) const

Double_t GetCVAL (TObjArray *hits, TString obsname, TString weightname="none", Int_t mode=0, Int_t type=1) const

void GetExtremes (Float_t &vmin, Float_t &vmax, Int_t idx=1, TObjArray *hits=0, Int_t mode=1, Int_t deadcheck=1) const

void GetExtremes (Float_t &vmin, Float_t &vmax, TString name, TObjArray *hits=0, Int_t mode=1, Int_t deadcheck=1) const

NcSignal * GetHit (Int_t j) const

NcSignal * GetHit (TString name, Int_t mode=0, Int_t opt=0) const

Int_t GetHitCopy () const

Nc3Vector GetHitPath (TObjArray *hits, Int_t pos=0) const

TObjArray * GetHits ()

void GetHits (TObjArray &selected, TString name, Int_t mode=0, Int_t opt=0, TObjArray *hits=0) const

NcSignal * GetIdHit (Int_t id) const

Int_t GetNhits () const

Int_t GetNhits (TString name, Int_t mode=0, Int_t opt=0) const

Int_t GetStatus () const

void RemoveHit (NcSignal &s)

void RemoveHit (NcSignal *s)

void RemoveHits ()

virtual void Reset (Int_t mode=0)

void SetHitCopy (Int_t j)

virtual void SetOwner (Bool_t own=kTRUE)

void SetStatus (Int_t word)

void ShowHit (Int_t j=0, TString f="car", TString u="rad") const

Double_t SlideWindow (TObjArray *hits, Double_t thres, Double_t swin, TString sname, Int_t smode=0, TString wname="none", Int_t wmode=0, Int_t *i1=0, Int_t *i2=0) const

TObjArray * SortHits (Int_t idx=1, Int_t mode=-1, TObjArray *hits=0, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)

TObjArray * SortHits (TString name, Int_t mode=-1, TObjArray *hits=0, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)

Double_t SumSignals (Int_t idx, Int_t mode=1, TObjArray *hits=0)

Double_t SumSignals (TString name, Int_t mode=1, TObjArray *hits=0)

- Public Member Functions inherited from NcSignal
 NcSignal (const char *name="", const char *title="")

 NcSignal (const NcSignal &s)

virtual ~NcSignal ()

void AddLink (TObject *obj, Int_t j=1)

void AddLink (TObject *obj, TString name)

virtual void AddSignal (Double_t sig, Int_t j=1)

virtual void AddSignal (Double_t sig, TString name)

void AddTrack (NcTrack &t, Int_t mode=1)

void DeleteSample (Int_t j=1)

void DeleteSample (TString name)

virtual void DeleteSignals (Int_t mode=0)

void DeleteWaveform (Int_t j=1)

void DeleteWaveform (TString name)

NcSample * DisplaySample (Int_t j=1, Int_t i=1) const

NcSample * DisplaySample (TString name, Int_t i=1) const

NcDevice * GetDevice () const

Int_t GetErrorFlag (Int_t j=1) const

Int_t GetErrorFlag (TString name) const

NcTrack * GetIdTrack (Int_t id) const

Int_t GetIndices (TObject *obj, Int_t j, TArrayI &ks) const

Int_t GetIndices (TObject *obj, TArrayI &js, Int_t k) const

Int_t GetIndices (TObject *obj, TArrayI &js, TArrayI &ks) const

Int_t GetIndices (TObject *obj, TString name, TArrayI &ks) const

TObject * GetLink (Int_t j=1, Int_t k=1) const

TObject * GetLink (TString name, Int_t k=1) const

Int_t GetNerrors () const

Int_t GetNlinks (TObject *obj, TString name) const

Int_t GetNlinks (TObject *obj=0, Int_t j=0) const

Int_t GetNsamples () const

virtual Int_t GetNslots () const

Int_t GetNtracks (NcTrack *t=0) const

Int_t GetNvalues () const

Int_t GetNwaveforms () const

NcSample * GetSample (Int_t j=1) const

NcSample * GetSample (TString name) const

Int_t GetSampleIndex (TString name) const

virtual Float_t GetSignal (Int_t j=1, Int_t mode=0) const

virtual Float_t GetSignal (TString name, Int_t mode=0) const

virtual Float_t GetSignalError (Int_t j=1) const

virtual Float_t GetSignalError (TString name) const

Int_t GetSignalFlag (Int_t j=1) const

Int_t GetSignalFlag (TString name) const

Int_t GetSwapMode () const

NcTrack * GetTrack (Int_t j) const

TH1F * GetWaveform (Int_t j=1) const

TH1F * GetWaveform (TString name) const

Int_t GetWaveformIndex (TString name) const

virtual void List (Int_t j=0) const

virtual void List (TString name) const

void ListSample (Int_t j=0) const

void ListTrack (Int_t j=0) const

void ListWaveform (Int_t j=0) const

void RemoveTrack (NcTrack &t, Int_t mode=1)

void RemoveTracks (Int_t mode=1)

void ResetLink (Int_t j=1, Int_t k=1)

void ResetLink (TString name, Int_t k=1)

void ResetLinks (TObject *obj, Int_t j=0, Int_t k=0)

void ResetLinks (TObject *obj, TString name, Int_t k=0)

void ResetSample (Int_t j=1)

void ResetSample (TString name)

virtual void ResetSignals (Int_t mode=0)

void ResetWaveform (Int_t j=1)

void ResetWaveform (TString name)

void SetDevice (NcDevice *dev)

void SetLink (TObject *obj, Int_t j=1, Int_t k=1)

void SetLink (TObject *obj, TString name, Int_t k=1)

void SetSample (NcSample *sample, Int_t j=1)

virtual void SetSignal (Double_t sig, Int_t j=1)

virtual void SetSignal (Double_t sig, TString name)

virtual void SetSignalError (Double_t dsig, Int_t j=1)

virtual void SetSignalError (Double_t dsig, TString name)

void SetSwapMode (Int_t swap=1)

void SetWaveform (TH1F *waveform, Int_t j=1)

- Public Member Functions inherited from NcPosition
 NcPosition ()

 NcPosition (const NcPosition &p)

virtual ~NcPosition ()

Double_t GetDistance (NcPosition &p, Float_t scale=-1)

Double_t GetDistance (NcPosition *p, Float_t scale=-1)

NcPosition & GetPosition ()

void GetPosition (Double_t *r, TString f, TString u="rad", Float_t s=-1) const

void GetPosition (Float_t *r, TString f, TString u="rad", Float_t s=-1) const

void GetPositionErrors (Double_t *e, TString f, TString u="rad", Float_t s=-1) const

void GetPositionErrors (Float_t *e, TString f, TString u="rad", Float_t s=-1) const

NcTimestamp * GetTimestamp ()

Float_t GetUnitScale () const

void RemoveTimestamp ()

void ResetPosition ()

void SetPosition (Double_t *r, TString f, TString u="rad")

void SetPosition (Double_t r1, Double_t r2, Double_t r3, TString f, TString u="rad")

void SetPosition (Float_t *r, TString f, TString u="rad")

void SetPosition (Nc3Vector &r)

void SetPositionErrors (Double_t *e, TString f, TString u="rad")

void SetPositionErrors (Double_t e1, Double_t e2, Double_t e3, TString f, TString u="rad")

void SetPositionErrors (Float_t *e, TString f, TString u="rad")

void SetTimestamp (NcTimestamp &t)

void SetUnitScale (Float_t s)

- Public Member Functions inherited from Nc3Vector
 Nc3Vector ()

 Nc3Vector (const Nc3Vector &v)

virtual ~Nc3Vector ()

Double_t ConvertAngle (Double_t a, TString in, TString out) const

Nc3Vector Cross (Nc3Vector &q) const

Double_t Dot (Nc3Vector &q)

void GetErrors (Double_t *e, TString f, TString u="rad") const

void GetErrors (Float_t *e, TString f, TString u="rad") const

Double_t GetNorm ()

virtual Double_t GetOpeningAngle (Nc3Vector &q, TString u="rad")

Nc3Vector GetPrimed (TRotMatrix *m) const

Double_t GetPseudoRapidity ()

Double_t GetResultError () const

Nc3Vector GetUnprimed (TRotMatrix *m) const

Nc3Vector GetVecLong () const

void GetVector (Double_t *v, TString f, TString u="rad") const

void GetVector (Float_t *v, TString f, TString u="rad") const

Nc3Vector GetVecTrans () const

Double_t GetX (Int_t i, TString f, TString u="rad")

Int_t HasErrors () const

Int_t HasVector () const

virtual void Load (Nc3Vector &q)

Nc3Vector operator* (Double_t s) const

Nc3Vector & operator*= (Double_t s)

Nc3Vector operator+ (Nc3Vector &q) const

Nc3Vector & operator+= (Nc3Vector &q)

Nc3Vector operator- (Nc3Vector &q) const

Nc3Vector & operator-= (Nc3Vector &q)

Nc3Vector operator/ (Double_t s) const

Nc3Vector & operator/= (Double_t s)

Nc3Vector & operator= (const Nc3Vector &q)

void PrintAngle (Double_t a, TString in, TString out, Int_t ndig=1, Bool_t align=kFALSE) const

void SetErrors (Double_t *e, TString f, TString u="rad")

void SetErrors (Double_t e1, Double_t e2, Double_t e3, TString f, TString u="rad")

void SetErrors (Float_t *e, TString f, TString u="rad")

void SetVector (Double_t *v, TString f, TString u="rad")

void SetVector (Double_t v1, Double_t v2, Double_t v3, TString f, TString u="rad")

void SetVector (Float_t *v, TString f, TString u="rad")

virtual void SetZero ()

- Public Member Functions inherited from NcAttrib
 NcAttrib ()

 NcAttrib (const NcAttrib &a)

virtual ~NcAttrib ()

void AddNamedSlot (TString s)

void DecreaseEdgeValue (Int_t j=1)

void DecreaseEdgeValue (TString name)

void DeleteCalibrations (Int_t mode=0)

TF1 * GetCalFunction (Int_t j=1) const

TF1 * GetCalFunction (TString name) const

Int_t GetCalWord (Int_t j=1) const

Int_t GetCalWord (TString name) const

Int_t GetDeadValue (Int_t j=1) const

Int_t GetDeadValue (TString name) const

TF1 * GetDecalFunction (Int_t j=1) const

TF1 * GetDecalFunction (TString name) const

Int_t GetEdgeValue (Int_t j=1) const

Int_t GetEdgeValue (TString name) const

Float_t GetGain (Int_t j=1) const

Float_t GetGain (TString name) const

Int_t GetGainFlag (Int_t j=1) const

Int_t GetGainFlag (TString name) const

Int_t GetLockValue (Int_t j=1) const

Int_t GetLockValue (TString name) const

Int_t GetNcalflags () const

Int_t GetNcalfuncs () const

Int_t GetNdecalfuncs () const

Int_t GetNgains () const

Int_t GetNnames () const

Int_t GetNoffsets () const

Float_t GetOffset (Int_t j=1) const

Float_t GetOffset (TString name) const

Int_t GetOffsetFlag (Int_t j=1) const

Int_t GetOffsetFlag (TString name) const

Int_t GetSlotIndex (TString name, Int_t opt=0) const

TString GetSlotName (Int_t j=1) const

void IncreaseEdgeValue (Int_t j=1)

void IncreaseEdgeValue (TString name)

virtual void Load (NcAttrib &a, Int_t j=0)

virtual void Load (NcAttrib &a, TString name)

void Lock (Int_t j=1)

void Lock (TString name)

void ResetGain (Int_t j=1)

void ResetGain (TString name)

void ResetOffset (Int_t j=1)

void ResetOffset (TString name)

void SetAlive (Int_t j=1)

void SetAlive (TString name)

void SetCalFunction (TF1 *f, Int_t j=1)

void SetCalFunction (TF1 *f, TString name)

void SetDead (Int_t j=1)

void SetDead (TString name)

void SetDecalFunction (TF1 *f, Int_t j=1)

void SetDecalFunction (TF1 *f, TString name)

void SetEdgeOff (Int_t j=1)

void SetEdgeOff (TString name)

void SetEdgeOn (Int_t j=1)

void SetEdgeOn (TString name)

void SetEdgeValue (Int_t val, Int_t j=1)

void SetEdgeValue (Int_t val, TString name)

void SetGain (Double_t gain, Int_t j=1)

void SetGain (Double_t gain, TString name)

void SetOffset (Double_t off, Int_t j=1)

void SetOffset (Double_t off, TString name)

void SetSlotName (TString s, Int_t j=1)

void Unlock (Int_t j=1)

void Unlock (TString name)


Additional Inherited Members

- Public Attributes inherited from NcSignal
Bool_t fDevset

- Protected Member Functions inherited from NcSignal
void SetSigFlags (Int_t is, Int_t ie, Int_t j)

- Protected Member Functions inherited from NcAttrib
void SetCalFlags (Int_t gf, Int_t of, Int_t j)

- Protected Attributes inherited from NcDevice
Int_t fHitCopy

TObjArray * fHits

TObjArray * fMarkers
 ! Temp. array to hold the 3D markers for the hit display

TObjArray * fOrdered
 ! Temp. array to hold the ordered hits

Int_t fStatus

- Protected Attributes inherited from NcSignal
TObject * fDevice

TArrayF * fDsignals

NcObjMatrix * fLinks

TObjArray * fSamples

TArrayI * fSigflags

TArrayF * fSignals

TObjArray * fTracks

TObjArray * fWaveforms

- Protected Attributes inherited from NcPosition
Float_t fScale

NcTimestamp * fTstamp

- Protected Attributes inherited from Nc3Vector
Double32_t fDresult
 ! Error on scalar result (e.g. norm or dotproduct)

Int_t fNv

Double32_t * fV

- Protected Attributes inherited from NcAttrib
TArrayI * fCalflags

TObjArray * fCalfuncs

TObjArray * fDecalfuncs

TArrayF * fGains

TObjArray * fNames

TArrayF * fOffsets


Constructor & Destructor Documentation

◆ RnoGANT() [1/2]

RnoGANT::RnoGANT ( const char * name = "",
const char * title = "" )
// Default constructor.

Definition at line 123 of file RnoGANT.cxx.

◆ ~RnoGANT()

RnoGANT::~RnoGANT ( )
virtual
// Default destructor.

Definition at line 132 of file RnoGANT.cxx.

◆ RnoGANT() [2/2]

RnoGANT::RnoGANT ( const RnoGANT & q)
// Copy constructor.

Definition at line 141 of file RnoGANT.cxx.

Member Function Documentation

◆ Clone()

TObject * RnoGANT::Clone ( const char * name = "") const
virtual
// Make a deep copy of the current object and provide the pointer to the copy.
// This memberfunction enables automatic creation of new objects of the
// correct type depending on the object type, a feature which may be very useful
// for containers like NcEvent when adding objects in case the
// container owns the objects. This feature allows e.g. NcEvent
// to store either RnoGANT objects or objects derived from RnoGANT
// via tha AddDevice memberfunction, provided these derived classes also have
// a proper Clone memberfunction.

Reimplemented from NcDevice.

Reimplemented in RnoDANT, RnoDLPDA, RnoHPOL, RnoLPDA, RnoSANT, RnoULPDA, and RnoVPOL.

Definition at line 406 of file RnoGANT.cxx.

◆ GetANTId()

Int_t RnoGANT::GetANTId ( Int_t station,
Int_t string,
Int_t number ) const
// Provide the antenna unique ID based on the station, string and number indicators.
//
// Definition of antenna number :
// ------------------------------
// Number=j indicates the j-th antenna on the string, where j=1
// corresponds to the antenna at the top of the power string.
//
// The top level antennas on the helper strings correspond to number=7.
//
// The surface antennas are not connected to a string, but they are
// numbered 1-9 to reflect the Channels 12-20 consecutively.
//
// In case of inconsistent input the value -1 is returned.

Definition at line 270 of file RnoGANT.cxx.

◆ GetNumber()

Int_t RnoGANT::GetNumber ( Int_t id = 0) const
// Provide the antenna or DAQ channel number according to the specified unique "id".
//
// Input argument :
// ----------------
// id > 0 : Antenna number (see below) for the specified unique "id" will be provided.
// = 0 : Antenna number (see below) for the current antenna will be provided.
// < 0 : DAQ channel number for the current antenna will be provided.
//
// Definition of antenna number :
// ------------------------------
// Number=j indicates the j-th antenna on the string, where j=1
// corresponds to the antenna at the top of the power string.
//
// The top level antennas on the helper strings correspond to number=7.
//
// The surface antennas are not connected to a string, but they are
// numbered 1-9 to reflect the Channels 12-20 consecutively.
//
// The default value is id=0;
//
// In case of inconsistent input the value -1 is returned.

Definition at line 214 of file RnoGANT.cxx.

◆ GetStation()

Int_t RnoGANT::GetStation ( Int_t id = 0) const
// Provide the corresponding station number for this antenna.
//
// In case the user has specified the input argument id>0, the station number
// corresponding to the specified id for the current antenna class will be returned.
// Otherwise the station number corresponding with the current antenna will be returned.
//
// In case of inconsistent data, the value -1 is returned.
//
// The default value is id=0;

Definition at line 150 of file RnoGANT.cxx.

◆ GetString()

Int_t RnoGANT::GetString ( Int_t id = 0) const
// Provide the string number for the antenna with the specified unique "id".
//
// For id=0, the string number corresponding with the current antenna will be returned.
//
// Note : For the surface antennas the value 0 will be returned.
//
// In case of inconsistent data, the value -1 is returned.
//
// The default value is id=0;

Definition at line 178 of file RnoGANT.cxx.

◆ GetTimeResidual() [1/2]

Double_t RnoGANT::GetTimeResidual ( NcEvent * evt,
NcTrack * t,
Int_t j,
TString name = "LE",
Int_t mode = 7,
Int_t vgroup = 1 ) const
// Provide the time residual (in nanoseconds) of the j-th hit (first hit is at j=1) w.r.t. a track.
//
// Input arguments :
// -----------------
//
// evt : Event pointer.
// t : Track pointer.
// j : Index to the j-th hit of the current device (j=1 is first hit).
// name : Name of the signal slot that contains the recorded hit time.
// mode : Mode to retrieve the signal value.
// (see the memberfunction GetSignal() of class NcSignal for details)
// vgroup : Take the difference between group and phase velocity of the Cherenkov front
// into account (1) or not (0).
//
// The default values are : name="LE", mode=7 and vgroup=1.
//
// Note : In case of inconsistent input a value of -99999 will be returned.
//
// For further details concerning the definition and calculation of the
// time residual please refer to Astroparticle Physics 28 (2007) 456.

Definition at line 374 of file RnoGANT.cxx.

◆ GetTimeResidual() [2/2]

Double_t RnoGANT::GetTimeResidual ( NcEvent * evt,
NcTrack * t,
NcSignal * s,
TString name = "LE",
Int_t mode = 7,
Int_t vgroup = 1 ) const
// Provide the time residual (in nanoseconds) of a recorded signal w.r.t. a track.
//
// Input arguments :
// -----------------
//
// evt : Event pointer.
// t : Track pointer.
// s : Signal pointer.
// name : Name of the signal slot that contains the recorded hit time.
// mode : Mode to retrieve the signal value.
// (see the memberfunction GetSignal() of class NcSignal for details)
// vgroup : Take the difference between group and phase velocity of the Cherenkov front
// into account (1) or not (0).
//
// The default values are : name="LE", mode=7 and vgroup=1.
//
// Note : In case of inconsistent input a value of -99999 will be returned.
//
// For further details concerning the definition and calculation of the
// time residual please refer to Astroparticle Physics 28 (2007) 456.

Definition at line 303 of file RnoGANT.cxx.

The documentation for this class was generated from the following files:
