Generic handling of detector signal (calibration) attributes. More...

#include "NcAttrib.h"

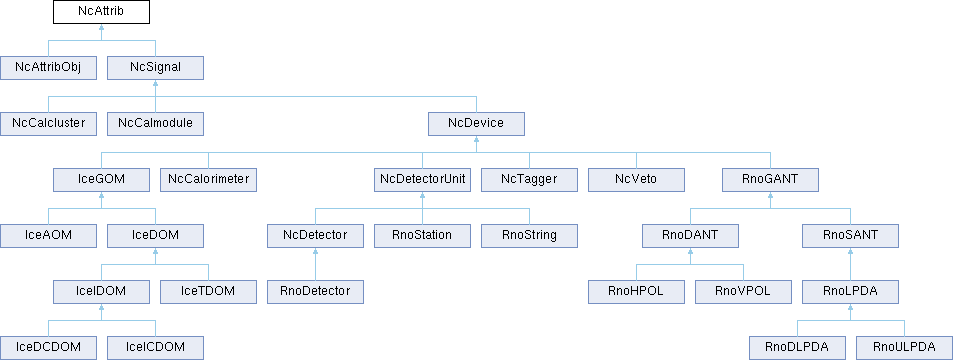

Inheritance diagram for NcAttrib:

Detailed Description

Generic handling of detector signal (calibration) attributes.

Copyright(c) 2003 NCFS/IIHE, All Rights Reserved.                           *
                                                                            *
Authors: The Netherlands Center for Fundamental Studies (NCFS).             *
         The Inter-university Institute for High Energies (IIHE).           *
                   Website : http://www.iihe.ac.be                          *
           Contact : Nick van Eijndhoven (nickve.nl@gmail.com)              *
                                                                            *
Contributors are mentioned in the code where appropriate.                   *
                                                                            *
No part of this software may be used, copied, modified or distributed       *
by any means nor transmitted or translated into machine language for        *
commercial purposes without written permission by the IIHE representative.  *
Permission to use the software strictly for non-commercial purposes         *
is hereby granted without fee, provided that the above copyright notice     *
appears in all copies and that both the copyright notice and this           *
permission notice appear in the supporting documentation.                   *
This software is provided "as is" without express or implied warranty.      *
The authors make no claims that this software is free of error, or is       *
consistent with any particular standard of merchantability, or that it      *
will meet your requirements for any particular application, other than      *
indicated in the corresponding documentation.                               *
This software should not be relied on for solving a problem whose           *
incorrect solution could result in injury to a person or loss of property.  *
If you do use this software in such a manner, it is at your own risk.       *
The authors disclaim all liability for direct or consequential damage       *
resulting from your use of this software.                                   *

// Class NcAttrib
// Generic handling of detector signal (calibration) attributes.
// Normally this class is only used as a base class to provide the various
// attributes to the derived class. An example of this is NcSignal.
// However, one can of course also use this class on its own as shown
// in the simple example hereafter.
//
// Example :
// ---------
// NcAttrib a;
// a.SetSlotName("PMT amplitude in Volt");
// a.SetGain(250.7);
// a.SetSlotName("Time of flight in ns",2);
// a.SetOffset(-22.5,2);
// a.SetSlotName("PMT amplitude in ADC",3);
// a.SetGain(1340,3);
// a.SetSlotName("TDC",4);
// a.SetOffset(10.75,"TDC");
// a.SetEdgeOn(3);
// a.SetDead(1);
// a.List();
//
//--- Author: Nick van Eijndhoven 18-sep-2003 Utrecht University
//- Modified: NvE $Date: 2012-07-18 16:51:01 +0200 (Wed, 18 Jul 2012) $ NCFS

Definition at line 15 of file NcAttrib.h.

Public Member Functions
	NcAttrib ()

	NcAttrib (const NcAttrib &a)

virtual	~NcAttrib ()

void	AddNamedSlot (TString s)

void	DecreaseEdgeValue (Int_t j=1)

void	DecreaseEdgeValue (TString name)

void	DeleteCalibrations (Int_t mode=0)

TF1 *	GetCalFunction (Int_t j=1) const

TF1 *	GetCalFunction (TString name) const

Int_t	GetCalWord (Int_t j=1) const

Int_t	GetCalWord (TString name) const

Int_t	GetDeadValue (Int_t j=1) const

Int_t	GetDeadValue (TString name) const

TF1 *	GetDecalFunction (Int_t j=1) const

TF1 *	GetDecalFunction (TString name) const

Int_t	GetEdgeValue (Int_t j=1) const

Int_t	GetEdgeValue (TString name) const

Float_t	GetGain (Int_t j=1) const

Float_t	GetGain (TString name) const

Int_t	GetGainFlag (Int_t j=1) const

Int_t	GetGainFlag (TString name) const

Int_t	GetLockValue (Int_t j=1) const

Int_t	GetLockValue (TString name) const

Int_t	GetNcalflags () const

Int_t	GetNcalfuncs () const

Int_t	GetNdecalfuncs () const

Int_t	GetNgains () const

Int_t	GetNnames () const

Int_t	GetNoffsets () const

virtual Int_t	GetNslots () const

Float_t	GetOffset (Int_t j=1) const

Float_t	GetOffset (TString name) const

Int_t	GetOffsetFlag (Int_t j=1) const

Int_t	GetOffsetFlag (TString name) const

Int_t	GetSlotIndex (TString name, Int_t opt=0) const

TString	GetSlotName (Int_t j=1) const

void	IncreaseEdgeValue (Int_t j=1)

void	IncreaseEdgeValue (TString name)

virtual void	List (Int_t j=0) const

virtual void	List (TString name) const

virtual void	Load (NcAttrib &a, Int_t j=0)

virtual void	Load (NcAttrib &a, TString name)

void	Lock (Int_t j=1)

void	Lock (TString name)

void	ResetGain (Int_t j=1)

void	ResetGain (TString name)

void	ResetOffset (Int_t j=1)

void	ResetOffset (TString name)

void	SetAlive (Int_t j=1)

void	SetAlive (TString name)

void	SetCalFunction (TF1 *f, Int_t j=1)

void	SetCalFunction (TF1 *f, TString name)

void	SetDead (Int_t j=1)

void	SetDead (TString name)

void	SetDecalFunction (TF1 *f, Int_t j=1)

void	SetDecalFunction (TF1 *f, TString name)

void	SetEdgeOff (Int_t j=1)

void	SetEdgeOff (TString name)

void	SetEdgeOn (Int_t j=1)

void	SetEdgeOn (TString name)

void	SetEdgeValue (Int_t val, Int_t j=1)

void	SetEdgeValue (Int_t val, TString name)

void	SetGain (Double_t gain, Int_t j=1)

void	SetGain (Double_t gain, TString name)

void	SetOffset (Double_t off, Int_t j=1)

void	SetOffset (Double_t off, TString name)

void	SetSlotName (TString s, Int_t j=1)

void	Unlock (Int_t j=1)

void	Unlock (TString name)

Protected Member Functions
void	SetCalFlags (Int_t gf, Int_t of, Int_t j)

Protected Attributes
TArrayI *	fCalflags

TObjArray *	fCalfuncs

TObjArray *	fDecalfuncs

TArrayF *	fGains

TObjArray *	fNames

TArrayF *	fOffsets

Constructor & Destructor Documentation

◆ NcAttrib() [1/2]

NcAttrib::NcAttrib ( )

// Creation of an NcAttrib object and initialisation of parameters.
// Several values of the same type (e.g. gain) can be stored in different slots.
// If needed, the storage for values will be expanded automatically
// when entering values.

Definition at line 69 of file NcAttrib.cxx.

◆ ~NcAttrib()

NcAttrib::~NcAttrib ( )

virtual

// Destructor to delete dynamically allocated memory.

Definition at line 88 of file NcAttrib.cxx.

◆ NcAttrib() [2/2]

NcAttrib::NcAttrib ( const NcAttrib & a )

// Copy constructor.

Definition at line 128 of file NcAttrib.cxx.

Member Function Documentation

◆ AddNamedSlot()

void NcAttrib::AddNamedSlot ( TString s )

// Add a new slot with the specified name.

// In case a slot with the specified name already exists, no action is taken.

Definition at line 1492 of file NcAttrib.cxx.

◆ DecreaseEdgeValue() [1/2]

void NcAttrib::DecreaseEdgeValue ( Int_t j = 1 )

// Decrease the edge value by 1 for the j-th (default j=1) attribute slot.
// Note : The first attribute slot is at j=1.
// In case the value of the index j exceeds the maximum number of reserved
// slots for the flags, the number of reserved slots for the flags
// is increased automatically.
// The value stored is : 10000*edge + 1000*lock + 100*dead + 10*gainflag + offsetflag.

Definition at line 1286 of file NcAttrib.cxx.

◆ DecreaseEdgeValue() [2/2]

void NcAttrib::DecreaseEdgeValue ( TString name )

// Decrease the edge value by 1 for the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 1309 of file NcAttrib.cxx.

◆ DeleteCalibrations()

void NcAttrib::DeleteCalibrations ( Int_t mode = 0 )

// User selected delete of all gains and/or offsets.
// mode = 0 : All attributes (names,gains,offsets,(de)calfuncs, edge and dead values) are deleted.
//        1 : Only the gains are deleted.
//        2 : Only the offsets are deleted.
//        3 : Gains, offsets and (de)calfuncs are deleted, but names, edge and dead values are kept.
//        4 : Only the calib. functions are deleted.
//        5 : Only the de-calib. functions are deleted.
//        6 : Only the calib. and de-calib. functions are deleted.
//
// The default when invoking DeleteCalibrations() corresponds to mode=0.

Definition at line 786 of file NcAttrib.cxx.

◆ GetCalFunction() [1/2]

TF1 * NcAttrib::GetCalFunction ( Int_t j = 1 ) const

// Provide pointer to the calib. function of the j-th (default j=1) slot.

// Note : The first attribute slot is at j=1.

Definition at line 1895 of file NcAttrib.cxx.

◆ GetCalFunction() [2/2]

TF1 * NcAttrib::GetCalFunction ( TString name ) const

// Provide pointer to the calib. function of the name-specified slot.

// In case no match is found, zero is returned.

Definition at line 1909 of file NcAttrib.cxx.

◆ GetCalWord() [1/2]

Int_t NcAttrib::GetCalWord ( Int_t j = 1 ) const

// Provide calib. word of the j-th (default j=1) attribute slot.
// The word value stored is : 10000*edge + 1000*lock + 100*dead + 10*gainflag + offsetflag.
//
// Note : The first attribute slot is at j=1.
// In case j is invalid, 0 is returned.

Definition at line 529 of file NcAttrib.cxx.

◆ GetCalWord() [2/2]

Int_t NcAttrib::GetCalWord ( TString name ) const

// Provide calib. word of the name-specified attribute slot.
// The word value stored is : 10000*edge + 1000*lock + 100*dead + 10*gainflag + offsetflag.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 555 of file NcAttrib.cxx.

◆ GetDeadValue() [1/2]

Int_t NcAttrib::GetDeadValue ( Int_t j = 1 ) const

// Provide dead value of the j-th (default j=1) attribute slot.
// Note : The first attribute slot is at j=1.
// In case j is invalid, 0 is returned.

Definition at line 1375 of file NcAttrib.cxx.

◆ GetDeadValue() [2/2]

Int_t NcAttrib::GetDeadValue ( TString name ) const

// Provide dead value of the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 1404 of file NcAttrib.cxx.

◆ GetDecalFunction() [1/2]

TF1 * NcAttrib::GetDecalFunction ( Int_t j = 1 ) const

// Provide pointer to the de-calib. function of the j-th (default j=1) slot.

// Note : The first attribute slot is at j=1.

Definition at line 1996 of file NcAttrib.cxx.

◆ GetDecalFunction() [2/2]

TF1 * NcAttrib::GetDecalFunction ( TString name ) const

// Provide pointer to the de-calib. function of the name-specified slot.

// In case no match is found, zero is returned.

Definition at line 2010 of file NcAttrib.cxx.

◆ GetEdgeValue() [1/2]

Int_t NcAttrib::GetEdgeValue ( Int_t j = 1 ) const

// Provide edge value of the j-th (default j=1) attribute slot.
// Note : The first attribute slot is at j=1.
// In case j is invalid, 0 is returned.

Definition at line 1327 of file NcAttrib.cxx.

◆ GetEdgeValue() [2/2]

Int_t NcAttrib::GetEdgeValue ( TString name ) const

// Provide edge value of the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 1355 of file NcAttrib.cxx.

◆ GetGain() [1/2]

Float_t NcAttrib::GetGain ( Int_t j = 1 ) const

// Provide gain value of the j-th (default j=1) attribute slot.
// The first attribute slot is at j=1.
// In case no gain value was set or the argument j is invalid, 0 is returned.
// Note : Use GetGainFlag(j) to check whether this gain was set or not.

Definition at line 576 of file NcAttrib.cxx.

◆ GetGain() [2/2]

Float_t NcAttrib::GetGain ( TString name ) const

// Provide gain value of the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 604 of file NcAttrib.cxx.

◆ GetGainFlag() [1/2]

Int_t NcAttrib::GetGainFlag ( Int_t j = 1 ) const

// Provide gain flag of the j-th (default j=1) attribute slot.
//
// flag = 1 : Gain was set
//        0 : Gain was not set
//
// Note : The first attribute slot is at j=1.
// In case j is invalid, 0 is returned.

Definition at line 417 of file NcAttrib.cxx.

◆ GetGainFlag() [2/2]

Int_t NcAttrib::GetGainFlag ( TString name ) const

// Provide gain flag of the name-specified attribute slot.
//
// flag = 1 : Gain was set
//        0 : Gain was not set
//
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 449 of file NcAttrib.cxx.

◆ GetLockValue() [1/2]

Int_t NcAttrib::GetLockValue ( Int_t j = 1 ) const

// Provide lock value of the j-th (default j=1) attribute slot.
// Note : The first attribute slot is at j=1.
// In case j is invalid, 0 is returned.

Definition at line 1424 of file NcAttrib.cxx.

◆ GetLockValue() [2/2]

Int_t NcAttrib::GetLockValue ( TString name ) const

// Provide lock value of the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 1453 of file NcAttrib.cxx.

◆ GetNcalflags()

Int_t NcAttrib::GetNcalflags ( ) const

// Provide the number of specified calib. flags for this attribute.

Definition at line 229 of file NcAttrib.cxx.

◆ GetNcalfuncs()

Int_t NcAttrib::GetNcalfuncs ( ) const

// Provide the number of specified calib. functions for this attribute.

Definition at line 1859 of file NcAttrib.cxx.

◆ GetNdecalfuncs()

Int_t NcAttrib::GetNdecalfuncs ( ) const

// Provide the number of specified de-calib. functions for this attribute.

Definition at line 1877 of file NcAttrib.cxx.

◆ GetNgains()

Int_t NcAttrib::GetNgains ( ) const

// Provide the number of specified gains for this attribute.

Definition at line 191 of file NcAttrib.cxx.

◆ GetNnames()

Int_t NcAttrib::GetNnames ( ) const

// Provide the maximum number of specified names for this attribute.

Definition at line 248 of file NcAttrib.cxx.

◆ GetNoffsets()

Int_t NcAttrib::GetNoffsets ( ) const

// Provide the number of specified offsets for this attribute.

Definition at line 210 of file NcAttrib.cxx.

◆ GetNslots()

Int_t NcAttrib::GetNslots ( ) const

virtual

// Provide the number of existing slots.

Reimplemented in NcSignal.

Definition at line 1473 of file NcAttrib.cxx.

◆ GetOffset() [1/2]

Float_t NcAttrib::GetOffset ( Int_t j = 1 ) const

// Provide offset value of the j-th (default j=1) attribute slot.
// The first attribute slot at j=1.
// In case no offset value was set or the argument j is invalid, 0 is returned.
// Note : Use GetOffsetFlag(j) to check whether this offset was set or not.

Definition at line 624 of file NcAttrib.cxx.

◆ GetOffset() [2/2]

Float_t NcAttrib::GetOffset ( TString name ) const

// Provide offset value of the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 652 of file NcAttrib.cxx.

◆ GetOffsetFlag() [1/2]

Int_t NcAttrib::GetOffsetFlag ( Int_t j = 1 ) const

// Provide offset flag of the j-th (default j=1) attribute slot.
//
// flag = 1 : Offset was set
//        0 : Offset was not set
//
// Note : The first attribute slot is at j=1.
// In case j is invalid, 0 is returned.

Definition at line 473 of file NcAttrib.cxx.

◆ GetOffsetFlag() [2/2]

Int_t NcAttrib::GetOffsetFlag ( TString name ) const

// Provide ofset flag of the name-specified attribute slot.
//
// flag = 1 : Offset was set
//        0 : Offset was not set
//
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 505 of file NcAttrib.cxx.

◆ GetSlotIndex()

Int_t NcAttrib::GetSlotIndex	(	TString	name,
		Int_t	opt = 0 ) const

// Provide the slot index for the matching name.
//
// opt = 0 --> The specified name has to match exactly the slotname
//       1 --> The specified name string has to be contained in the slotname
//
// The default is opt=0.
//
// If no matching name is found, 0 is returned.
// Note : The first attribute slot is at j=1.

Definition at line 1572 of file NcAttrib.cxx.

◆ GetSlotName()

TString NcAttrib::GetSlotName ( Int_t j = 1 ) const

// Provide the user defined name for the j-th (default j=1) slot.

// Note : The first attribute slot is at j=1.

Definition at line 1545 of file NcAttrib.cxx.

◆ IncreaseEdgeValue() [1/2]

void NcAttrib::IncreaseEdgeValue ( Int_t j = 1 )

// Increase the edge value by 1 for the j-th (default j=1) attribute slot.
// Note : The first attribute slot is at j=1.
// In case the value of the index j exceeds the maximum number of reserved
// slots for the flags, the number of reserved slots for the flags
// is increased automatically.
// The value stored is : 10000*edge + 1000*lock + 100*dead + 10*gainflag + offsetflag.

Definition at line 1245 of file NcAttrib.cxx.

◆ IncreaseEdgeValue() [2/2]

void NcAttrib::IncreaseEdgeValue ( TString name )

// Increase the edge value by 1 for the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 1268 of file NcAttrib.cxx.

◆ List() [1/2]

void NcAttrib::List ( Int_t j = 0 ) const

virtual

// Provide attribute information for the j-th slot.
// The first slot is at j=1.
// In case j=0 (default) the data of all slots will be listed.

Reimplemented in NcSignal.

Definition at line 1608 of file NcAttrib.cxx.

◆ List() [2/2]

void NcAttrib::List ( TString name ) const

virtual

// Provide attribute information for the name-specified slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Reimplemented in NcSignal.

Definition at line 1666 of file NcAttrib.cxx.

◆ Load() [1/2]

void NcAttrib::Load	(	NcAttrib &	a,
		Int_t	j = 0 )

virtual

// Load attributes of the j-th slot of the input NcAttrib into this NcAttrib object.
//
// Note : if j=0, then all attributes of all slots are loaded
//
// The default is j=0.

Definition at line 1684 of file NcAttrib.cxx.

◆ Load() [2/2]

void NcAttrib::Load	(	NcAttrib &	a,
		TString	name )

virtual

// Load attributes of the name-specified slot of the input NcAttrib into
// this NcAttrib object.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 1840 of file NcAttrib.cxx.

◆ Lock() [1/2]

void NcAttrib::Lock ( Int_t j = 1 )

// Set the lock flag to 1 for the j-th (default j=1) attribute slot.
// Note : The first attribute slot is at j=1.
// In case the value of the index j exceeds the maximum number of reserved
// slots for the flags, the number of reserved slots for the flags
// is increased automatically.
// The value stored is : 10000*edge + 1000*lock + 100*dead + 10*gainflag + offsetflag.

Definition at line 995 of file NcAttrib.cxx.

◆ Lock() [2/2]

void NcAttrib::Lock ( TString name )

// Set the lock flag to 1 for the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 1037 of file NcAttrib.cxx.

◆ ResetGain() [1/2]

void NcAttrib::ResetGain ( Int_t j = 1 )

// Reset the gain value of the j-th (default j=1) attribute slot.
// Notes : The first attribute slot is at j=1.
//         j=0 ==> All gain values will be reset.

Definition at line 672 of file NcAttrib.cxx.

◆ ResetGain() [2/2]

void NcAttrib::ResetGain ( TString name )

// Reset the gain value of the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 711 of file NcAttrib.cxx.

◆ ResetOffset() [1/2]

void NcAttrib::ResetOffset ( Int_t j = 1 )

// Reset the offset value of the j-th (default j=1) attribute slot.
// Notes : The first attribute slot is at j=1.
//         j=0 ==> All offset values will be reset.

Definition at line 729 of file NcAttrib.cxx.

◆ ResetOffset() [2/2]

void NcAttrib::ResetOffset ( TString name )

// Reset the offset value of the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 768 of file NcAttrib.cxx.

◆ SetAlive() [1/2]

void NcAttrib::SetAlive ( Int_t j = 1 )

// Set the dead flag to 0 for the j-th (default j=1) attribute slot.
// Note : The first attribute slot is at j=1.
// In case the value of the index j exceeds the maximum number of reserved
// slots for the flags, no action is taken since by default the dead flag is 0.
// The value stored is : 10000*edge + 1000*lock + 100*dead + 10*gainflag + offsetflag.

Definition at line 946 of file NcAttrib.cxx.

◆ SetAlive() [2/2]

void NcAttrib::SetAlive ( TString name )

// Set the dead flag to 0 for the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 977 of file NcAttrib.cxx.

◆ SetCalFlags()

void NcAttrib::SetCalFlags	(	Int_t	gf,
		Int_t	of,
		Int_t	j )

protected

// Store calibration flags of the j-th (default j=1) attribute slot.
// Note : The first attribute slot is at j=1.
// In case the value of the index j exceeds the maximum number of reserved
// slots for the calib. flags, the number of reserved slots for the calib.
// flags is increased automatically.
// The value stored is : 10000*edge +1000*lock + 100*dead + 10*gainflag + offsetflag.

Definition at line 377 of file NcAttrib.cxx.

◆ SetCalFunction() [1/2]

void NcAttrib::SetCalFunction	(	TF1 *	f,
		Int_t	j = 1 )

// Set the calib. function of the j-th (default j=1) slot.
// Note : The first attribute slot is at j=1.
//
// In case the value of the index j exceeds the maximum number of reserved
// positions for the functions, the number of reserved positions for the functions
// is increased automatically.
//
// In case the function pointer argument has the same value as the current function
// pointer value, no action is taken since the user has already modified the actual
// function.
//
// In case the function pointer argument is zero, the current function
// is deleted and the pointer set to zero.
//
// In all other cases the current function is deleted and a new
// copy of the input function is created which becomes the current function.

Definition at line 1924 of file NcAttrib.cxx.

◆ SetCalFunction() [2/2]

void NcAttrib::SetCalFunction	(	TF1 *	f,
		TString	name )

// Set the calib. function of the name-specified slot.
//
// In case the function pointer argument has the same value as the current function
// pointer value, no action is taken since the user has already modified the actual
// function.
//
// In case the function pointer argument is zero, the current function
// is deleted and the pointer set to zero.
//
// In all other cases the current function is deleted and a new
// copy of the input function is created which becomes the current function.

Definition at line 1974 of file NcAttrib.cxx.

◆ SetDead() [1/2]

void NcAttrib::SetDead ( Int_t j = 1 )

// Set the dead flag to 1 for the j-th (default j=1) attribute slot.
// Note : The first attribute slot is at j=1.
// In case the value of the index j exceeds the maximum number of reserved
// slots for the flags, the number of reserved slots for the flags
// is increased automatically.
// The value stored is : 10000*edge + 1000*lock + 100*dead + 10*gainflag + offsetflag.

Definition at line 886 of file NcAttrib.cxx.

◆ SetDead() [2/2]

void NcAttrib::SetDead ( TString name )

// Set the dead flag to 1 for the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 928 of file NcAttrib.cxx.

◆ SetDecalFunction() [1/2]

void NcAttrib::SetDecalFunction	(	TF1 *	f,
		Int_t	j = 1 )

// Set the de-calib. function of the j-th (default j=1) slot.
// Note : The first attribute slot is at j=1.
//
// In case the value of the index j exceeds the maximum number of reserved
// positions for the functions, the number of reserved positions for the functions
// is increased automatically.
//
// In case the function pointer argument has the same value as the current function
// pointer value, no action is taken since the user has already modified the actual
// function.
//
// In case the function pointer argument is zero, the current function
// is deleted and the pointer set to zero.
//
// In all other cases the current function is deleted and a new
// copy of the input function is created which becomes the current function.

Definition at line 2025 of file NcAttrib.cxx.

◆ SetDecalFunction() [2/2]

void NcAttrib::SetDecalFunction	(	TF1 *	f,
		TString	name )

// Set the de-calib. function of the name-specified slot.
//
// In case the function pointer argument has the same value as the current function
// pointer value, no action is taken since the user has already modified the actual
// function.
//
// In case the function pointer argument is zero, the current function
// is deleted and the pointer set to zero.
//
// In all other cases the current function is deleted and a new
// copy of the input function is created which becomes the current function.

Definition at line 2075 of file NcAttrib.cxx.

◆ SetEdgeOff() [1/2]

void NcAttrib::SetEdgeOff ( Int_t j = 1 )

// Set the edge value to 0 for the j-th (default j=1) attribute slot.
// Note : The first attribute slot is at j=1.
// In case the value of the index j exceeds the maximum number of reserved
// slots for the flags, no action is taken since by default the edge flag is 0.
// The value stored is : 10000*edge + 1000*lock + 100*dead + 10*gainflag + offsetflag.

Definition at line 1144 of file NcAttrib.cxx.

◆ SetEdgeOff() [2/2]

void NcAttrib::SetEdgeOff ( TString name )

// Set the edge value to 0 for the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 1167 of file NcAttrib.cxx.

◆ SetEdgeOn() [1/2]

void NcAttrib::SetEdgeOn ( Int_t j = 1 )

// Set the edge value to 1 for the j-th (default j=1) attribute slot.
// Note : The first attribute slot is at j=1.
// In case the value of the index j exceeds the maximum number of reserved
// slots for the flags, the number of reserved slots for the flags
// is increased automatically.
// The value stored is : 10000*edge + 1000*lock + 100*dead + 10*gainflag + offsetflag.

Definition at line 1104 of file NcAttrib.cxx.

◆ SetEdgeOn() [2/2]

void NcAttrib::SetEdgeOn ( TString name )

// Set the edge value to 1 for the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 1126 of file NcAttrib.cxx.

◆ SetEdgeValue() [1/2]

void NcAttrib::SetEdgeValue	(	Int_t	val,
		Int_t	j = 1 )

// Set the edge value to "val" for the j-th (default j=1) attribute slot.
// Note : The first attribute slot is at j=1.
// In case the value of the index j exceeds the maximum number of reserved
// slots for the flags, the number of reserved slots for the flags
// is increased automatically.
// The value stored is : 10000*edge + 1000*lock + 100*dead + 10*gainflag + offsetflag.

Definition at line 1185 of file NcAttrib.cxx.

◆ SetEdgeValue() [2/2]

void NcAttrib::SetEdgeValue	(	Int_t	val,
		TString	name )

// Set the edge value to "val" for the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 1227 of file NcAttrib.cxx.

◆ SetGain() [1/2]

void NcAttrib::SetGain	(	Double_t	gain,
		Int_t	j = 1 )

// Store gain value of the j-th (default j=1) attribute slot.
// Note : The first attribute slot is at j=1.
// In case the value of the index j exceeds the maximum number of reserved
// slots for gain values, the number of reserved slots for the gain
// values is increased automatically.

Definition at line 267 of file NcAttrib.cxx.

◆ SetGain() [2/2]

void NcAttrib::SetGain	(	Double_t	gain,
		TString	name )

// Store gain value of the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 304 of file NcAttrib.cxx.

◆ SetOffset() [1/2]

void NcAttrib::SetOffset	(	Double_t	off,
		Int_t	j = 1 )

// Store offset value of the j-th (default j=1) attribute slot.
// Note : The first attribute slot is at j=1.
// In case the value of the index j exceeds the maximum number of reserved
// slots for offset values, the number of reserved slots for the offset
// values is increased automatically.

Definition at line 322 of file NcAttrib.cxx.

◆ SetOffset() [2/2]

void NcAttrib::SetOffset	(	Double_t	off,
		TString	name )

// Store offset value of the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 359 of file NcAttrib.cxx.

◆ SetSlotName()

void NcAttrib::SetSlotName	(	TString	s,
		Int_t	j = 1 )

// Set a user defined name for the j-th (default j=1) slot.
// Note : The first attribute slot is at j=1.
// In case the value of the index j exceeds the maximum number of reserved
// slots for the names, the number of reserved slots for the names
// is increased automatically to the corresponding value.

Definition at line 1507 of file NcAttrib.cxx.

◆ Unlock() [1/2]

void NcAttrib::Unlock ( Int_t j = 1 )

// Set the lock flag to 0 for the j-th (default j=1) attribute slot.
// Note : The first attribute slot is at j=1.
// In case the value of the index j exceeds the maximum number of reserved
// slots for the flags, no action is taken since by default the dead flag is 0.
// The value stored is : 10000*edge + 1000*lock + 100*dead + 10*gainflag + offsetflag.

Definition at line 1055 of file NcAttrib.cxx.

◆ Unlock() [2/2]

void NcAttrib::Unlock ( TString name )

// Set the lock flag to 0 for the name-specified attribute slot.
//
// This procedure involves a slot-index search based on the specified name
// at each invokation. This may become slow in case many slots have been
// defined and/or when this procedure is invoked many times.
// In such cases it is preferable to use indexed addressing in the user code
// either directly or via a few invokations of GetSlotIndex().

Definition at line 1086 of file NcAttrib.cxx.

Member Data Documentation

◆ fCalflags

TArrayI* NcAttrib::fCalflags

protected

Definition at line 92 of file NcAttrib.h.

◆ fCalfuncs

TObjArray* NcAttrib::fCalfuncs

protected

Definition at line 94 of file NcAttrib.h.

◆ fDecalfuncs

TObjArray* NcAttrib::fDecalfuncs

protected

Definition at line 95 of file NcAttrib.h.

◆ fGains

TArrayF* NcAttrib::fGains

protected

Definition at line 90 of file NcAttrib.h.

◆ fNames

TObjArray* NcAttrib::fNames

protected

Definition at line 93 of file NcAttrib.h.

◆ fOffsets

TArrayF* NcAttrib::fOffsets

protected

Definition at line 91 of file NcAttrib.h.

The documentation for this class was generated from the following files:

ncfspack/source/NcAttrib.h
ncfspack/source/NcAttrib.cxx

Detailed Description

Public Member Functions

Protected Member Functions

Protected Attributes

Constructor & Destructor Documentation

◆ NcAttrib() [1/2]

◆ ~NcAttrib()

◆ NcAttrib() [2/2]

Member Function Documentation

◆ AddNamedSlot()

◆ DecreaseEdgeValue() [1/2]

◆ DecreaseEdgeValue() [2/2]

◆ DeleteCalibrations()

◆ GetCalFunction() [1/2]

◆ GetCalFunction() [2/2]

◆ GetCalWord() [1/2]

◆ GetCalWord() [2/2]

◆ GetDeadValue() [1/2]

◆ GetDeadValue() [2/2]

◆ GetDecalFunction() [1/2]

◆ GetDecalFunction() [2/2]

◆ GetEdgeValue() [1/2]

◆ GetEdgeValue() [2/2]

◆ GetGain() [1/2]

◆ GetGain() [2/2]

◆ GetGainFlag() [1/2]

◆ GetGainFlag() [2/2]

◆ GetLockValue() [1/2]

◆ GetLockValue() [2/2]

◆ GetNcalflags()

◆ GetNcalfuncs()

◆ GetNdecalfuncs()

◆ GetNgains()

◆ GetNnames()

◆ GetNoffsets()

◆ GetNslots()

◆ GetOffset() [1/2]

◆ GetOffset() [2/2]

◆ GetOffsetFlag() [1/2]

◆ GetOffsetFlag() [2/2]

◆ GetSlotIndex()

◆ GetSlotName()

◆ IncreaseEdgeValue() [1/2]

◆ IncreaseEdgeValue() [2/2]

◆ List() [1/2]

◆ List() [2/2]

◆ Load() [1/2]

◆ Load() [2/2]

◆ Lock() [1/2]

◆ Lock() [2/2]

◆ ResetGain() [1/2]

◆ ResetGain() [2/2]

◆ ResetOffset() [1/2]

◆ ResetOffset() [2/2]

◆ SetAlive() [1/2]

◆ SetAlive() [2/2]

◆ SetCalFlags()

◆ SetCalFunction() [1/2]

◆ SetCalFunction() [2/2]

◆ SetDead() [1/2]

◆ SetDead() [2/2]

◆ SetDecalFunction() [1/2]

◆ SetDecalFunction() [2/2]

◆ SetEdgeOff() [1/2]

◆ SetEdgeOff() [2/2]

◆ SetEdgeOn() [1/2]

◆ SetEdgeOn() [2/2]

◆ SetEdgeValue() [1/2]

◆ SetEdgeValue() [2/2]

◆ SetGain() [1/2]

◆ SetGain() [2/2]

◆ SetOffset() [1/2]

◆ SetOffset() [2/2]

◆ SetSlotName()

◆ Unlock() [1/2]

◆ Unlock() [2/2]

Member Data Documentation

◆ fCalflags

◆ fCalfuncs

◆ fDecalfuncs
