NcDetectorUnit Class Reference

Handling of a collection of generic devices. More...

#include "NcDetectorUnit.h"

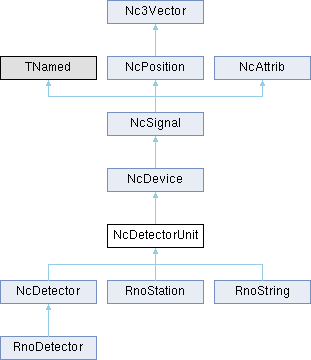

Inheritance diagram for NcDetectorUnit:

Detailed Description

Handling of a collection of generic devices.

---

Copyright(c) 2021 NCFS/IIHE, All Rights Reserved.                           *
                                                                            *
Authors: The Netherlands Center for Fundamental Studies (NCFS).             *
         The Inter-university Institute for High Energies (IIHE).           *
                   Website : http://www.iihe.ac.be                          *
           Contact : Nick van Eijndhoven (nickve.nl@gmail.com)              *
                                                                            *
Contributors are mentioned in the code where appropriate.                   *
                                                                            *
No part of this software may be used, copied, modified or distributed       *
by any means nor transmitted or translated into machine language for        *
commercial purposes without written permission by the IIHE representative.  *
Permission to use the software strictly for non-commercial purposes         *
is hereby granted without fee, provided that the above copyright notice     *
appears in all copies and that both the copyright notice and this           *
permission notice appear in the supporting documentation.                   *
This software is provided "as is" without express or implied warranty.      *
The authors make no claims that this software is free of error, or is       *
consistent with any particular standard of merchantability, or that it      *
will meet your requirements for any particular application, other than      *
indicated in the corresponding documentation.                               *
This software should not be relied on for solving a problem whose           *
incorrect solution could result in injury to a person or loss of property.  *
If you do use this software in such a manner, it is at your own risk.       *
The authors disclaim all liability for direct or consequential damage       *
resulting from your use of this software.                                   *

---

// Class NcDetectorUnit
// Handling of a collection of generic devices.
//
// This class provides a facility to build up a hierarchical structure
// to store detector signals.
// Detector signals are represented by NcSignal objects that belong to
// NcDevice objects. An Ncsignal object that is related to an NcDevice
// is called a "hit" and can be stored in the NcDevice via the
// generic AddHit memberfunction.
// A group of NcDevice objects may be combined in an NcDetectorUnit object
// to represent a certain sub-detector system, and several NcDetectorUnit
// objects may finally be combined into an NcDetector object to represent
// the complete experimental setup.
// Combination of these various detector elements is performed by the
// generic AddDevice memberfunction.
//
// To provide maximal flexibility to the user, two modes can be used for the storage
// of devices which can be selected by means of the memberfunction SetDevCopy().
//
// a) SetDevCopy(0).
//    Only the pointers of the 'added' devices are stored.
//    This mode is typically used by making studies based on a fixed set
//    of devices which stays under user control or is kept on an external
//    file/tree.
//    In this way the NcDetectorUnit just represents a 'logical structure' for the
//    analysis of the various detector components and the recorded signals.
//
//    Note :
//    Modifications made to the original devices also affect the device
//    objects which are stored in the NcDetectorUnit structure.
//
// b) SetDevCopy(1) (which is the default).
//    Of every 'added' device a private copy will be made of which the pointer
//    will be stored.
//    In this way the NcDetectorUnit represents an entity on its own and modifications
//    made to the original devices do not affect the NcDevice (or derived) objects
//    which are stored in the NcDetectorUnit.
//    This mode will allow 'adding' many different devices into an NcDetectorUnit by
//    creating only one device instance in the main programme and using the
//    Reset() and parameter setting memberfunctions of the object representing the device.
//
//    Note :
//    The copy is made using the Clone() memberfunction.
//    All devices (i.e. classes derived from TObject) have the default TObject::Clone()
//    memberfunction.
//    However, devices generally contain an internal (signal) data structure
//    which may include pointers to other objects. Therefore it is recommended to provide
//    for all devices a specific copy constructor and override the default Clone()
//    memberfunction using this copy constructor.
//    Examples for this may be seen from NcCalorimeter, NcSignal and NcDevice.
//
// See also the documentation provided for the memberfunction SetOwner().
//
// Please refer to the documentation of NcDetector for further details.
//
//--- Author: Nick van Eijndhoven, IIHE-VUB, Brussel, June 22, 2021  08:40Z
//- Modified: Nick van Eijndhoven, IIHE-VUB, Brussel, July 14, 2021  12:56Z

Definition at line 16 of file NcDetectorUnit.h.

Public Member Functions
	NcDetectorUnit (const char *name="", const char *title="")
	NcDetectorUnit (const NcDetectorUnit &q)
virtual	~NcDetectorUnit ()
void	AddDevice (NcDevice &d)
void	AddDevice (NcDevice *d)
virtual TObject *	Clone (const char *name="") const
virtual void	Data (TString f="car", TString u="rad")
virtual void	Data (TString f="car", TString u="rad") const
void	DisplayHits (TString classname, Bool_t follow, Bool_t inc, Int_t idx=1, Float_t scale=-1, Int_t dp=0, Int_t mode=1, Int_t mcol=4)
void	DisplayHits (TString classname, Bool_t follow, Bool_t inc, TString name, Float_t scale=-1, Int_t dp=0, Int_t mode=1, Int_t mcol=4)
NcDetectorUnit *	GetDetectorUnit (TString name, Bool_t follow)
Int_t	GetDevCopy () const
NcDevice *	GetDevice (Int_t i) const
NcDevice *	GetDevice (TString name, Bool_t follow)
TObjArray *	GetDevices (TString classname, Bool_t follow, TObjArray *devices=0)
TObjArray *	GetHitsDevices (TString classname, Bool_t follow, Bool_t inc, TObjArray *hits=0, TString name="none", Int_t mode=0, Int_t opt=0)
NcDetectorUnit *	GetIdDetectorUnit (Int_t id, Bool_t follow, TObjArray *devs=0)
NcDetectorUnit *	GetIdDetectorUnit (Int_t id, TString classname, Bool_t follow)
NcDevice *	GetIdDevice (Int_t id, Bool_t follow, TObjArray *devs=0)
NcDevice *	GetIdDevice (Int_t id, TString classname, Bool_t follow)
NcSignal *	GetIdHit (Int_t id, TString classname, Bool_t follow, Bool_t inc)
Int_t	GetNdevices (Bool_t follow)
Int_t	GetNdevices (TString classname, Bool_t follow, TObjArray *hits=0)
Int_t	GetNhitsDevices (TString classname, Bool_t follow, Bool_t inc)
void	RemoveDevice (NcDevice *d)
virtual void	Reset (Int_t mode=0)
void	SetDevCopy (Int_t j)
virtual void	SetOwner (Bool_t own=kTRUE)
void	ShowDevices (Int_t mode=1, Bool_t header=kTRUE)
void	ShowDevices (TString classname, Int_t mode=1, Bool_t header=kTRUE)
void	ShowHits (TString classname, Bool_t follow, Bool_t inc, Int_t mode=1, TString f="car", TString u="rad")
TObjArray *	SortDevices (TObjArray *hits, Int_t idx=1, Int_t mode=-1, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
TObjArray *	SortDevices (TObjArray *hits, TString name, Int_t mode=-1, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
TObjArray *	SortDevices (TString classname, Bool_t follow, Bool_t inc, Int_t idx=1, Int_t mode=-1, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
TObjArray *	SortDevices (TString classname, Bool_t follow, Bool_t inc, TString name, Int_t mode=-1, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
TObjArray *	SortHits (Int_t idx=1, Int_t mode=-1, TObjArray *hits=0, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
TObjArray *	SortHits (TString classname, Bool_t follow, Bool_t inc, Int_t idx=1, Int_t mode=-1, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
TObjArray *	SortHits (TString classname, Bool_t follow, Bool_t inc, TString name, Int_t mode=-1, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
TObjArray *	SortHits (TString name, Int_t mode=-1, TObjArray *hits=0, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
Public Member Functions inherited from NcDevice
	NcDevice (const char *name="", const char *title="")
	NcDevice (const NcDevice &dev)
virtual	~NcDevice ()
void	AddHit (NcSignal &s)
void	AddHit (NcSignal *s)
void	DisplayHits (Int_t idx=1, Float_t scale=-1, TObjArray *hits=0, Int_t dp=0, Int_t mode=1, Int_t mcol=4)
void	DisplayHits (TString name, Float_t scale=-1, TObjArray *hits=0, Int_t dp=0, Int_t mode=1, Int_t mcol=4)
NcPosition	GetCOG (TObjArray *hits, Int_t pos=0, TString slotname="none", Int_t mode=0) const
Double_t	GetCVAL (TObjArray *hits, TString obsname, TString weightname="none", Int_t mode=0, Int_t type=1) const
void	GetExtremes (Float_t &vmin, Float_t &vmax, Int_t idx=1, TObjArray *hits=0, Int_t mode=1, Int_t deadcheck=1) const
void	GetExtremes (Float_t &vmin, Float_t &vmax, TString name, TObjArray *hits=0, Int_t mode=1, Int_t deadcheck=1) const
NcSignal *	GetHit (Int_t j) const
NcSignal *	GetHit (TString name, Int_t mode=0, Int_t opt=0) const
Int_t	GetHitCopy () const
Nc3Vector	GetHitPath (TObjArray *hits, Int_t pos=0) const
TObjArray *	GetHits ()
void	GetHits (TObjArray &selected, TString name, Int_t mode=0, Int_t opt=0, TObjArray *hits=0) const
NcSignal *	GetIdHit (Int_t id) const
Int_t	GetNhits () const
Int_t	GetNhits (TString name, Int_t mode=0, Int_t opt=0) const
Int_t	GetStatus () const
void	RemoveHit (NcSignal &s)
void	RemoveHit (NcSignal *s)
void	RemoveHits ()
void	SetHitCopy (Int_t j)
void	SetStatus (Int_t word)
void	ShowHit (Int_t j=0, TString f="car", TString u="rad") const
Double_t	SlideWindow (TObjArray *hits, Double_t thres, Double_t swin, TString sname, Int_t smode=0, TString wname="none", Int_t wmode=0, Int_t *i1=0, Int_t *i2=0) const
TObjArray *	SortHits (Int_t idx=1, Int_t mode=-1, TObjArray *hits=0, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
TObjArray *	SortHits (TString name, Int_t mode=-1, TObjArray *hits=0, Int_t mcal=1, Int_t deadcheck=1, TObjArray *ordered=0)
Double_t	SumSignals (Int_t idx, Int_t mode=1, TObjArray *hits=0)
Double_t	SumSignals (TString name, Int_t mode=1, TObjArray *hits=0)
Public Member Functions inherited from NcSignal
	NcSignal (const char *name="", const char *title="")
	NcSignal (const NcSignal &s)
virtual	~NcSignal ()
void	AddLink (TObject *obj, Int_t j=1)
void	AddLink (TObject *obj, TString name)
virtual void	AddSignal (Double_t sig, Int_t j=1)
virtual void	AddSignal (Double_t sig, TString name)
void	AddTrack (NcTrack &t, Int_t mode=1)
void	DeleteSample (Int_t j=1)
void	DeleteSample (TString name)
virtual void	DeleteSignals (Int_t mode=0)
void	DeleteWaveform (Int_t j=1)
void	DeleteWaveform (TString name)
NcSample *	DisplaySample (Int_t j=1, Int_t i=1) const
NcSample *	DisplaySample (TString name, Int_t i=1) const
NcDevice *	GetDevice () const
Int_t	GetErrorFlag (Int_t j=1) const
Int_t	GetErrorFlag (TString name) const
NcTrack *	GetIdTrack (Int_t id) const
Int_t	GetIndices (TObject *obj, Int_t j, TArrayI &ks) const
Int_t	GetIndices (TObject *obj, TArrayI &js, Int_t k) const
Int_t	GetIndices (TObject *obj, TArrayI &js, TArrayI &ks) const
Int_t	GetIndices (TObject *obj, TString name, TArrayI &ks) const
TObject *	GetLink (Int_t j=1, Int_t k=1) const
TObject *	GetLink (TString name, Int_t k=1) const
Int_t	GetNerrors () const
Int_t	GetNlinks (TObject *obj, TString name) const
Int_t	GetNlinks (TObject *obj=0, Int_t j=0) const
Int_t	GetNsamples () const
virtual Int_t	GetNslots () const
Int_t	GetNtracks (NcTrack *t=0) const
Int_t	GetNvalues () const
Int_t	GetNwaveforms () const
NcSample *	GetSample (Int_t j=1) const
NcSample *	GetSample (TString name) const
Int_t	GetSampleIndex (TString name) const
virtual Float_t	GetSignal (Int_t j=1, Int_t mode=0) const
virtual Float_t	GetSignal (TString name, Int_t mode=0) const
virtual Float_t	GetSignalError (Int_t j=1) const
virtual Float_t	GetSignalError (TString name) const
Int_t	GetSignalFlag (Int_t j=1) const
Int_t	GetSignalFlag (TString name) const
Int_t	GetSwapMode () const
NcTrack *	GetTrack (Int_t j) const
TH1F *	GetWaveform (Int_t j=1) const
TH1F *	GetWaveform (TString name) const
Int_t	GetWaveformIndex (TString name) const
virtual void	List (Int_t j=0) const
virtual void	List (TString name) const
void	ListSample (Int_t j=0) const
void	ListTrack (Int_t j=0) const
void	ListWaveform (Int_t j=0) const
void	RemoveTrack (NcTrack &t, Int_t mode=1)
void	RemoveTracks (Int_t mode=1)
void	ResetLink (Int_t j=1, Int_t k=1)
void	ResetLink (TString name, Int_t k=1)
void	ResetLinks (TObject *obj, Int_t j=0, Int_t k=0)
void	ResetLinks (TObject *obj, TString name, Int_t k=0)
void	ResetSample (Int_t j=1)
void	ResetSample (TString name)
virtual void	ResetSignals (Int_t mode=0)
void	ResetWaveform (Int_t j=1)
void	ResetWaveform (TString name)
void	SetDevice (NcDevice *dev)
void	SetLink (TObject *obj, Int_t j=1, Int_t k=1)
void	SetLink (TObject *obj, TString name, Int_t k=1)
void	SetSample (NcSample *sample, Int_t j=1)
virtual void	SetSignal (Double_t sig, Int_t j=1)
virtual void	SetSignal (Double_t sig, TString name)
virtual void	SetSignalError (Double_t dsig, Int_t j=1)
virtual void	SetSignalError (Double_t dsig, TString name)
void	SetSwapMode (Int_t swap=1)
void	SetWaveform (TH1F *waveform, Int_t j=1)
Public Member Functions inherited from NcPosition
	NcPosition ()
	NcPosition (const NcPosition &p)
virtual	~NcPosition ()
Double_t	GetDistance (NcPosition &p, Float_t scale=-1)
Double_t	GetDistance (NcPosition *p, Float_t scale=-1)
NcPosition &	GetPosition ()
void	GetPosition (Double_t *r, TString f, TString u="rad", Float_t s=-1) const
void	GetPosition (Float_t *r, TString f, TString u="rad", Float_t s=-1) const
void	GetPositionErrors (Double_t *e, TString f, TString u="rad", Float_t s=-1) const
void	GetPositionErrors (Float_t *e, TString f, TString u="rad", Float_t s=-1) const
NcTimestamp *	GetTimestamp ()
Float_t	GetUnitScale () const
void	RemoveTimestamp ()
void	ResetPosition ()
void	SetPosition (Double_t *r, TString f, TString u="rad")
void	SetPosition (Double_t r1, Double_t r2, Double_t r3, TString f, TString u="rad")
void	SetPosition (Float_t *r, TString f, TString u="rad")
void	SetPosition (Nc3Vector &r)
void	SetPositionErrors (Double_t *e, TString f, TString u="rad")
void	SetPositionErrors (Double_t e1, Double_t e2, Double_t e3, TString f, TString u="rad")
void	SetPositionErrors (Float_t *e, TString f, TString u="rad")
void	SetTimestamp (NcTimestamp &t)
void	SetUnitScale (Float_t s)
Public Member Functions inherited from Nc3Vector
	Nc3Vector ()
	Nc3Vector (const Nc3Vector &v)
virtual	~Nc3Vector ()
Double_t	ConvertAngle (Double_t a, TString in, TString out) const
Nc3Vector	Cross (Nc3Vector &q) const
Double_t	Dot (Nc3Vector &q)
void	GetErrors (Double_t *e, TString f, TString u="rad") const
void	GetErrors (Float_t *e, TString f, TString u="rad") const
Double_t	GetNorm ()
virtual Double_t	GetOpeningAngle (Nc3Vector &q, TString u="rad")
Nc3Vector	GetPrimed (TRotMatrix *m) const
Double_t	GetPseudoRapidity ()
Double_t	GetResultError () const
Nc3Vector	GetUnprimed (TRotMatrix *m) const
Nc3Vector	GetVecLong () const
void	GetVector (Double_t *v, TString f, TString u="rad") const
void	GetVector (Float_t *v, TString f, TString u="rad") const
Nc3Vector	GetVecTrans () const
Double_t	GetX (Int_t i, TString f, TString u="rad")
Int_t	HasErrors () const
Int_t	HasVector () const
virtual void	Load (Nc3Vector &q)
Nc3Vector	operator* (Double_t s) const
Nc3Vector &	operator*= (Double_t s)
Nc3Vector	operator+ (Nc3Vector &q) const
Nc3Vector &	operator+= (Nc3Vector &q)
Nc3Vector	operator- (Nc3Vector &q) const
Nc3Vector &	operator-= (Nc3Vector &q)
Nc3Vector	operator/ (Double_t s) const
Nc3Vector &	operator/= (Double_t s)
Nc3Vector &	operator= (const Nc3Vector &q)
void	PrintAngle (Double_t a, TString in, TString out, Int_t ndig=1, Bool_t align=kFALSE) const
void	SetErrors (Double_t *e, TString f, TString u="rad")
void	SetErrors (Double_t e1, Double_t e2, Double_t e3, TString f, TString u="rad")
void	SetErrors (Float_t *e, TString f, TString u="rad")
void	SetVector (Double_t *v, TString f, TString u="rad")
void	SetVector (Double_t v1, Double_t v2, Double_t v3, TString f, TString u="rad")
void	SetVector (Float_t *v, TString f, TString u="rad")
virtual void	SetZero ()
Public Member Functions inherited from NcAttrib
	NcAttrib ()
	NcAttrib (const NcAttrib &a)
virtual	~NcAttrib ()
void	AddNamedSlot (TString s)
void	DecreaseEdgeValue (Int_t j=1)
void	DecreaseEdgeValue (TString name)
void	DeleteCalibrations (Int_t mode=0)
TF1 *	GetCalFunction (Int_t j=1) const
TF1 *	GetCalFunction (TString name) const
Int_t	GetCalWord (Int_t j=1) const
Int_t	GetCalWord (TString name) const
Int_t	GetDeadValue (Int_t j=1) const
Int_t	GetDeadValue (TString name) const
TF1 *	GetDecalFunction (Int_t j=1) const
TF1 *	GetDecalFunction (TString name) const
Int_t	GetEdgeValue (Int_t j=1) const
Int_t	GetEdgeValue (TString name) const
Float_t	GetGain (Int_t j=1) const
Float_t	GetGain (TString name) const
Int_t	GetGainFlag (Int_t j=1) const
Int_t	GetGainFlag (TString name) const
Int_t	GetLockValue (Int_t j=1) const
Int_t	GetLockValue (TString name) const
Int_t	GetNcalflags () const
Int_t	GetNcalfuncs () const
Int_t	GetNdecalfuncs () const
Int_t	GetNgains () const
Int_t	GetNnames () const
Int_t	GetNoffsets () const
Float_t	GetOffset (Int_t j=1) const
Float_t	GetOffset (TString name) const
Int_t	GetOffsetFlag (Int_t j=1) const
Int_t	GetOffsetFlag (TString name) const
Int_t	GetSlotIndex (TString name, Int_t opt=0) const
TString	GetSlotName (Int_t j=1) const
void	IncreaseEdgeValue (Int_t j=1)
void	IncreaseEdgeValue (TString name)
virtual void	Load (NcAttrib &a, Int_t j=0)
virtual void	Load (NcAttrib &a, TString name)
void	Lock (Int_t j=1)
void	Lock (TString name)
void	ResetGain (Int_t j=1)
void	ResetGain (TString name)
void	ResetOffset (Int_t j=1)
void	ResetOffset (TString name)
void	SetAlive (Int_t j=1)
void	SetAlive (TString name)
void	SetCalFunction (TF1 *f, Int_t j=1)
void	SetCalFunction (TF1 *f, TString name)
void	SetDead (Int_t j=1)
void	SetDead (TString name)
void	SetDecalFunction (TF1 *f, Int_t j=1)
void	SetDecalFunction (TF1 *f, TString name)
void	SetEdgeOff (Int_t j=1)
void	SetEdgeOff (TString name)
void	SetEdgeOn (Int_t j=1)
void	SetEdgeOn (TString name)
void	SetEdgeValue (Int_t val, Int_t j=1)
void	SetEdgeValue (Int_t val, TString name)
void	SetGain (Double_t gain, Int_t j=1)
void	SetGain (Double_t gain, TString name)
void	SetOffset (Double_t off, Int_t j=1)
void	SetOffset (Double_t off, TString name)
void	SetSlotName (TString s, Int_t j=1)
void	Unlock (Int_t j=1)
void	Unlock (TString name)

Protected Member Functions
void	LoadDevices (TString classname, Bool_t follow, TObjArray *hits=0, NcDetectorUnit *unit=0)
void	LoadHits (TString classname, Bool_t follow, Bool_t inc, TObjArray *hits=0, NcDetectorUnit *unit=0)
void	ShowDevicesTree (TString classname, Int_t mode=1, NcDetectorUnit *unit=0)
Protected Member Functions inherited from NcSignal
void	SetSigFlags (Int_t is, Int_t ie, Int_t j)
Protected Member Functions inherited from NcAttrib
void	SetCalFlags (Int_t gf, Int_t of, Int_t j)

Protected Attributes
Int_t	fDevCopy
TObjArray *	fDevices
TObjArray *	fDevs
	! Temp. array to hold references to user selected devices
TObject *	fDisplay
	! Temp. pointer to hold objects which serve event displays
TObjArray *	fOrdered
	! Temp. array to hold references to various ordered objects
TObjArray *	fThits
	! Temp. array to hold references to the registered NcDevice hits
Protected Attributes inherited from NcDevice
Int_t	fHitCopy
TObjArray *	fHits
TObjArray *	fMarkers
	! Temp. array to hold the 3D markers for the hit display
TObjArray *	fOrdered
	! Temp. array to hold the ordered hits
Int_t	fStatus
Protected Attributes inherited from NcSignal
TObject *	fDevice
TArrayF *	fDsignals
NcObjMatrix *	fLinks
TObjArray *	fSamples
TArrayI *	fSigflags
TArrayF *	fSignals
TObjArray *	fTracks
TObjArray *	fWaveforms
Protected Attributes inherited from NcPosition
Float_t	fScale
NcTimestamp *	fTstamp
Protected Attributes inherited from Nc3Vector
Double32_t	fDresult
	! Error on scalar result (e.g. norm or dotproduct)
Int_t	fNv
Double32_t *	fV
Protected Attributes inherited from NcAttrib
TArrayI *	fCalflags
TObjArray *	fCalfuncs
TObjArray *	fDecalfuncs
TArrayF *	fGains
TObjArray *	fNames
TArrayF *	fOffsets

Additional Inherited Members
Public Attributes inherited from NcSignal
Bool_t	fDevset

Constructor & Destructor Documentation

NcDetectorUnit() [1/2]

NcDetectorUnit::NcDetectorUnit	(	const char *	name = "",
		const char *	title = "" )

// Default constructor.
//
// By default NO private copies will be made of the added devices.
// See the memberfunction SetDevCopy() to change this.

Definition at line 102 of file NcDetectorUnit.cxx.

~NcDetectorUnit()

NcDetectorUnit::~NcDetectorUnit ( )

virtual

// Default destructor.

Definition at line 121 of file NcDetectorUnit.cxx.

NcDetectorUnit() [2/2]

NcDetectorUnit::NcDetectorUnit

(

const NcDetectorUnit &

q

)

// Copy constructor.

Definition at line 156 of file NcDetectorUnit.cxx.

Member Function Documentation

AddDevice() [1/2]

void NcDetectorUnit::AddDevice

(

NcDevice &

d

)

// Add a device to the detector unit.
//
// Note :
// In case a private copy is made, this is performed via the Clone() memberfunction.
// All devices (i.e. classes derived from TObject) have the default TObject::Clone()
// memberfunction.
// However, devices generally contain an internal (signal) data structure
// which may include pointers to other objects. Therefore it is recommended to provide
// for all devices a specific copy constructor and override the default Clone()
// memberfunction using this copy constructor.
// An example for this may be seen from NcCalorimeter.

Definition at line 337 of file NcDetectorUnit.cxx.

AddDevice() [2/2]

void NcDetectorUnit::AddDevice ( NcDevice * d )

inline

Definition at line 30 of file NcDetectorUnit.h.

Clone()

TObject * NcDetectorUnit::Clone ( const char * name = "" ) const

virtual

// Make a deep copy of the current object and provide the pointer to the copy.
// This memberfunction enables automatic creation of new objects of the
// correct type depending on the object type, a feature which may be very useful
// for containers like NcEvent when adding objects in case the
// container owns the objects. This feature allows e.g. NcEvent to store
// either NcDetectorUnit objects or objects derived from NcDetectorUnit
// via tha AddDevice memberfunction, provided these derived classes also have
// a proper Clone memberfunction.

Reimplemented from NcDevice.

Reimplemented in NcDetector, RnoDetector, RnoStation, and RnoString.

Definition at line 2069 of file NcDetectorUnit.cxx.

Data() [1/2]

void NcDetectorUnit::Data ( TString f = "car", TString u = "rad" )

virtual

// Provide detector unit information within the coordinate frame f.
//
// The string argument "u" allows to choose between different angular units
// in case e.g. a spherical frame is selected.
// u = "rad" : angles provided in radians
//     "deg" : angles provided in degrees
//
// The defaults are f="car" and u="rad".

Definition at line 840 of file NcDetectorUnit.cxx.

Data() [2/2]

void NcDevice::Data ( TString f = "car", TString u = "rad" ) const

virtual

// Print the device and all registered hit info according to the specified
// coordinate frame f.
//
// The string argument "u" allows to choose between different angular units
// in case e.g. a spherical frame is selected.
// u = "rad" : angles provided in radians
//     "deg" : angles provided in degrees
//
// The defaults are f="car" and u="rad".

Reimplemented from NcDevice.

Definition at line 39 of file NcDevice.cxx.

DisplayHits() [1/2]

void NcDetectorUnit::DisplayHits	(	TString	classname,
		Bool_t	follow,
		Bool_t	inc,
		Int_t	idx = 1,
		Float_t	scale = -1,
		Int_t	dp = 0,
		Int_t	mode = 1,
		Int_t	mcol = 4 )

// 3D color display of the various hits registered to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// follow = kTRUE  ==> Search all hits related this NcDetectorUnit at any level
//          kFALSE ==> Only search the hits directly linked to this NcDetectorUnit
//
// inc = kFALSE --> Do NOT include the hits stored in the NcDetectorUnit itself
//       kTRUE  --> Include the hits stored in the NcDetectorUnit itself
//                  if it satisfies the specified device class.
//
// The user can specify the index (default=1) of the signal slot to perform the display for.
// The marker size will indicate the absolute value of the signal (specified by the slotindex)
// as a percentage of the input argument "scale".
// In case scale<0 the maximum absolute signal value encountered in the hit array will be used
// to define the 100% scale. The default is scale=-1.
// In case dp=1 the owning device position will be used, otherwise the hit position will
// be used in the display. The default is dp=0.
// Via the "mcol" argument the user can specify the marker color (see TAttMarker).
// The default is mcol=4 (blue).
// Signals which were declared as "Dead" will not be displayed.
// The gain etc... corrected signals will be used to determine the marker size.
// The gain correction is performed according to "mode" argument. The definition of this
// "mode" parameter corresponds to the description provided in the GetSignal
// memberfunction of class NcSignal.
// The default is mode=1 (for backward compatibility reasons).
//
// For more extended functionality see class NcDevice.
//
// Note :
// ------
// Before any display activity, a TCanvas and a TView have to be initiated
// first by the user like for instance
//
// TCanvas* c1=new TCanvas("c1","c1");
// TView* view=new TView(1);
// view->SetRange(-1000,-1000,-1000,1000,1000,1000);
// view->ShowAxis();

Definition at line 1408 of file NcDetectorUnit.cxx.

DisplayHits() [2/2]

void NcDetectorUnit::DisplayHits	(	TString	classname,
		Bool_t	follow,
		Bool_t	inc,
		TString	name,
		Float_t	scale = -1,
		Int_t	dp = 0,
		Int_t	mode = 1,
		Int_t	mcol = 4 )

// 3D color display of the various hits registered to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// follow = kTRUE  ==> Search all hits related this NcDetectorUnit at any level
//          kFALSE ==> Only search the hits directly linked to this NcDetectorUnit
//
// inc = kFALSE --> Do NOT include the hits stored in the NcDetectorUnit itself
//       kTRUE  --> Include the hits stored in the NcDetectorUnit itself
//                  if it satisfies the specified device class.
//
// The user can specify the name of the signal slot to perform the display for.
// The marker size will indicate the absolute value of the signal (specified by the slotname)
// as a percentage of the input argument "scale".
// In case scale<0 the maximum absolute signal value encountered in the hit array will be used
// to define the 100% scale. The default is scale=-1.
// In case dp=1 the owning device position will be used, otherwise the hit position will
// be used in the display. The default is dp=0.
// The marker size will indicate the percentage of the maximum encountered value
// of the absolute value of the name-specified input signal slots.
// Via the "mcol" argument the user can specify the marker color (see TAttMarker).
// The default is mcol=4 (blue).
// Signals which were declared as "Dead" will not be displayed.
// The gain etc... corrected signals will be used to determine the marker size.
// The gain correction is performed according to "mode" argument. The definition of this
// "mode" parameter corresponds to the description provided in the GetSignal
// memberfunction of class NcSignal.
// The default is mode=1 (for backward compatibility reasons).
//
// For more extended functionality see class NcDevice.
//
// Note :
// ------
// Before any display activity, a TCanvas and a TView have to be initiated
// first by the user like for instance
//
// TCanvas* c1=new TCanvas("c1","c1");
// TView* view=new TView(1);
// view->SetRange(-1000,-1000,-1000,1000,1000,1000);
// view->ShowAxis();

Definition at line 1470 of file NcDetectorUnit.cxx.

GetDetectorUnit()

NcDetectorUnit * NcDetectorUnit::GetDetectorUnit	(	TString	name,
		Bool_t	follow )

// Return the detector unit with name tag "name".
//
// follow = kTRUE  ==> Search all detector units related this NcDetectorUnit at any level
//          kFALSE ==> Only search the detector units directly linked to this NcDetectorUnit

Definition at line 710 of file NcDetectorUnit.cxx.

GetDevCopy()

Int_t NcDetectorUnit::GetDevCopy

(

)

const

// Provide value of the DevCopy mode.
// 0 ==> No private copies are made; pointers of original devices are stored.
// 1 ==> Private copies of the devices are made and these pointers are stored.
//
// Note :
// In case a private copy is made, this is performed via the Clone() memberfunction.
// All devices (i.e. classes derived from TObject) have the default TObject::Clone()
// memberfunction.
// However, devices generally contain an internal (signal) data structure
// which may include pointers to other objects. Therefore it is recommended to provide
// for all devices a specific copy constructor and override the default Clone()
// memberfunction using this copy constructor.
// An example for this may be seen from NcCalorimeter.

Definition at line 241 of file NcDetectorUnit.cxx.

GetDevice() [1/2]

NcDevice * NcDetectorUnit::GetDevice

(

Int_t

i

)

const

// Return the i-th device of this detector unit.
// The first device corresponds to i=1.

Definition at line 495 of file NcDetectorUnit.cxx.

GetDevice() [2/2]

NcDevice * NcDetectorUnit::GetDevice	(	TString	name,
		Bool_t	follow )

// Return the device with name tag "name".
//
// follow = kTRUE  ==> Search all devices related this NcDetectorUnit at any level
//          kFALSE ==> Only search the devices directly linked to this NcDetectorUnit

Definition at line 524 of file NcDetectorUnit.cxx.

GetDevices()

TObjArray * NcDetectorUnit::GetDevices	(	TString	classname,
		Bool_t	follow,
		TObjArray *	devices = 0 )

// Provide the references to the various devices derived from the specified class.
// For classname="*", no selection on the device class will be performed.
//
// follow = kTRUE  ==> Search all devices related this NcDetectorUnit at any level
//          kFALSE ==> Only search the devices directly linked to this NcDetectorUnit
//
// Note :
// ------
// In case devices=0 the selected device pointers are returned via a multi-purpose array,
// which will be overwritten by subsequent selections.
// It is recommended to provide a user defined array via the argument "devices" in order to
// omit the danger of overwriting the selection and to allow to use the selected device list
// amongst other selections.
// In case a user defined array "devices" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is devices=0.

Definition at line 652 of file NcDetectorUnit.cxx.

GetHitsDevices()

TObjArray * NcDetectorUnit::GetHitsDevices	(	TString	classname,
		Bool_t	follow,
		Bool_t	inc,
		TObjArray *	hits = 0,
		TString	name = "none",
		Int_t	mode = 0,
		Int_t	opt = 0 )

// Provide the references to all the hits registered to the device (or derived) class
// as specified by the input argument "classname".
// The specified device class has to be derived from NcDevice.
// For classname="*", no selection on the device class will be performed.
//
// follow = kTRUE  ==> Search all hits related this NcDetectorUnit at any level
//          kFALSE ==> Only search the hits directly linked to this NcDetectorUnit
//
// inc  = kFALSE --> Do NOT include the hits stored in the NcDetectorUnit itself
//        kTRUE  --> Include the hits stored in the NcDetectorUnit itself
//                   if it satisfies the specified device class.
//
// It is possible to indicate with the argument "classname" a specific
// device instead of a whole class of devices. However, in such a case
// it is more efficient to use the GetDevice() memberfunction directly.
//
// The argument "hits" may be used to retreive the required hit pointers.
// In case hits=0 the selected hit pointers are returned via a multi-purpose array,
// which will be overwritten by subsequent selections.
// It is recommended to provide a user defined array via the argument "hits"
// to omit the danger of overwriting the selection and to allow to use the selected hit list
// amongst other selections.
//
// The input arguments "inc", "name", "mode" and "opt" allow for further selection criteria
// as indicated below.
//
// name : The user provided hit or signal slot name to be used for the hit selection.
//        If name="none", no selections will be made on the name matching.
//
// mode = 0 --> Hits with a matching hit name will be selected
//        1 --> Hits with a matching signal slot name will be selected
//        2 --> Hits matching in either hit name or signal slot name will be selected
//       -1 --> Hits with NO matching hit name will be selected
//       -2 --> Hits with NO matching signal slot name will be selected
//       -3 --> Hits with NO matching hit name nor signal slot name will be selected
//
// opt = 0 --> The specified name has to match exactly the hit or slotname
//       1 --> The specified name string has to be contained in the hit or slotname
//
// The defaults are : hits=0, name="none", mode=0 and opt=0.

Definition at line 1098 of file NcDetectorUnit.cxx.

GetIdDetectorUnit() [1/2]

NcDetectorUnit * NcDetectorUnit::GetIdDetectorUnit	(	Int_t	id,
		Bool_t	follow,
		TObjArray *	devs = 0 )

// Return the detector unit with identifier "id" from the specified array "devs".
// In case devs=0 (which is the default) the devices stored in the current detector unit
// structure will be evaluated.
//
// follow = kTRUE  ==> Search all devices related this NcDetectorUnit at any level
//          kFALSE ==> Only search the devices directly linked to this NcDetectorUnit
//
// Note : In case of multiple occurrences of identifier "id", the first
//        encountered matching device will be returned.

Definition at line 746 of file NcDetectorUnit.cxx.

GetIdDetectorUnit() [2/2]

NcDetectorUnit * NcDetectorUnit::GetIdDetectorUnit	(	Int_t	id,
		TString	classname,
		Bool_t	follow )

// Return the detector unit with identifier "id" of the specified class.
// For classname="*", no selection on the detector unit class will be performed.
//
// follow = kTRUE  ==> Search all devices related this NcDetectorUnit at any level
//          kFALSE ==> Only search the devices directly linked to this NcDetectorUnit
//
// Note : In case of multiple occurrences of identifier "id", the first
//        encountered matching detector unit will be returned.

Definition at line 798 of file NcDetectorUnit.cxx.

GetIdDevice() [1/2]

NcDevice * NcDetectorUnit::GetIdDevice	(	Int_t	id,
		Bool_t	follow,
		TObjArray *	devs = 0 )

// Return the NcDevice with identifier "id" from the specified array "devs".
// In case devs=0 (which is the default) the devices stored in the detector unit
// structure will be evaluated.
//
// follow = kTRUE  ==> Search all devices related this NcDetectorUnit at any level
//          kFALSE ==> Only search the devices directly linked to this NcDetectorUnit
//
// Note : In case of multiple occurrences of identifier "id", the first
//        encountered matching device will be returned.

Definition at line 559 of file NcDetectorUnit.cxx.

GetIdDevice() [2/2]

NcDevice * NcDetectorUnit::GetIdDevice	(	Int_t	id,
		TString	classname,
		Bool_t	follow )

// Return the device with identifier "id" of the specified class.
// For classname="*", no selection on the device class will be performed.
//
// follow = kTRUE  ==> Search all devices related this NcDetectorUnit at any level
//          kFALSE ==> Only search the devices directly linked to this NcDetectorUnit
//
// Note : In case of multiple occurrences of identifier "id", the first
//        encountered matching device will be returned.

Definition at line 611 of file NcDetectorUnit.cxx.

GetIdHit()

NcSignal * NcDetectorUnit::GetIdHit	(	Int_t	id,
		TString	classname,
		Bool_t	follow,
		Bool_t	inc )

// Return the hit with unique identifier "id" for the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// follow = kTRUE  ==> Search all hits related this NcDetectorUnit at any level
//          kFALSE ==> Only search the hits directly linked to this NcDetectorUnit
//
// inc = kFALSE --> Do NOT include the hits stored in the NcDetectorUnit itself
//       kTRUE  --> Include the hits stored in the NcDetectorUnit itself
//                  if it satisfies the specified device class.

Definition at line 1168 of file NcDetectorUnit.cxx.

GetNdevices() [1/2]

Int_t NcDetectorUnit::GetNdevices

(

Bool_t

follow

)

// Provide the number of stored devices.
//
// follow = kTRUE  ==> Count the number of all devices related this NcDetectorUnit at any level
//          kFALSE ==> Only count the number of devices directly linked to this NcDetectorUnit

Definition at line 390 of file NcDetectorUnit.cxx.

GetNdevices() [2/2]

Int_t NcDetectorUnit::GetNdevices	(	TString	classname,
		Bool_t	follow,
		TObjArray *	hits = 0 )

// Provide the number of devices of the specified class.
// For classname="*", no selection on the device class will be performed.
//
// follow = kTRUE  ==> Count the number of all devices related this NcDetectorUnit at any level
//          kFALSE ==> Only count the number of devices directly linked to this NcDetectorUnit
//
// In case an array "hits" is provided, the contents of the provided
// hit array are used to determine the number of different devices of the
// specified class to which the hits belong.
// Note that identification of the different hit parent devices only works
// for devices that have been given a unique identifier.
// In case no hit array is provided, just the number of stored devices of the
// specified class is returned.
//
// By default hits=0.

Definition at line 417 of file NcDetectorUnit.cxx.

GetNhitsDevices()

Int_t NcDetectorUnit::GetNhitsDevices	(	TString	classname,
		Bool_t	follow,
		Bool_t	inc )

// Provide the number of hits registered to the specified device (or derived) class.
// The specified device class has to be derived from NcDevice.
// For classname="*", no selection on the device class will be performed.
//
// follow = kTRUE  ==> Search all hits related this NcDetectorUnit at any level
//          kFALSE ==> Only search the devices directly linked to this NcDetectorUnit
//
// inc = kFALSE --> Do NOT include the hits stored in the NcDetectorUnit itself
//       kTRUE  --> Include the hits stored in the NcDetectorUnit itself
//                  if it satisfies the specified device class.
//
// It is possible to indicate with the argument "classname" a specific
// device instead of a whole class of devices. However, in such a case
// it is more efficient to use the GetDevice() memberfunction directly.

Definition at line 1069 of file NcDetectorUnit.cxx.

LoadDevices()

void NcDetectorUnit::LoadDevices ( TString classname, Bool_t follow, TObjArray * hits = 0, NcDetectorUnit * unit = 0 )

protected

// Internal memberfunction to load the references to the various devices derived from the specified device class.
// The specified device class has to be derived from NcDevice.
// For classname="*", no selection on the device class will be performed.
//
// follow = kTRUE  ==> Load all devices related this NcDetectorUnit at any level
//          kFALSE ==> Only load the devices directly linked to this NcDetectorUnit
//
// This memberfunction is invoked recursively to access also the device data of stored NcDetectorUnit objects (if any).
//
// Note :
// ------
// In case devs=0 the selected device pointers are returned via a multi-purpose array,
// which will be overwritten by subsequent selections.
// It is recommended to provide a user defined array via the argument "devs"
// to omit the danger of overwriting the selection and to allow to use the selected hit list
// amongst other selections.
//
// The default are devs=0 and unit=0.

Definition at line 1984 of file NcDetectorUnit.cxx.

LoadHits()

void NcDetectorUnit::LoadHits ( TString classname, Bool_t follow, Bool_t inc, TObjArray * hits = 0, NcDetectorUnit * unit = 0 )

protected

// Internal memberfunction to load the references to the various hits registered to the specified device (or derived) class.
// The specified device class has to be derived from NcDevice.
// For classname="*", no selection on the device class will be performed.
//
// follow = kTRUE  ==> Load all hits related to this NcDetectorUnit at any level
//          kFALSE ==> Only load the hits directly linked to this NcDetectorUnit
//
// inc = kFALSE --> Do NOT include the hits stored in the NcDetectorUnit itself
//       kTRUE  --> Include the hits stored in the NcDetectorUnit itself
//                  if it satisfies the specified device class.
//
// This memberfunction is invoked recursively to access also the hit data of stored NcDetectorUnit objects (if any).
//
// Note :
// ------
// In case hits=0 the selected hit pointers are returned via a multi-purpose array,
// which will be overwritten by subsequent selections.
// It is recommended to provide a user defined array via the argument "hits"
// to omit the danger of overwriting the selection and to allow to use the selected hit list
// amongst other selections.
//
// The default are hits=0 and unit=0.

Definition at line 1878 of file NcDetectorUnit.cxx.

RemoveDevice()

void NcDetectorUnit::RemoveDevice

(

NcDevice *

d

)

// Remove the specified device from the detector unit.

Definition at line 372 of file NcDetectorUnit.cxx.

Reset()

void NcDetectorUnit::Reset ( Int_t mode = 0 )

virtual

// Reset registered devices, hits and NcSignal attributes.
// Note : The status word, DevCopy and HitCopy flag are NOT modified.
//        Use SetStatus(), SetDevCopy() and SetHitCopy() to modify these parameters.
// See NcSignal::Reset() for further details.

Reimplemented from NcDevice.

Definition at line 297 of file NcDetectorUnit.cxx.

SetDevCopy()

void NcDetectorUnit::SetDevCopy

(

Int_t

j

)

// (De)activate the creation of private copies of the added devices.
// j=0 ==> No private copies are made; pointers of original devices are stored.
// j=1 ==> Private copies of the devices are made and these pointers are stored.
//
// By default private copies will be made of the added devices.
//
// Notes :
//  In case a private copy is made, this is performed via the Clone() memberfunction.
//  All devices (i.e. classes derived from TObject) have the default TObject::Clone()
//  memberfunction.
//  However, devices generally contain an internal (signal) data structure
//  which may include pointers to other objects. Therefore it is recommended to provide
//  for all devices a specific copy constructor and override the default Clone()
//  memberfunction using this copy constructor.
//  An example for this may be seen from NcCalorimeter.
//
//  Once the storage contains pointer(s) to device(s) one cannot
//  change the DevCopy mode anymore.
//  To change the DevCopy mode for an existing NcDetectorUnit containing
//  devices one first has to invoke Reset().

Definition at line 196 of file NcDetectorUnit.cxx.

SetOwner()

void NcDetectorUnit::SetOwner ( Bool_t own = kTRUE )

virtual

// Set ownership of all added objects.
// The default parameter is own=kTRUE.
//
// Invokation of this memberfunction also sets all the copy modes
// (e.g. HitCopy and DevCopy) according to the value of own.
//
// This function (with own=kTRUE) is particularly useful when reading data
// from a tree/file, since Reset() will then actually remove all the
// added objects from memory irrespective of the copy mode settings
// during the tree/file creation process. In this way it provides a nice way
// of preventing possible memory leaks in the reading/analysis process.
//
// In addition this memberfunction can also be used as a shortcut to set all
// copy modes in one go during a tree/file creation process.
// However, in this case the user has to take care to only set/change the
// ownership (and copy mode) for empty objects (e.g. newly created objects
// or after invokation of the Reset() memberfunction) otherwise it will
// very likely result in inconsistent destructor behaviour.

Reimplemented from NcDevice.

Definition at line 264 of file NcDetectorUnit.cxx.

ShowDevices() [1/2]

void NcDetectorUnit::ShowDevices	(	Int_t	mode = 1,
		Bool_t	header = kTRUE )

// Provide an overview of the available devices.
// The input argument "header" determines whether header info is printed (kTRUE) or not (kFALSE).
//
// The argument mode determines the amount of information as follows :
// mode = 0 ==> Only printout of the number of directly linked devices
//        1 ==> Provide a listing with 1 line of info for each directly linked device
//        2 ==> Provide a listing with 1 line of info for each linked device at any level
//
// The default values are mode=1 and header=kTRUE.

Definition at line 913 of file NcDetectorUnit.cxx.

ShowDevices() [2/2]

void NcDetectorUnit::ShowDevices	(	TString	classname,
		Int_t	mode = 1,
		Bool_t	header = kTRUE )

// Provide an overview of the available devices of the specified (or derived) class.
// For classname="*", no selection on the device class will be performed.
// The input argument "header" determines whether header info is printed (kTRUE) or not (kFALSE).
//
// The argument mode determines the amount of information as follows :
// mode = 0 ==> Only printout of the number of directly linked devices
//        1 ==> Provide a listing with 1 line of info for each directly linked device
//        2 ==> Provide a listing with 1 line of info for each linked device at any level
//
// The default values are mode=1 and header=kTRUE.

Definition at line 932 of file NcDetectorUnit.cxx.

ShowDevicesTree()

void NcDetectorUnit::ShowDevicesTree ( TString classname, Int_t mode = 1, NcDetectorUnit * unit = 0 )

protected

// Internal memberfunction to provide an overview of the available devices of the specified class.
// For classname="*", no selection on the device class will be performed.
//
// The argument mode determines the amount of information as follows :
// mode = 0 ==> Only printout of the number of directly linked devices
//        1 ==> Provide a listing with 1 line of info for each directly linked device
//        2 ==> Provide a listing with 1 line of info for each device at any level
//
// This memberfunction is invoked recursively to access also the devices of stored NcDetectorUnit objects (if any).
//
// The defaults are mode=1 and unit=0.

Definition at line 966 of file NcDetectorUnit.cxx.

ShowHits()

void NcDetectorUnit::ShowHits	(	TString	classname,
		Bool_t	follow,
		Bool_t	inc,
		Int_t	mode = 1,
		TString	f = "car",
		TString	u = "rad" )

// Show all the hits registered to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// follow = kTRUE  ==> Search all hits related this NcDetectorUnit at any level
//          kFALSE ==> Only search the hits directly linked to this NcDetectorUnit
//
// inc  = kFALSE --> Do NOT include the hits stored in the NcDetectorUnit itself
//        kTRUE  --> Include the hits stored in the NcDetectorUnit itself
//                   if it satisfies the specified device class.
//
// mode = 0 ==> Only the number of hits will be provided.
//        1 ==> Full listing of all the hits will be provided.
//        2 ==> Same as mode=1 but with additional location info of the owning device.
//
// The arguments "f" and "u" have the same meaning as in the memberfunction Data().
//
// Default values are mode=1, f="car" and u="rad".
//
// Note : This memberfunction will show hits in printable format.
//        To obtain a graphic hit display please refer to DisplayHits().

Definition at line 1209 of file NcDetectorUnit.cxx.

SortDevices() [1/4]

TObjArray * NcDetectorUnit::SortDevices	(	TObjArray *	hits,
		Int_t	idx = 1,
		Int_t	mode = -1,
		Int_t	mcal = 1,
		Int_t	deadcheck = 1,
		TObjArray *	ordered = 0 )

// Order the references to the various devices based on hit signals contained
// in the input array.
// The ordered array is returned as a TObjArray either via a user provided array "ordered"
// or as a returned pointer.
// A "hit" represents an abstract object which is derived from NcSignal.
// The user can specify the index of the signal slot to perform the sorting on.
// By default the slotindex will be 1.
// Via the "mode" argument the user can specify ordering in decreasing
// order (mode=-1), ordering in increasing order (mode=1) or no ordering (mode=0).
// The latter option provides a means to quickly obtain an ordered devices list
// when the hits in the array were already ordered by the user. In this case
// the input argument "idx" is irrelevant.
// The default is mode=-1.
// The gain etc... corrected signals will be used in the ordering process as
// specified by the "mcal" argument. The definition of this "mcal" parameter
// corresponds to the signal correction mode described in the GetSignal
// memberfunction of class NcSignal.
// The default is mcal=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mcal=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// Note :
// ------
// In case ordered=0 the ordered device pointers are returned via a multi-purpose array,
// which may be overwritten by other memberfunctions (not restricted to device ordering).
// It is recommended to provide a user defined array via the argument "ordered" to omit
// the danger of overwriting (or being overwritten by) other selections and to allow to use
// the ordered device list amongst other selections.
// In case a user defined array "ordered" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is ordered=0.

Definition at line 1772 of file NcDetectorUnit.cxx.

SortDevices() [2/4]

TObjArray * NcDetectorUnit::SortDevices	(	TObjArray *	hits,
		TString	name,
		Int_t	mode = -1,
		Int_t	mcal = 1,
		Int_t	deadcheck = 1,
		TObjArray *	ordered = 0 )

// Order the references to the various devices based on hit signals contained
// in the input array.
// The ordered array is returned as a TObjArray either via a user provided array "ordered"
// or as a returned pointer.
// A "hit" represents an abstract object which is derived from NcSignal.
// The user can specify the name of the signal slot to perform the sorting on.
// In case no matching slotname is found, the signal will be skipped.
// Via the "mode" argument the user can specify ordering in decreasing
// order (mode=-1), ordering in increasing order (mode=1) or no ordering (mode=0).
// The latter option provides a means to quickly obtain an ordered devices list
// when the hits in the array were already ordered by the user. In this case
// the input argument "name" is irrelevant.
// The default is mode=-1.
// The gain etc... corrected signals will be used in the ordering process as
// specified by the "mcal" argument. The definition of this "mcal" parameter
// corresponds to the signal correction mode described in the GetSignal
// memberfunction of class NcSignal.
// The default is mcal=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mcal=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// Note :
// ------
// In case ordered=0 the ordered device pointers are returned via a multi-purpose array,
// which may be overwritten by other memberfunctions (not restricted to device ordering).
// It is recommended to provide a user defined array via the argument "ordered" to omit
// the danger of overwriting (or being overwritten by) other selections and to allow to use
// the ordered device list amongst other selections.
// In case a user defined array "ordered" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is ordered=0.

Definition at line 1666 of file NcDetectorUnit.cxx.

SortDevices() [3/4]

TObjArray * NcDetectorUnit::SortDevices	(	TString	classname,
		Bool_t	follow,
		Bool_t	inc,
		Int_t	idx = 1,
		Int_t	mode = -1,
		Int_t	mcal = 1,
		Int_t	deadcheck = 1,
		TObjArray *	ordered = 0 )

// Order the references to the various devices based on hit signals registered
// to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// follow = kTRUE  ==> Search all hits related this NcDetectorUnit at any level
//          kFALSE ==> Only search the hits directly linked to this NcDetectorUnit
//
// inc = kFALSE --> Do NOT include the hits stored in the NcDetectorUnit itself
//       kTRUE  --> Include the hits stored in the NcDetectorUnit itself
//                  if it satisfies the specified device class.
//
// The ordered array is returned as a TObjArray either via a user provided array "ordered"
// or as a returned pointer.
// A "hit" represents an abstract object which is derived from NcSignal.
// The user can specify the index of the signal slot to perform the sorting on.
// By default the slotindex will be 1.
// Via the "mode" argument the user can specify ordering in decreasing
// order (mode=-1) or ordering in increasing order (mode=1).
// The default is mode=-1.
// The gain etc... corrected signals will be used in the ordering process as
// specified by the "mcal" argument. The definition of this "mcal" parameter
// corresponds to the signal correction mode described in the GetSignal
// memberfunction of class NcSignal.
// The default is mcal=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mcal=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// Note :
// ------
// In case ordered=0 the ordered device pointers are returned via a multi-purpose array,
// which may be overwritten by other memberfunctions (not restricted to device ordering).
// It is recommended to provide a user defined array via the argument "ordered" to omit
// the danger of overwriting (or being overwritten by) other selections and to allow to use
// the ordered device list amongst other selections.
// In case a user defined array "ordered" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is ordered=0.

Definition at line 1599 of file NcDetectorUnit.cxx.

SortDevices() [4/4]

TObjArray * NcDetectorUnit::SortDevices	(	TString	classname,
		Bool_t	follow,
		Bool_t	inc,
		TString	name,
		Int_t	mode = -1,
		Int_t	mcal = 1,
		Int_t	deadcheck = 1,
		TObjArray *	ordered = 0 )

// Order the references to the various devices based on hit signals registered
// to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// follow = kTRUE  ==> Search all hits related this NcDetectorUnit at any level
//          kFALSE ==> Only search the hits directly linked to this NcDetectorUnit
//
// inc = kFALSE --> Do NOT include the hits stored in the NcDetectorUnit itself
//       kTRUE  --> Include the hits stored in the NcDetectorUnit itself
//                  if it satisfies the specified device class.
//
// The ordered array is returned as a TObjArray either via a user provided array "ordered"
// or as a returned pointer.
// A "hit" represents an abstract object which is derived from NcSignal.
// The user can specify the name of the signal slot to perform the sorting on.
// In case no matching slotname is found, the signal will be skipped.
// Via the "mode" argument the user can specify ordering in decreasing
// order (mode=-1) or ordering in increasing order (mode=1).
// The default is mode=-1.
// The gain etc... corrected signals will be used in the ordering process as
// specified by the "mcal" argument. The definition of this "mcal" parameter
// corresponds to the signal correction mode described in the GetSignal
// memberfunction of class NcSignal.
// The default is mcal=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mcal=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// Note :
// ------
// In case ordered=0 the ordered device pointers are returned via a multi-purpose array,
// which may be overwritten by other memberfunctions (not restricted to device ordering).
// It is recommended to provide a user defined array via the argument "ordered" to omit
// the danger of overwriting (or being overwritten by) other selections and to allow to use
// the ordered device list amongst other selections.
// In case a user defined array "ordered" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is ordered=0.

Definition at line 1532 of file NcDetectorUnit.cxx.

SortHits() [1/4]

TObjArray * NcDevice::SortHits	(	Int_t	idx = 1,
		Int_t	mode = -1,
		TObjArray *	hits = 0,
		Int_t	mcal = 1,
		Int_t	deadcheck = 1,
		TObjArray *	ordered = 0 )

// Order the references to an array of hits by looping over the input array "hits"
// and checking the signal value.
// The ordered array is returned as a TObjArray either via a user provided array "ordered"
// or as a returned pointer.
// In case hits=0 (default), the registered hits of the current device are used.
// Note that the original hit array is not modified.
// A "hit" represents an abstract object which is derived from NcSignal.
// The user can specify the index of the signal slot to perform the sorting on.
// By default the slotindex will be 1.
// Via the "mode" argument the user can specify ordering in decreasing
// order (mode=-1) or ordering in increasing order (mode=1).
// The default is mode=-1.
// The gain etc... corrected signals will be used in the ordering process as
// specified by the "mcal" argument. The definition of this "mcal" parameter
// corresponds to the signal correction mode described in the GetSignal
// memberfunction of class NcSignal.
// The default is mcal=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mcal=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// Note :
// ------
// In case ordered=0 the ordered hit pointers are returned via a multi-purpose array,
// which may be overwritten by other memberfunctions (not restricted to hit ordering).
// It is recommended to provide a user defined array via the argument "ordered" to omit
// the danger of overwriting (or being overwritten by) other selections and to allow to use
// the ordered hit list amongst other selections.
// In case a user defined array "ordered" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is ordered=0.

Definition at line 43 of file NcDevice.cxx.

SortHits() [2/4]

TObjArray * NcDetectorUnit::SortHits	(	TString	classname,
		Bool_t	follow,
		Bool_t	inc,
		Int_t	idx = 1,
		Int_t	mode = -1,
		Int_t	mcal = 1,
		Int_t	deadcheck = 1,
		TObjArray *	ordered = 0 )

// Order the references to the various hits registered to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// The ordered array is returned as a TObjArray either via a user provided array "ordered"
// or as a returned pointer.
//
// follow = kTRUE  ==> Search all hits related this NcDetectorUnit at any level
//          kFALSE ==> Only search the hits directly linked to this NcDetectorUnit
//
// inc = kFALSE --> Do NOT include the hits stored in the NcDetectorUnit itself
//       kTRUE  --> Include the hits stored in the NcDetectorUnit itself
//                  if it satisfies the specified device class.
//
// A "hit" represents an abstract object which is derived from NcSignal.
// The user can specify the index of the signal slot to perform the sorting on.
// By default the slotindex will be 1.
// Via the "mode" argument the user can specify ordering in decreasing
// order (mode=-1) or ordering in increasing order (mode=1).
// The default is mode=-1.
// The gain etc... corrected signals will be used in the ordering process as
// specified by the "mcal" argument. The definition of this "mcal" parameter
// corresponds to the signal correction mode described in the GetSignal
// memberfunction of class NcSignal.
// The default is mcal=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mcal=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// Note :
// ------
// In case ordered=0 the ordered hit pointers are returned via a multi-purpose array,
// which may be overwritten by other memberfunctions (not restricted to hit ordering).
// It is recommended to provide a user defined array via the argument "ordered" to omit
// the danger of overwriting (or being overwritten by) other selections and to allow to use
// the ordered hit list amongst other selections.
// In case a user defined array "ordered" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is ordered=0.
//
// For more extended functionality see class NcDevice.

Definition at line 1264 of file NcDetectorUnit.cxx.

SortHits() [3/4]

TObjArray * NcDetectorUnit::SortHits	(	TString	classname,
		Bool_t	follow,
		Bool_t	inc,
		TString	name,
		Int_t	mode = -1,
		Int_t	mcal = 1,
		Int_t	deadcheck = 1,
		TObjArray *	ordered = 0 )

// Order the references to the various hits registered to the specified device (or derived) class.
// For classname="*", no selection on the device class will be performed.
//
// The ordered array is returned as a TObjArray either via a user provided array "ordered"
// or as a returned pointer.
//
// follow = kTRUE  ==> Search all hits related this NcDetectorUnit at any level
//          kFALSE ==> Only search the hits directly linked to this NcDetectorUnit
//
// inc = kFALSE --> Do NOT include the hits stored in the NcDetectorUnit itself
//       kTRUE  --> Include the hits stored in the NcDetectorUnit itself
//                  if it satisfies the specified device class.
//
// A "hit" represents an abstract object which is derived from NcSignal.
// The user can specify the name of the signal slot to perform the sorting on.
// In case no matching slotname is found, the signal will be skipped.
// Via the "mode" argument the user can specify ordering in decreasing
// order (mode=-1) or ordering in increasing order (mode=1).
// The default is mode=-1.
// The gain etc... corrected signals will be used in the ordering process as
// specified by the "mcal" argument. The definition of this "mcal" parameter
// corresponds to the signal correction mode described in the GetSignal
// memberfunction of class NcSignal.
// The default is mcal=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mcal=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// Note :
// ------
// In case ordered=0 the ordered hit pointers are returned via a multi-purpose array,
// which may be overwritten by other memberfunctions (not restricted to hit ordering).
// It is recommended to provide a user defined array via the argument "ordered" to omit
// the danger of overwriting (or being overwritten by) other selections and to allow to use
// the ordered hit list amongst other selections.
// In case a user defined array "ordered" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is ordered=0.
//
// For more extended functionality see class NcDevice.

Definition at line 1336 of file NcDetectorUnit.cxx.

SortHits() [4/4]

TObjArray * NcDevice::SortHits	(	TString	name,
		Int_t	mode = -1,
		TObjArray *	hits = 0,
		Int_t	mcal = 1,
		Int_t	deadcheck = 1,
		TObjArray *	ordered = 0 )

// Order the references to an array of hits by looping over the input array "hits"
// and checking the signal value.
// The ordered array is returned as a TObjArray either via a user provided array "ordered"
// or as a returned pointer.
// In case hits=0 (default), the registered hits of the current device are used.
// Note that the input array is not modified.
// A "hit" represents an abstract object which is derived from NcSignal.
// The user can specify the name of the signal slot to perform the sorting on.
// In case no matching slotname is found, the signal will be skipped.
// Via the "mode" argument the user can specify ordering in decreasing
// order (mode=-1) or ordering in increasing order (mode=1).
// The default is mode=-1.
// The gain etc... corrected signals will be used in the ordering process as
// specified by the "mcal" argument. The definition of this "mcal" parameter
// corresponds to the signal correction mode described in the GetSignal
// memberfunction of class NcSignal.
// The default is mcal=1 (for backward compatibility reasons).
// The argument "deadcheck" allows to reject signals which were declared as "Dead".
// If deadcheck=0 the dead signals will be treated in the same way as the other signals.
// To achieve an identical treatment of dead and alive signals, the setting of deadcheck=0
// will automatically set also mcal=0 to retrieve the stored signal values "as is".
// The default is deadcheck=1 (for backward compatibility reasons).
//
// Note :
// ------
// In case ordered=0 the ordered hit pointers are returned via a multi-purpose array,
// which may be overwritten by other memberfunctions (not restricted to hit ordering).
// It is recommended to provide a user defined array via the argument "ordered" to omit
// the danger of overwriting (or being overwritten by) other selections and to allow to use
// the ordered hit list amongst other selections.
// In case a user defined array "ordered" is provided, this memberfunction returns 0 for the
// return argument.
//
// The default is ordered=0.

Definition at line 42 of file NcDevice.cxx.

Member Data Documentation

fDevCopy

Int_t NcDetectorUnit::fDevCopy

protected

Definition at line 60 of file NcDetectorUnit.h.

fDevices

TObjArray* NcDetectorUnit::fDevices

protected

Definition at line 59 of file NcDetectorUnit.h.

fDevs

TObjArray* NcDetectorUnit::fDevs

protected

! Temp. array to hold references to user selected devices

Definition at line 61 of file NcDetectorUnit.h.

fDisplay

TObject* NcDetectorUnit::fDisplay

protected

! Temp. pointer to hold objects which serve event displays

Definition at line 64 of file NcDetectorUnit.h.

fOrdered

TObjArray* NcDetectorUnit::fOrdered

protected

! Temp. array to hold references to various ordered objects

Definition at line 63 of file NcDetectorUnit.h.

fThits

TObjArray* NcDetectorUnit::fThits

protected

! Temp. array to hold references to the registered NcDevice hits

Definition at line 62 of file NcDetectorUnit.h.

---

The documentation for this class was generated from the following files:

• ncfspack/source/NcDetectorUnit.h
• ncfspack/source/NcDetectorUnit.cxx
