NcJob Class Reference

Base class for top level job in a task based procedure. More...

#include "NcJob.h"

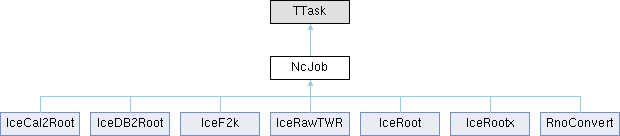

Inheritance diagram for NcJob:

Detailed Description

Base class for top level job in a task based procedure.

---

Copyright(c) 2005 NCFS/IIHE, All Rights Reserved.                           *
                                                                            *
Authors: The Netherlands Center for Fundamental Studies (NCFS).             *
         The Inter-university Institute for High Energies (IIHE).           *
                   Website : http://www.iihe.ac.be                          *
           Contact : Nick van Eijndhoven (nickve.nl@gmail.com)              *
                                                                            *
Contributors are mentioned in the code where appropriate.                   *
                                                                            *
No part of this software may be used, copied, modified or distributed       *
by any means nor transmitted or translated into machine language for        *
commercial purposes without written permission by the IIHE representative.  *
Permission to use the software strictly for non-commercial purposes         *
is hereby granted without fee, provided that the above copyright notice     *
appears in all copies and that both the copyright notice and this           *
permission notice appear in the supporting documentation.                   *
This software is provided "as is" without express or implied warranty.      *
The authors make no claims that this software is free of error, or is       *
consistent with any particular standard of merchantability, or that it      *
will meet your requirements for any particular application, other than      *
indicated in the corresponding documentation.                               *
This software should not be relied on for solving a problem whose           *
incorrect solution could result in injury to a person or loss of property.  *
If you do use this software in such a manner, it is at your own risk.       *
The authors disclaim all liability for direct or consequential damage       *
resulting from your use of this software.                                   *

---

// Class NcJob
// Base class for the top level processor class in a task based procedure.
// It allows stepwise invokation of various sub-tasks by the derived
// (user defined) top level processor, based on looping over a certain
// main object structure (e.g. NcEvent for event-by-event processing).
// The main object structure (if needed) may be specified by the derived
// top level processor class and will be stored automatically in the
// working environment (see below).
//
// However, being designed as a base class for a user defined top level
// processor, this class can also be used as a "hook" to specify
// various sub-tasks in an (interactive) user environment.
// Usage of the memberfunction ProcessObject() allows an (interactive)
// event-by-event processing of the various specified subtasks.
//
// This base class provides a working environment for the derived
// (user defined) processor class and all of its subtasks.
//
// The default working environment consists of :
//
// * An array containing pointers to the objects which are stored
//   via the AddObject() facility of this NcJob class.
//   From this storage the objects can be directly accessed via the
//   GetObject() and GetObjects() memberfunctions.
// * A pointer to the main object structure during job processing.
//   This pointer can be initiated/updated only by the derived top level
//   processor via the SetMainObject() facility but all sub-tasks can access
//   it via the above array facilities or the GetMainObject() memberfunction.
//   The latter provides faster access to the main object structure than
//   the GetObject (search) based procedures.
//
// Optionally one may invoke the MakeFolder() memberfunction or use the
// "mode" argument of ExecuteJob (see below) to provide in addition to the above
// the following job-specific folder structure :
//
// * A folder which may serve as a whiteboard for transferring pointers to
//   objects which are posted there by the top level processor or any
//   of its subtasks.
//   Objects can be posted in the job folder via the AddObject() facility
//   of this NcJob class.
//   Access to the job folder is obtained via the GetFolder() memberfunction
//   and from this the various objects can be accessed via the usual TFolder
//   FindObject and/or iterator facilities.
//
// Notes :
// -------
// 1) This NcJob class is derived from TTask, which implies that every
//    (user defined) top level processor class is itself also a TTask.
//    This allows sub-tasks to be introduced to the top level processor
//    using the standard TTask facilities.
//
// 2) Only references to the various introduced objects are stored.
//    It is the user's responsibility to delete all introduced objects,
//    either in the Exec() or destructor of the derived top level processor class
//    or via Clear() facility as provided by the TTask machinery.
//
// 3) The top level processor instance is entered into the standard ROOT
//    ListOfTasks under the name which was provided by the user in the
//    constructor of the top level processor.
//    The name of the top level processor is passed automatically as the
//    opt argument to the Exec(Option_t* opt) memberfunctions of the
//    various sub-tasks by the ExecuteJob() memberfunction (see below).
//    This allows all sub-tasks to obtain the pointer to the top level
//    processor instance from its name via the statement :
//
//      NcJob* parent=(NcJob*)gROOT->GetListOfTasks()->FindObject(opt)
//
// 4) If selected, the job-specific folder will be created in the generic folder
//    called "NcJob-folders" as a sub-folder under the same name as the one
//    introduced in the constructor of the derived top level processor class.
//    The folder will only be created if the MakeFolder() member function has been
//    invoked or when selected explicitly by the "mode" argument of ExecuteJob().
//    Actual creation of the folder environment (and internal array storage as well)
//    only takes place when the first object is posted via the AddObject()
//    or SetMainObject() facilities.
//
// Execution of the (user defined) top level processor has to be invoked via
// the memberfunction ExecuteJob() of this NcJob base class.
// This will set the default gROOT as the global working directory and then
// invoke the (user written) Exec() memberfunction of the top level
// processor class with as argument the name of the top level processor instance
// as specified by the user in the top level processor constructor.
// This will allow stepwise (e.g. event-by-event) execution of the various sub-tasks.
// In addition the "mode" argument of ExecuteJob() may be used to select/overrule
// creation of the folder environment for the complete job.
// See the docs of ExecuteJob() for further details.
//
// It is the user's responsibility to invoke the sub-tasks via the
// ExecuteTasks() statement at the appropriate location in the top level
// processor class if auto-execution was not explicitly selected via the
// "mode" argument of the ExecuteJob() memberfunction.
//
//--- Author: Nick van Eijndhoven 07-may-2005 Utrecht University
//- Modified: Nick van Eijndhoven, IIHE-VUB, Brussel, January 7, 2022  11:39Z

Definition at line 17 of file NcJob.h.

Public Member Functions
	NcJob (const char *name="NcJob", const char *title="")
virtual	~NcJob ()
void	AddObject (TObject *obj)
void	AddObjects (TObjArray *arr)
void	ExecuteJob (Int_t mode=0)
TFolder *	GetFolder () const
TObject *	GetMainObject () const
TObject *	GetObject (const char *classname) const
TObject *	GetObject (Int_t j) const
TObjArray *	GetObjects () const
TObjArray *	GetObjects (const char *classname)
void	ListEnvironment ()
void	MakeFolder ()
void	ProcessObject (TObject *obj)
void	RemoveObject (TObject *obj)
void	RemoveObjects (const char *classname)

Protected Member Functions
void	SetMainObject (TObject *obj)

Protected Attributes
TFolder *	fFolder
TObject *	fMainObject
Int_t	fMakefolder
TObjArray *	fObjects
TObjArray *	fSelect
	! Temp. array of pointers to user-selected stored objects

Constructor & Destructor Documentation

NcJob()

NcJob::NcJob	(	const char *	name = "NcJob",
		const char *	title = "" )

// Default constructor.
// Initialise the working environment for general data access
// by the derived task and its subtasks.

Definition at line 139 of file NcJob.cxx.

~NcJob()

NcJob::~NcJob ( )

virtual

// Default destructor.
// The internal array and job specific folder (if any) holding the various
// references are deleted.
// Note : The objects belonging to the various pointers in the array/folder
//        and the main processing object are NOT deleted by this base class.

Definition at line 163 of file NcJob.cxx.

Member Function Documentation

AddObject()

void NcJob::AddObject

(

TObject *

obj

)

// Store pointer of specified object in the working environment.

Definition at line 320 of file NcJob.cxx.

AddObjects()

void NcJob::AddObjects

(

TObjArray *

arr

)

// Store pointers of all the array objects individually in the working environment.

Definition at line 366 of file NcJob.cxx.

ExecuteJob()

void NcJob::ExecuteJob

(

Int_t

mode = 0

)

// Invokation of the top level processor via its Exec() memberfunction.
// The input argument "mode" can be used to explicitly specify the
// (de)selection of the folder environment creation and automatic
// invokation of all subtasks after execution of the top level
// Exec() memberfunction.
// The latter is convenient if an NcJob instance is used directly
// by the user (e.g. in a ROOT macro) in order to provide a hook
// for event-by-event processing of various subtasks.
// An even more convenient alternative to achieve this is invokation of the
// memberfunction ProcessObject().
//
// mode = -1 : Explicitly prohibit folder creation for the complete job
//         0 : Folder creation selection steered by MakeFolder()
//         1 : Explicitly select creation of the folder environment
//             for the complete job.
//       -11 : Same as mode=-1 but also auto-execution of subtasks after Exec()
//        10 : Same as mode=0 but also auto-execution of subtasks after Exec()
//        11 : Same as mode=1 but also auto-execution of subtasks after Exec()
//
// The default is mode=0.
//
// Note : Before execution gROOT is set as the global working directory.

Definition at line 226 of file NcJob.cxx.

GetFolder()

TFolder * NcJob::GetFolder

(

)

const

// Provide pointer to the whiteboard folder.

Definition at line 283 of file NcJob.cxx.

GetMainObject()

TObject * NcJob::GetMainObject

(

)

const

// Provide pointer to the main object structure.

Definition at line 294 of file NcJob.cxx.

GetObject() [1/2]

TObject * NcJob::GetObject

(

const char *

classname

)

const

// Provide pointer to the first stored object which inherits from classname.

Definition at line 456 of file NcJob.cxx.

GetObject() [2/2]

TObject * NcJob::GetObject

(

Int_t

j

)

const

// Provide pointer to j-th stored object.
// Note : j=1 indicates the first object.

Definition at line 439 of file NcJob.cxx.

GetObjects() [1/2]

TObjArray * NcJob::GetObjects

(

)

const

// Provide pointers of all the stored objects.

Definition at line 479 of file NcJob.cxx.

GetObjects() [2/2]

TObjArray * NcJob::GetObjects

(

const char *

classname

)

// Provide pointers to all stored objects inheriting from classname.

Definition at line 490 of file NcJob.cxx.

ListEnvironment()

void NcJob::ListEnvironment

(

)

// Provide listing of the job environment.

Definition at line 205 of file NcJob.cxx.

MakeFolder()

void NcJob::MakeFolder

(

)

// Select creation of the folder structure in addition to the internal
// array storage of objects.
// Creation of the folder structure is only activated if it was not
// explicitly forbidden by the specified "mode" on invokation of the
// ExecuteJob() memberfunction.

Definition at line 268 of file NcJob.cxx.

ProcessObject()

void NcJob::ProcessObject

(

TObject *

obj

)

// Invokation of all user defined sub-tasks for the specified object.
// This facility is very convenient when performing a task based
// event-by-event analysis in an (interactive) user application.
//
// Note :
// ------
// Before processing gROOT is set as the global working directory.
// The specified object will be added to the job's object list
// as main object before the processing starts.
// This will allow the various sub-tasks to access the object in the
// usual way.
// After the processing of this object has been performed, the object
// will be removed from the object list and the main object pointer will
// be set to zero.

Definition at line 517 of file NcJob.cxx.

RemoveObject()

void NcJob::RemoveObject

(

TObject *

obj

)

// Remove pointer of specified object from the working environment.
// In case the specified object is also the main object, the main object
// pointer will be set to 0 as well.

Definition at line 384 of file NcJob.cxx.

RemoveObjects()

void NcJob::RemoveObjects

(

const char *

classname

)

// Remove all stored objects inheriting from classname.
// In case one of the removed objects is also the main object, the main object
// pointer will be set to 0 as well.

Definition at line 409 of file NcJob.cxx.

SetMainObject()

void NcJob::SetMainObject ( TObject * obj )

protected

// Store pointer to the main object structure.

Definition at line 305 of file NcJob.cxx.

Member Data Documentation

fFolder

TFolder* NcJob::fFolder

protected

Definition at line 39 of file NcJob.h.

fMainObject

TObject* NcJob::fMainObject

protected

Definition at line 40 of file NcJob.h.

fMakefolder

Int_t NcJob::fMakefolder

protected

Definition at line 38 of file NcJob.h.

fObjects

TObjArray* NcJob::fObjects

protected

Definition at line 41 of file NcJob.h.

fSelect

TObjArray* NcJob::fSelect

protected

! Temp. array of pointers to user-selected stored objects

Definition at line 42 of file NcJob.h.

---

The documentation for this class was generated from the following files:

• ncfspack/source/NcJob.h
• ncfspack/source/NcJob.cxx
